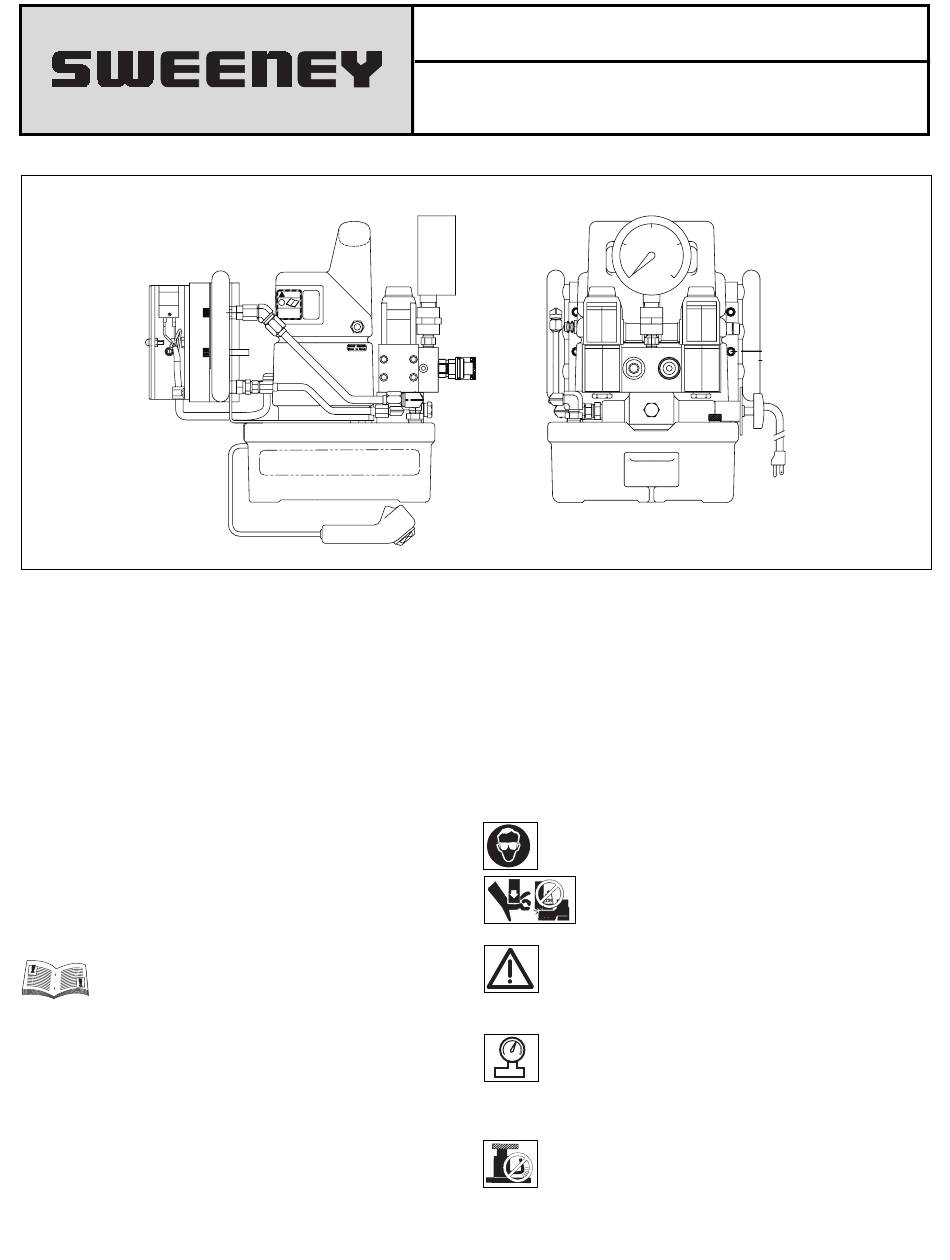

SWEENEY MX1E Instruction Sheet

L2135 Rev. D 04/08
MX1E and MX1E-2 consoles are designed for use with double-acting torque wrenches and remote pendant operation.
Consoles are equipped with glycerine-filled pressure gauges and adjustable pressure relief valves. The heat exchanger
prevents heat buildup, and the time-out circuit stops the motor after 15 seconds of idle running.
1.0 IMPORTANT RECEIVING INSTRUCTIONS
Visually inspect all components for shipping damage.
Shipping damage is not covered by warranty. If shipping
damage is found, notify carrier at once. The carrier is
responsible for all repair and replacement costs resulting
from damage in shipment.
SAFETY FIRST
2.0 SAFETY ISSUES
Read all instructions, warnings, and cautions
carefully.
avoid personal injury or property damage
during system operation. Sweeney cannot be responsible
for damage or injury resulting from unsafe product use,
lack of maintenance or incorrect product and/or system
operation. Contact Sweeney when in doubt as to the
safety precautions and operations. Failure to comply with
the following cautions and warnings could cause
equipment damage and personal injury.
A CAUTION is used to indicate correct operating or
maintenance procedures and practices to prevent
damage to, or destruction of equipment or other property.
WARNING
STOP
TO AVOID INJURY
READ AND UNDERSTAND
ALL INSTRUCTIONS
BEFORE USING
Follow all safety precautions to
Instruction Sheet
MX1E and MX1E-2
Mini Electric Consoles
RSL2
Ft.Lb PSI Ft.Lb PSI
125 1014 400 2921
150 1186 425 3100
175 1364 450 3276
200 1538
475 3448
225 1710 500 3621
250 1883 525 3800
275 2055 550 3972
300 2229 575 4145
325 2407 600 4321
350 2579 625 4497
375 2993 650 4669
Ft.Lb PSI Ft.Lb PSI
675 4848 1050 7476
700 5021 1075 7650
725 5193 1100 7828
750 5372 1125 8000
775 5545 1150 8179
800 5721 1175 8357
825 5897 1200 8531
850 6071
1225 8707
875 6248 1250 8886
900 6421 1275 9062
925 6600 1300 9236
950 6772 1325 9414
975 6950 1350 9593
1000 7124 1375 9766
1025 7300 1400 9943
A WARNING indicates a potential danger that requires
correct procedures or practices to avoid personal injury.
A DANGER is only used when your action or lack of
action may cause serious injury or even death.
WARNING: Wear proper personal protective gear
when operating hydraulic equipment.
DANGER: To avoid personal injury keep hands
and feet away from cylinder and workpiece
during operation.
Never set the relief valve to a higher pressure than
the maximum rated pressure of the pump. Higher
settings may result in equipment damage and/or
personal injury.
WARNING: The system operating pressure must not
exceed the pressure rating of the lowest rated
component in the system. Install pressure gauges in
the system to monitor operating pressure. It is your window
to what is happening in the system.
CAUTION: Avoid damaging hydraulic hose. Avoid
sharp bends and kinks when routing hydraulic
hoses. Using a bent or kinked hose will cause severe
back-pressure. Sharp bends and kinks will internally
damage the hose leading to premature hose failure.
RSL4
Ft.Lb PSI Ft.Lb PSI
200 1016 750 2753
250 1175 800 2911
300 1333 850 3070
350 1491 900 3228
400 1648 950 3384
450 1806 1000 3543
500 1965 1050 3700
550 2122 1100 3857
600 2279 1150 4016
650 2438 1200 4175
700 2597 1250 4331
Ft.Lb PSI Ft.Lb PSI
1300 4489 2050 6857
1350 4648 2100 7016
1400 4806 2150 7175
1450 4962 2200 7331
1500 5121 2250 7489
1550 5279 2300 7650
1600 5438 2350 7806
1650 5594 2400 7962
1700 5752 2450 8121
1750 5911 2500 8279
1800 6069 2650 8752
1850 6225 2700 8909
1900 6384 2850 9384
1950 6543 2900 9541
2000 6700 3000 9847
