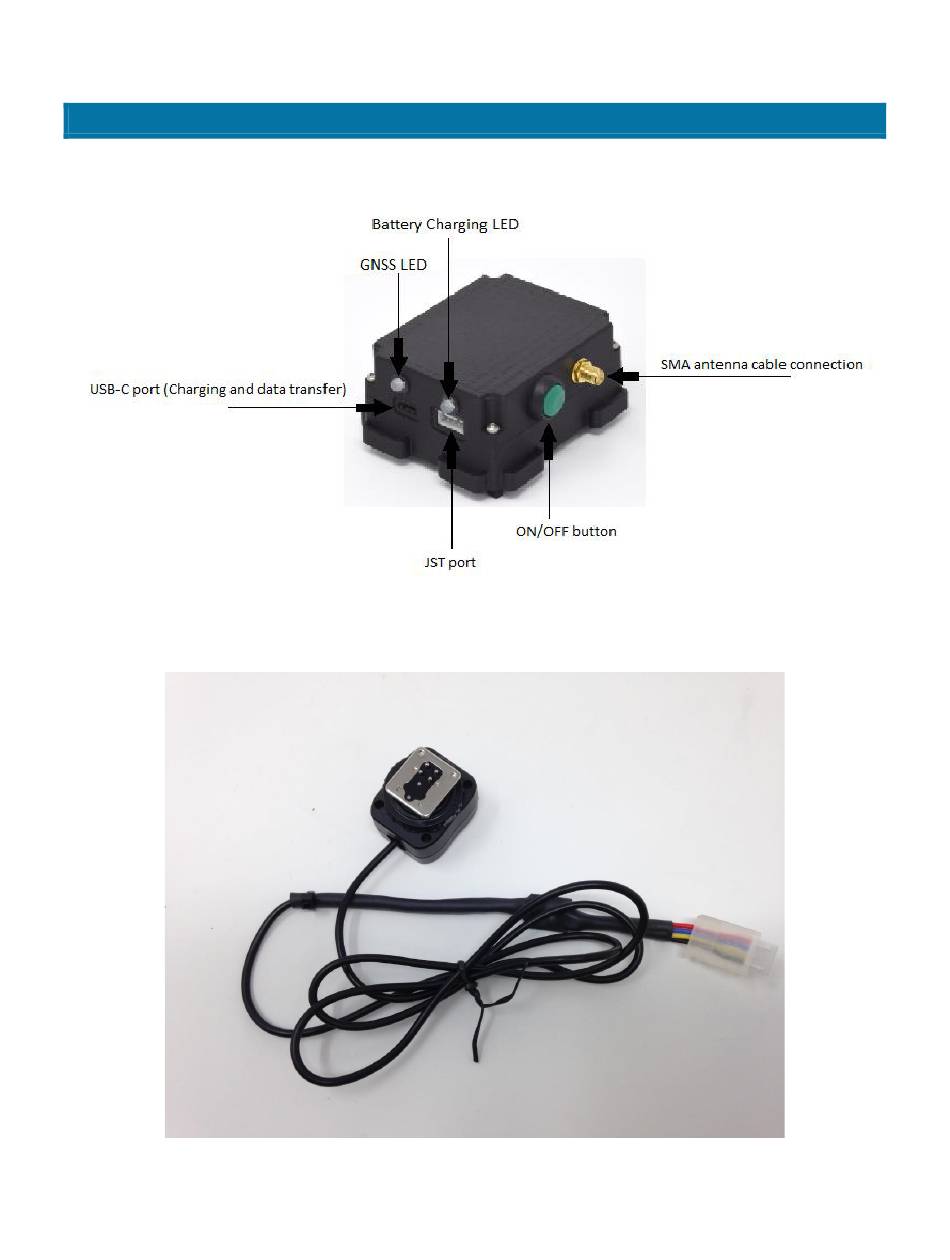

- Page 1 LOKI USERS GUIDE (HOT SHOE) LOKI HARDWARE COMPONENTS Loki Controller Hot shoe cable 1-15-18 Loki Users Guide (Hot Shoe) LokiUGHS-2...
- Page 2 Antenna, spacer, ground plane, screws, and SMA antenna cable Antenna Mount Assembly Loki Users Guide (Hot Shoe) LokiUGHS-2...
- Page 3 Once the Loki controller and antenna assembly are securely mounted to the drone, connect the male end of the SMA cable to the Loki controller. Connect the hot shoe end of the hot shoe cable into the hot shoe on the camera and the other end into the JST port on the Loki controller.
- Page 4 The battery charging LED will turn green when the battery is charged to 80 percent or more battery life. It will stop flashing and remain solid green when the LOKI has been fully charged. Best practice is to charge the Loki completely before the beginning of planned flights.
- Page 5 The charging LED will turn red when the battery level is 30 percent or lower. Once the red-light indicator is observed, it is recommended that the battery be charged to preserve longevity of the battery. Loki Users Guide (Hot Shoe) LokiUGHS-2...
- Page 6 Prior to flying the mission, turn on the DJI drone. The GNSS LED will flash blue-green and then go off. The GNSS LED will reilluminate red and remain that color until sufficient satellites are found. Loki Users Guide (Hot Shoe) LokiUGHS-2...
- Page 7 Once sufficient satellites have been acquired, the GNSS LED will turn solid green. The Loki is now ready to perform the mission. Once the mission is completed, turn the DJI drone off. The Loki will turn off automatically. To download the data, plug the USB cable into the Loki controller and computer.
- Page 8 LOKI EXTERNAL BATTERY You may use an external battery with the Loki system. Below are instructions for usage and links for purchasing the components that we recommend. If you would like to purchase an external battery kit directly from AirGon, please contact the sales department – sales@airgon.com.
- Page 9 Snap the external battery onto the M600 plate. Connect battery to Loki using the provided USB cable. You can keep the battery plugged into the Loki and use the normal Loki workflow. The battery can be used on Loki’s that have been upgraded to firmware 1.5 or newer. Once the external battery has been depleted, Loki will automatically start using the internal battery.
