Summary of Contents for BenchBUD Electric Height Adjustable Workbench

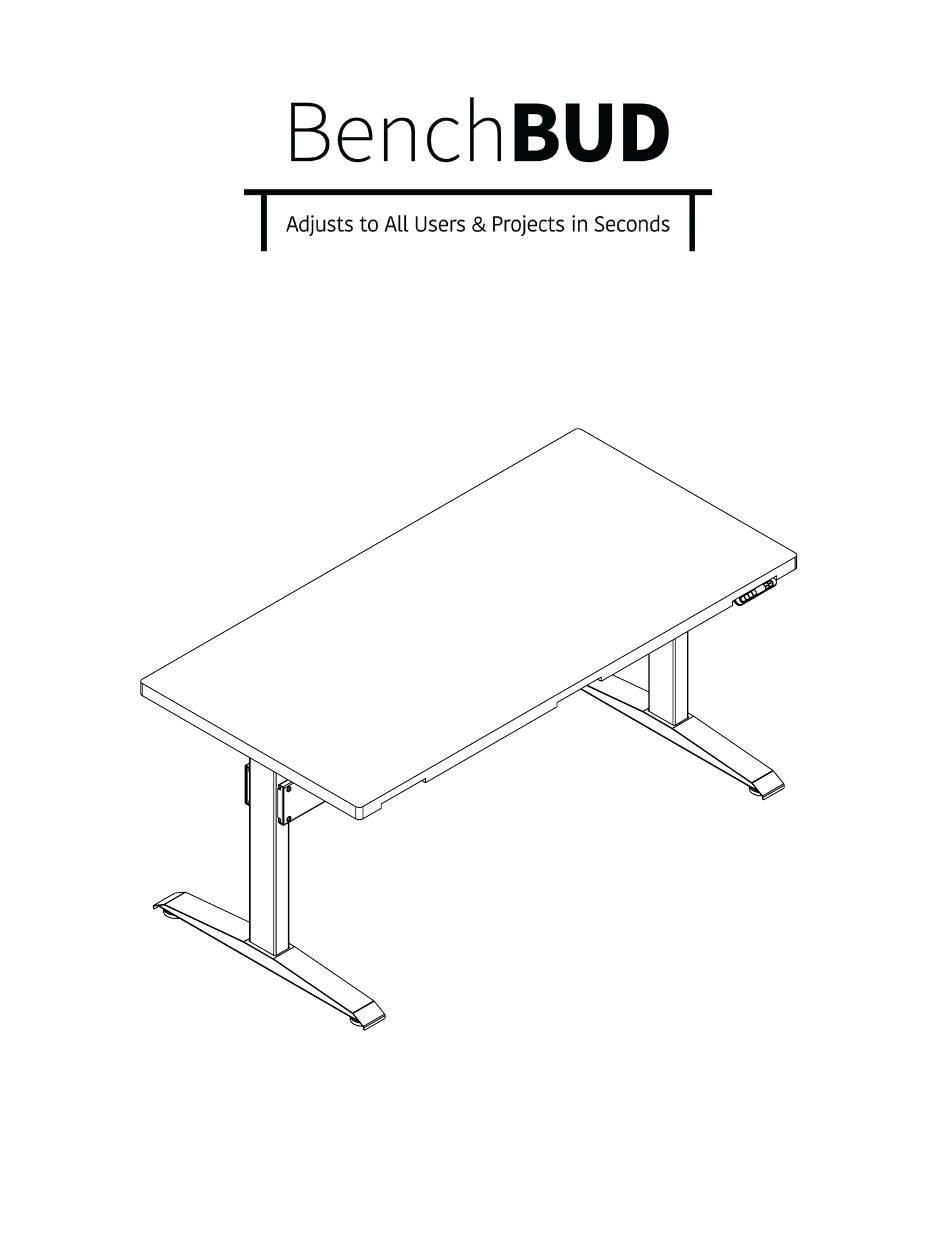

- Page 1 Electric Height Adjustable Workbench Instructions (Base & Worksurface) Warranty: benchbud.com/pages/warranty Instruction #54469 • Dated: 5/24/2021 1 of 12...
- Page 2 Product and its height adjustment mechanism to avoid risk of physical injury or electric shock. KEEP CHILDREN AWAY FROM THE PRODUCT, ITS CONTROL UNITS, AND KEYPADS. K&A Manufacturing • 800.298.4351 • www.benchbud.com 2 of 12...
- Page 3 W. Right Motor x1 Left Leg x1 Right Leg x1 Z. Worksurface x1 (not pictured) Note location of drive Legs must be in their lowest input hole. position before installation. Left Leg Right Leg K&A Manufacturing • 800.298.4351 • www.benchbud.com 3 of 12...
- Page 4 • If hex rod is not properly aligned with drive input, slightly rotate the motor 1/6th or 1/3rd of a turn. Hex Rod Wrench (O) can also be used to rotate hex rod K&A Manufacturing • 800.298.4351 • www.benchbud.com 4 of 12...
- Page 5 Left Leg For proper alignment of pre-drilled holes, first insert screws at the four corners of the U-channel. Then, install the remaining screws. *Hole placement may vary depending on table width. K&A Manufacturing • 800.298.4351 • www.benchbud.com 5 of 12...
- Page 6 Step 5 • Slide cross supports (P) over leg cross support brackets. Left Leg Step 6 • Install bolts and washers (8 sets). Do NOT fully tighten. Left Leg K&A Manufacturing • 800.298.4351 • www.benchbud.com 6 of 12...
- Page 7 For proper alignment, first insert screws at the four corners of each leg mounting bracket. Then, install remaining screws. Step 8 • Fully tighten bolts in both cross supports. Tighten bolts K&A Manufacturing • 800.298.4351 • www.benchbud.com 7 of 12...
- Page 8 Long side of control box must run parallel to the long side of the worksurface. Control NOTE: Table will NOT operate unless the control box (T) is screwed tight into the table without any play. K&A Manufacturing • 800.298.4351 • www.benchbud.com 8 of 12...
- Page 9 (U) into the control box (T). Power • Plug power cable into outlet. Cable • With the desk still upside down, test your BenchBUD to Switch check if assembly was successful. Cable • Hold the down arrow on the control switch until table no longer moves to complete “reset mode.”...
- Page 10 For faultless operation, ensure all cables, electronics, and accessories are cable managed and secured. Excessive load or weight must be distributed evenly. Failure to follow these guidelines may cause intermittent functionality. K&A Manufacturing • 800.298.4351 • www.benchbud.com 10 of 12...
- Page 11 The BenchBUD mobile app is currently in development! Until its release, you can download and use the BenchBUD compatible NewHeights™ Mobile App from our sister company. This Bluetooth™ technology will allow mobile app users to control and manage their standing workstation directly from their mobile device.
- Page 12 5. You will reach the limit adjustment menu and hear four musical tones. 6. Press and hold the until the workstation has reached its lowest possible position. The reference is re-calibrated, the table should be leveled and the height indication should be correct. K&A Manufacturing • 800.298.4351 • www.benchbud.com 12 of 12...
