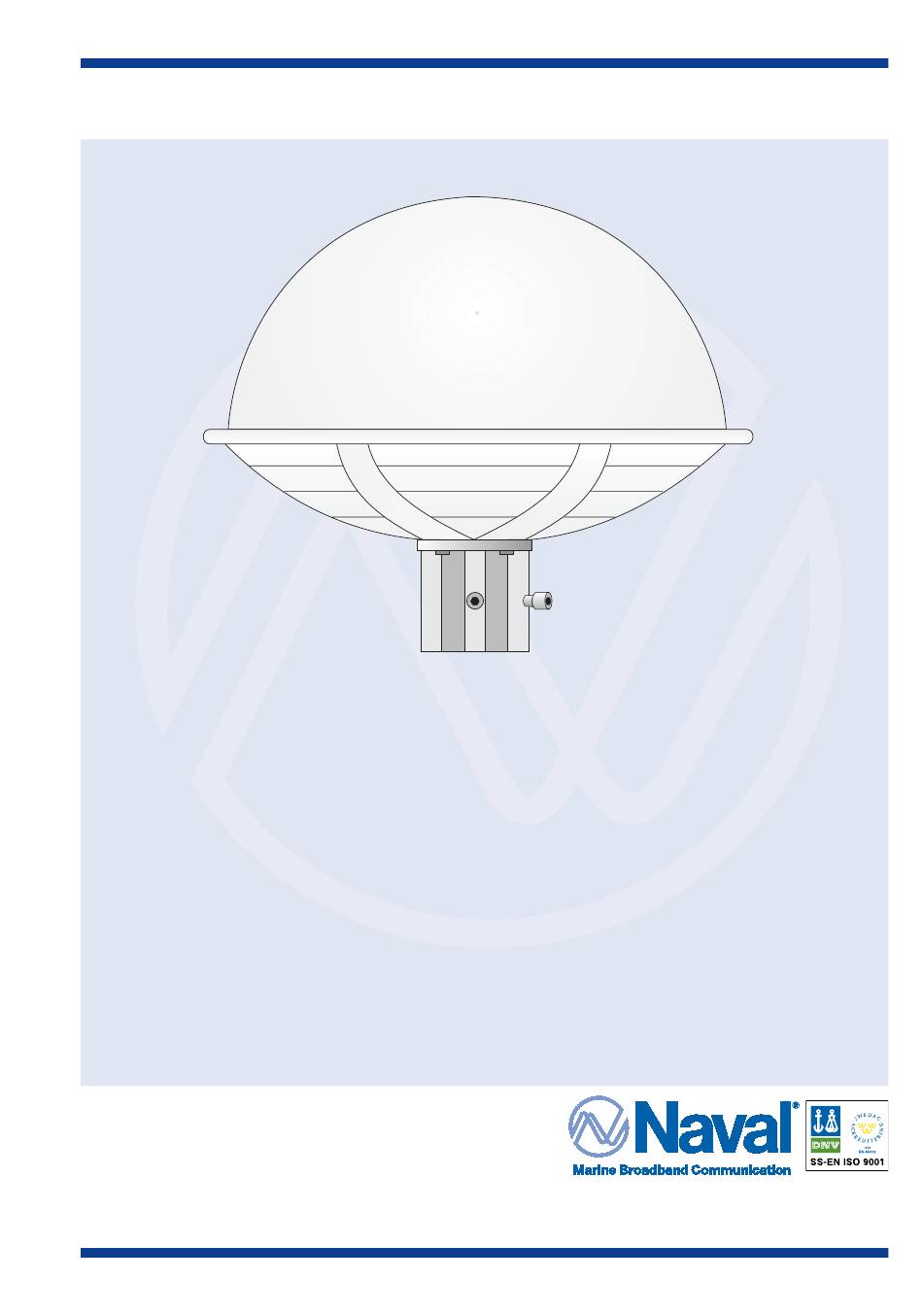

Mark 30ALC / 32ALC
Installation manual

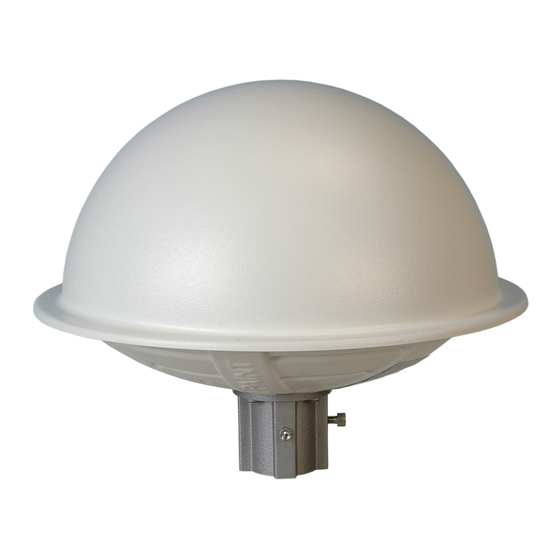

The Naval antennas is a range of omni-directional wide band antennas for maritime purposes.
It is based on a construction of loop antennas coupled to band amplifiers with ALC (automatic
level control). The antennas has a very high dynamic range. The antennas are made of ABS
plastic and filled with polyurethane foam. Mounting base in saltwater proof special alloy and
bolts in stainless acid proof steel.
The antennas is tested by "Det Norske Veritas" for the same approval as for radar equipment.
The advantages of a Mark antenna compared to a Yagi antenna system are:
•
ALC Automatic level control.
•
Rigid, non-corrodible, maintenance free construction.
•
Small dimensions and easy to mount.
•
Omni-directional, no adjustments.
•
Replaceable amplifier.
•
Integrated wavetraps VHF/AIS.
Since 1971, the objective of Naval Electronics has been to offer the
best possible products for TV and Radio reception at sea. Naval
began with omnidirectional antennas and is the world leader in this
field of technology today. Now, with an expanded product range, the
name Naval means much more than antennas. Naval operates in
more than 40 countries and has installations on thousands of
vessels all over the world.
