TIN-NIK ANT-001 Installation

Vehicle antenna
Hide thumbs
1
2
3

Advertisement

Table of Contents

Antenna Film
Before installation, make sure that the glass surface is spotlessly clean and dry ，wipe
1.
the area of the windscreen where you are attaching the antenna to.
If the glass is cold, you may need to warm up the glass first to ensure good adhesion.
2.
Vehicle antenna should be fitted onto the windscreen on the side of the passenger seat.
3.
To optimize reception, put the signal amplifier (the black plastic case) and the
aerial wires 3 to 5cm away from the side of the windscreen and 2 to 3cm from the top.
(Refer to diagram 1)
Ensure the glass surface is dry before mounting the antenna film. Remove the
4.
adhesive backing and stick the lower horizontal section of the antenna film to the
windscreen. Be careful not to touch the sticky side of the antenna film. (Refer to
diagram 2).
Stick the antenna to the glass, gently applying pressure to remove any air bubbles.
5.
(Refer to diagram 2).
Remove the adhesive backing from the amplifier block on the antenna lead, ensuring
6.
that you do not touch the terminals or the sticky surface.

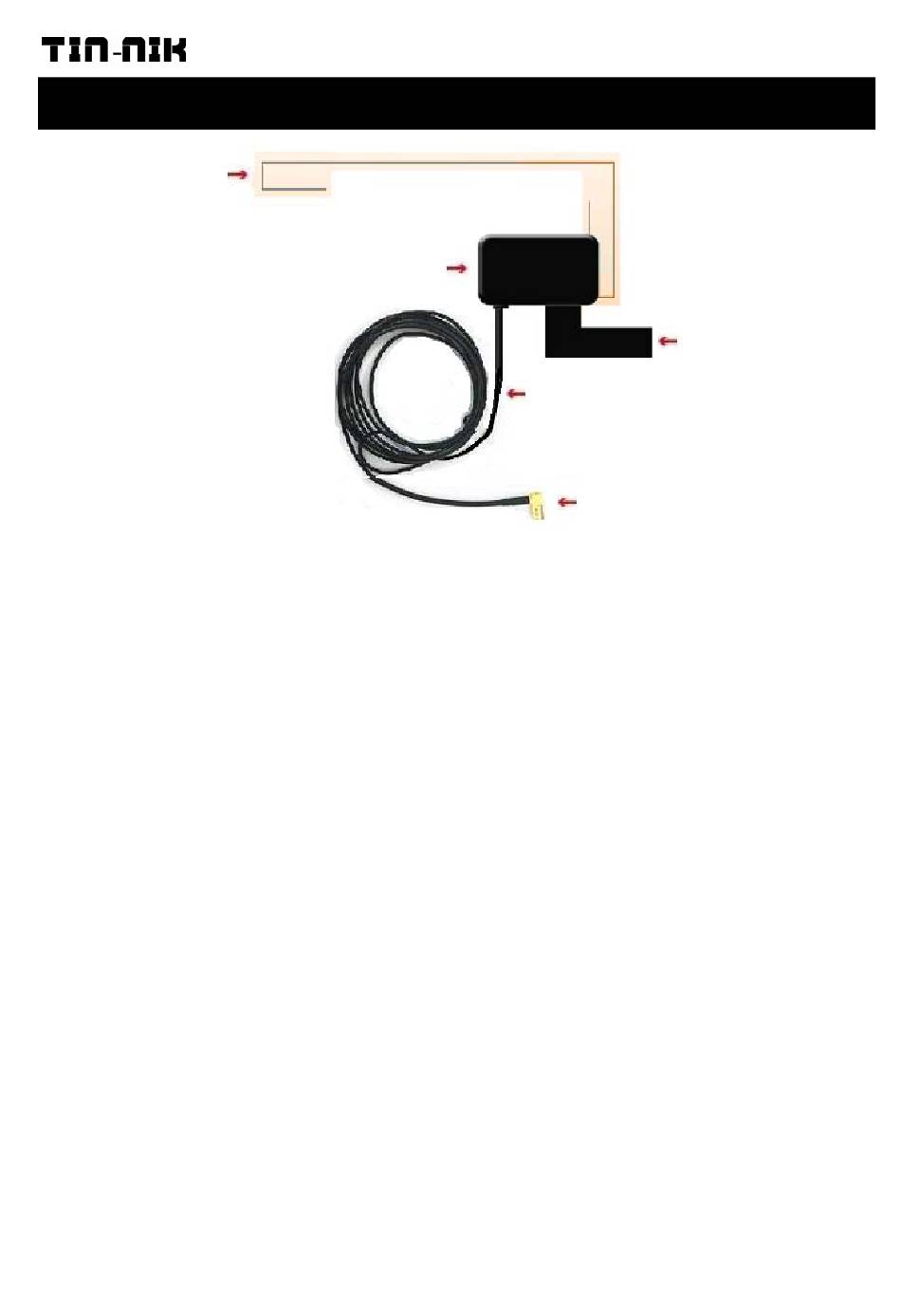

Vehicle Antenna Installation

Amplifier Block
DAB Antenna ANT-001
1
Earth Sheet
Antenna Lead
SMB convertor plug
ANT-001
V20200504A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANT-001 and is the answer not in the manual?

Questions and answers

Summary of Contents for TIN-NIK ANT-001

  • Page 1 Earth Sheet Antenna Lead SMB convertor plug DAB Antenna ANT-001 Before installation, make sure that the glass surface is spotlessly clean and dry ，wipe the area of the windscreen where you are attaching the antenna to. If the glass is cold, you may need to warm up the glass first to ensure good adhesion.
  • Page 2 Diagram 1 Diagram 2 Installation Instruction 1. Vehicle Antenna Installation. (Refer to page 1) This antenna cannot be used on reflective coated screens, heated screens, or Note: screens smaller than 25 cm (the length of the antenna film) 2. The adhesive windscreen aerial is only suitable for one time use and will not re-adhere to the windscreen.
  • Page 3 5. Remove the backing from the copper coloured earth sheet / ground plane, then stick it onto the A Pillar of the vehicle. You do not have to scrape away any paint from the metal of the A Pillar, simply stick the earth sheet to the painted metal pillar. 6.
