- Page 1 11dBi Circularly Polarized Directional Antenna-Strigiformes User manual 用户手册...
- Page 2 各部件名称 11dBi 圆极化天线 棒棒糖天线 45°转接头 眼罩 包装清单 单天线：11dBi 圆极化天线×1；SMA 接头棘轮×1； 用户手册×1； 套餐：11dBi 圆极化天线×1；SMA 接头棘轮×1；用户手册×1； 45°转接头×1；棒棒糖天线×1。...
- Page 3 产品规格 频率范围 5500-5800 (MHz) 接收 增益(dBi) 75°H-plane 40°E-plane 半功率波束 内螺纹内针/内孔 接口方式 净重（g） 天线尺寸 82*42*24 （mm） 包装尺寸 157*116*43 （mm）...
- Page 4 天线安装示意图 ◆正视图 眼罩天线安装示意图 显示屏天线安装示意图 ◆侧视图 眼罩天线安装示意图 显示屏天线安装示意图 （在安装天线时，根据飞行习惯，适当调整天线的俯仰角度，使无 人机在正常飞行时，接收天线垂直于地面效果最佳。）...
- Page 5 天线使用介绍 ◆本产品适用无人机远距离巡航飞行。 ◆天线使用时，推荐使用 5650-5700Mhz 工作频率，干扰较小。 ◆天线使用时，无人机需在天线（定向天线）的接收信号范围内。 ⑴无人机在视线内时，天线需要大约指向无人机。 ⑵无人机远离视线时，根据接收信号强弱，适当调天线的指向（调 整幅度不宜过快过大），使图传稳定。 售后服务 *本产品提供终身的免费技术支持服务。 *如正常使用情况下产生的质量问题，公司提供 24 小时服务响应。 *售后联系方式 QQ：17324764 邮箱：mrgong@126.com 微信;13506025341 电话;0595-86203811...
- Page 6 45°Adapter Goggles Accessories list Single antenna: 11dBi circularly polarized antenna × 1; SMA connector jacket × 1; user manual × 1. Package: 11dBi circular polarization antenna × 1; SMA connector jacket × 1; user manual × 1; 45° adapter × 1; Omni-directional...
- Page 7 Product Specifications 5500-5800 Frequency range(MHz) Receiving Gain(dBi) 75°H-plane 40°E-plane Half Power Beam SMA-Male / RP-SMA Connector type Net weight (g) 82*42*24 Antenna Size(mm) 157*116*43 Package Size(mm)

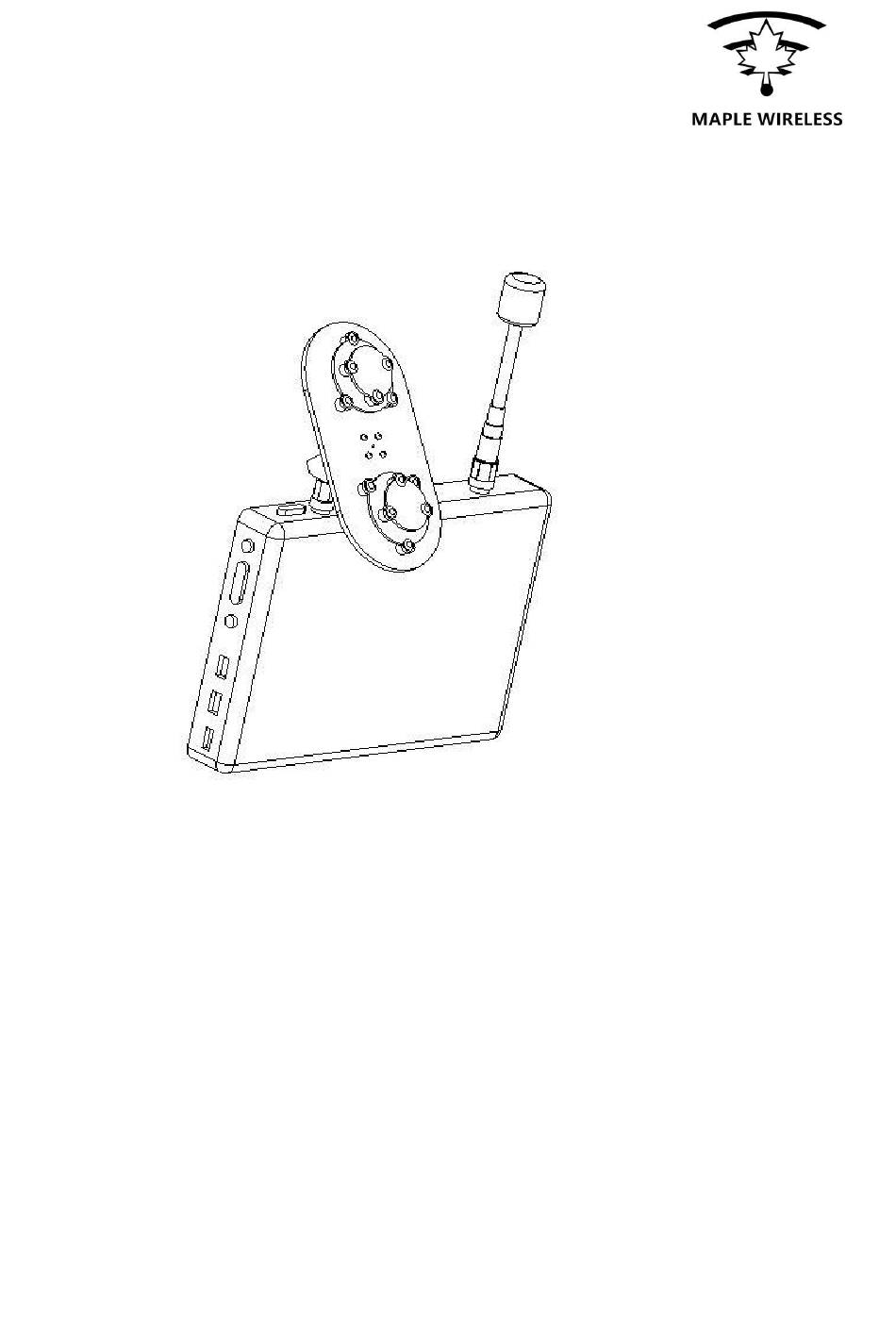

- Page 8 Antenna installation schematic ◆Front view Goggles antenna installation diagram Display antenna installation diagram ◆Side view Goggles antenna installation diagram Display antenna installation diagram (When installing the antenna, the pitching Angle of the antenna should be adjusted appropriately according to the flying habits, so that the receiving antenna is perpendicular to the ground when the UAV is in normal flight)
- Page 9 Antenna Instructions ◆This product is suitable for UAV long-distance cruise flight. ◆ When antenna used,it recommended 5650-5700Mhz working frequency, which has less interference. ◆ When the antenna is used, the UAV should be within the receiving signal range of the antenna (directional antenna). (1) When the UAV is in line of sight, the antenna should be approximately pointed at the UAV.
- Page 10 0595-86203811 www.maple-wireless.cn Quanzhou Maple Leaf Electronic Technology Co.
