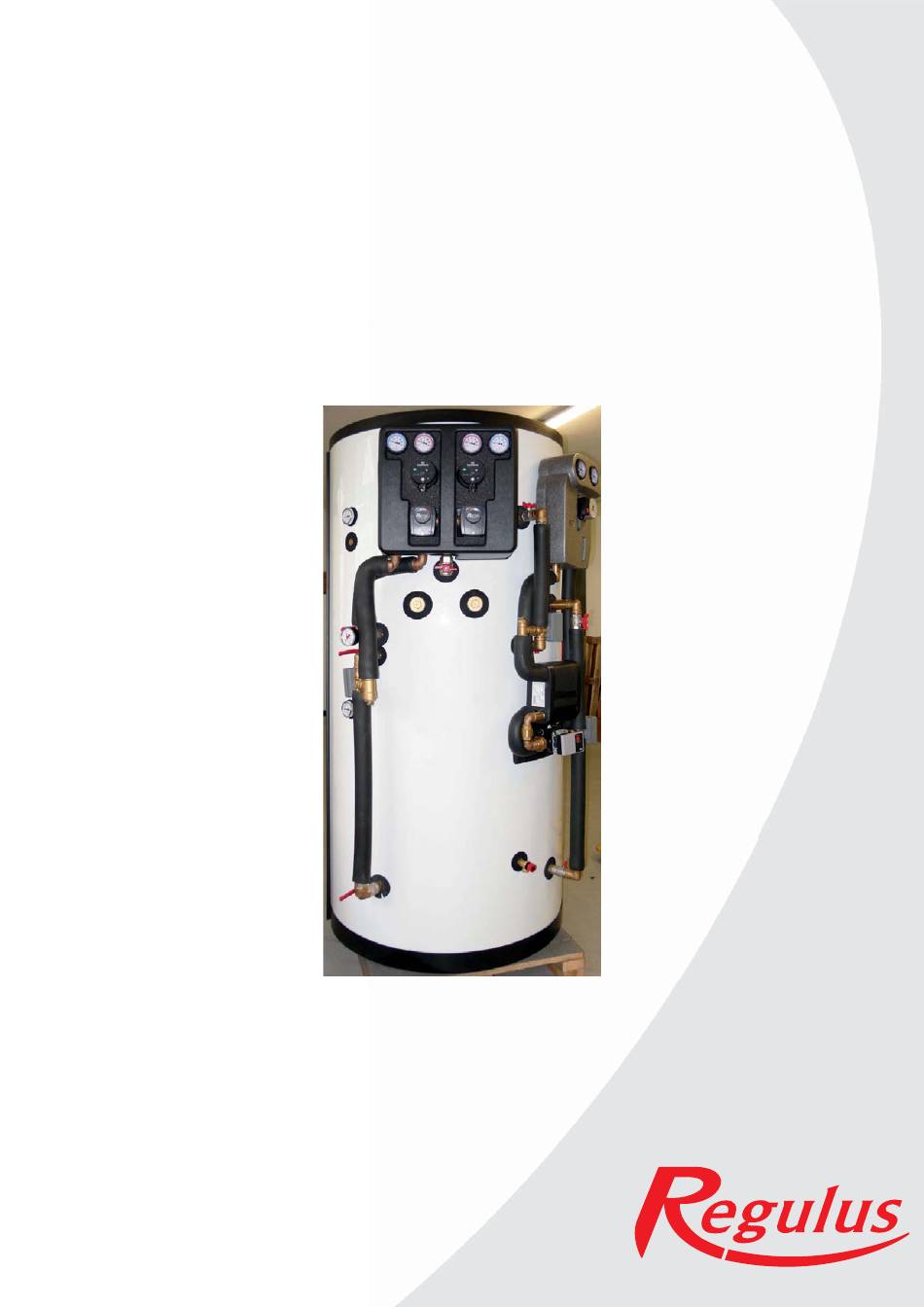

- Page 1 Zone Valve Assembly Installation Manual VEGA 1000 DVS THERMAL STORE v. 1.0...
- Page 2 SCOPE OF SUPPLY 13969 - CONNECTION KIT FOR LK525 TO HEATING RETURN, ON VEGA 1000 Code Name 13967 LK525 Connection Assy 1 pc 13156 Zone Valve Assy for VEGA 1 pc 12217 Straight radiator fi tting, 1” 1 pc 13965 TDN25 pipe (5/4”...
- Page 3 2. First remove the 5/4”x1” reducing hex nipple from the pump station and then remove the 1” elbow FM. 3. Fit the 5/4”x1” reducing hex nipple from the previous point into the elbow on the pump station.
- Page 4 4. Remove the 5/4”x1” reducing hex nipple from the lower connection point and fi t it to the already removed 1” FM elbow. Fit this newly created assembly to the valve as shown in the fi g. 5. Remove the plug below the pressure gauge assy and fi t the zone valve connection assy (code 13967) in its place.
- Page 5 6. Fit the fi tting (code 12217) to the ball valve assy. 7. Cut insulation to circa 500 mm and slide it onto the 5/4” pipe, 390 mm long (code 13965). Then fi t the complete pipe to the outer elbow of the pump station.
- Page 6 9. Cut insulation to circa 700 mm and slide it onto the 5/4” pipe, 670 mm long (code 13966). Using this pipe, connect the zone valve with the ball valve assy. Fit the actuator onto the zone valve. REGULUS spol. s r.o. Do Koutů 1897/3 http://www.regulus.eu 143 00 Praha 4 E-mail: sales@regulus.cz...
