MANUAL FOR INSTALLATION, USE AND
MAINTENANCE

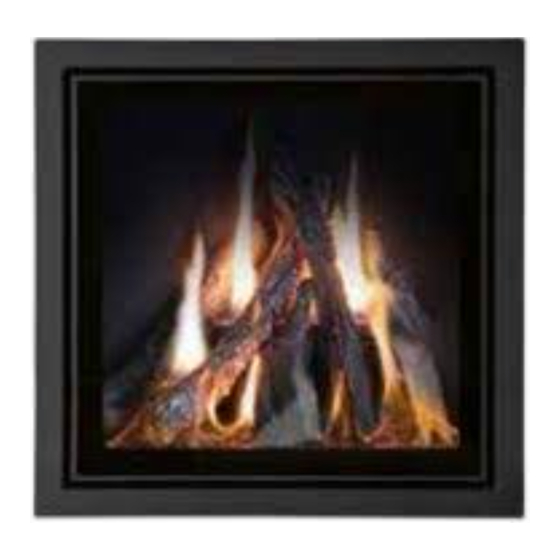

CARINO 70
Congratulations!
You have chosen an appliance of the Jidé range and we would like to thank you for it. We
are convinced that it will bring you warmth and comfort. In order to derive the greatest
benefit from your fireplace, we greatly stress the importance of following the instructions
and recommendations given in this notice.
Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 –
www.jide.be
-
info@jide.be
CARINO (EN) February 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CARINO 70 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jide CARINO 70

  • Page 1 MANUAL FOR INSTALLATION, USE AND MAINTENANCE CARINO 70 Congratulations! You have chosen an appliance of the Jidé range and we would like to thank you for it. We are convinced that it will bring you warmth and comfort. In order to derive the greatest benefit from your fireplace, we greatly stress the importance of following the instructions and recommendations given in this notice.

  • Page 2: Table Of Contents

    PRODUCT FICHE – EU 2015/1186 ........................43 WARRANTY ............................... 44 ..............................44 ARRANTY AGREEMENT ..................................45 ARRANTY Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 3: Introduction

    A list of our dealers-installers is available on our site www.jide.be/en. Before using your fireplace for the first time and in order to guarantee its good usage and operation over time, we suggest you carefully read these instructions for use in order to familiarise yourself with its various functions and characteristics.

  • Page 4: Important

    When the device is not used during a long period of time, close the gas inlet valve. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 5: Ce Label - Categories - Types - Performances

    It also mentions the type of installation, categories authorised for each country and performances of the device according to the type of gas. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 6: User Notice

    4. High flame –High setting 5. Low flame – Low setting 1 pile 9V Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 7: Setting Of Remote Control's Parameters

    A "day" temperature, represented on display by: A "night" temperature represented on display by: Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 8: Setup Of The Remote Control With The Insert

    Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 9: Starting The Device

    On the remote control, push simultaneously on start/stop and high flame button. A beep comes from the receptor. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 10: Turning Off The Device

    To go to sleep mode (the pilot only remains on), push on low flame on the remote control until the burners are turned off. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 11 To work on night temperature, push 4 times on SET button of the remote control. "TEMP" mode and appear on display. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 12 To get back on manual mode, push once on SET button or on high flame or low flame button. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 13: Security Or Automatic Stop

    Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 14 Place the door carefully and stably in a safe place. Do not place the door on its face without covering (blanket, foam …). Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 15: Malfunction

    For every operating problem of the insert, see page 41 at the end of the manual. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 16: Installation Manual

    Before installation, check that local distribution conditions (type of gas and pressure) match with the settings of the device. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 17: Site Preparation

    Your installer can advise you regarding the protection to be provided. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 18 Connector is removable from the inside and allows to insert the device in the recess ant to connect by the inside. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 19 C = Elbow 90° D = 3 m max length E = End USDHC13 Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 20 10m < B < 15 m: Dia 30 mm B > 15 m: case by case. Test the working. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 21 C = 1 or 0.5 according to the type of elbow Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 22 On the roof, the renovation kit must be connected to a concentric end. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 23 Note: to set the draft of the chimney, proceed like in point 2.1 (right setting C31) Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 24 NBN51003, NBN61002 and DTU 35-377 are to be respected. Below, the main patterns of authorised positions. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 25: Installation And Connection Of The Insert

    For an easier access, it is possible to take off the whole gas drawer by sliding. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 26 Note: if it is foreseen to connect warm convection air ducts according to the access of the fitting recess, connect them before fitting the device. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 27 Connect the concentric duct or flexibles on their connection and fix it on the insert. Pattern: Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 28: Checks And First Lighting

    Before placing the gas drawer back, check that each cable and circuit is well connected. See pattern: 1x9V 4xAA Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 29 A beep comes from the receptor. The burners and the pilot switch off Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 30: Installation And Fitting Of Accessories And Options

    Location log 2 Location log 4 Location log 5 Location log 6 Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 31 Location log 1 Location log 2 Location log 3 Location log 4 Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 32 Location log 5 Location log 6 Location log 7 Location log 8 Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 33 The clips are located outside the body. Right fitting Wrong fitting Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 34: Interventions On Components

    Le boîtier est maintenu par un velcro sur la plateforme. Tirer délicatement sur le boîtier pour désolidariser les pastilles velcros. To replace control cables, proceed so: Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 35: Pilot

    Remove the back burner, then remove the nut on the back injector. Remove then the centring set. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 36: Injectors

    Front injector: remove the pipe and the two nuts inside the fireplace and remove the supplying set. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 37: Solenoid Valve

    Attention, if a blade of the fan is damaged, there is a risk of unbalance which will lead to an abnormal noise from the fan. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 38: Maintenance

    Grease the axes. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 39 This test must last at least five minutes after starting of the fans, in order to make sure the device works properly. Check the variation of the ventilators speed. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 40: Technical Documents

    - Check vermiculite quantity in burners trays - Clean burners - Logs - Check logs positions Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 41 - Connection - Check connection and state of the wiring of ventilation Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 42: Architect Plans

    Architect plans Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 43: Product Fiche - Eu 2015/1186

    Product fiche – EU 2015/1186 Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 44: Warranty

    Jidé S.A. reserves the right to modify its products and brochures at any time at its sole discretion. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...

  • Page 45: Warranty

    Stick your identification plate here, or attach it to the invoice. Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 46 ……………………………………………………………………………………………………………………………………………............................................................……………………………………………………………………………………………………………………………………………............................................................……………………………………………………………………………………………………………………………………………........................................................................................................................Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
  • Page 47 ……………………………………………………………………………………………………………………………………………............................................................……………………………………………………………………………………………………………………………………………............................................................……………………………………………………………………………………………………………………………………………........................................................................................................................Jidé s.a. – Rue des Meuneries 11 – B-4650 HERVE (Belgique) – Tél. +32 87 31.75.12 – Fax +32 87 31.75.11 – www.jide.be info@jide.be CARINO 70 (EN) February 2020...
