MHM-6TP manual.qxd
2003.11.10
User Manual-
14:50PM
Page 1
Model #
Hold
Stage1
Stage2
Stage3
Warm
Defrost
Pause
45 Sec
Popcorn
Reg
Quick-On
Beverage
To Cook:
1. Press Time or select
Soup
Preset
2. Enter cooking time
Hold
(except presets)
Warm
3. Select power level if
desired (except presets)
Potato
4. press Start
To Set Time:
1. Press Clock
Dinner
2. Enter desired time
Plate
3. Press clock
Defrost
POWER LEVEL
(Med)
(Cook)
1
2
3
4
5
6
7
8
9
Time
0
Clock
Stop
Start
Clear

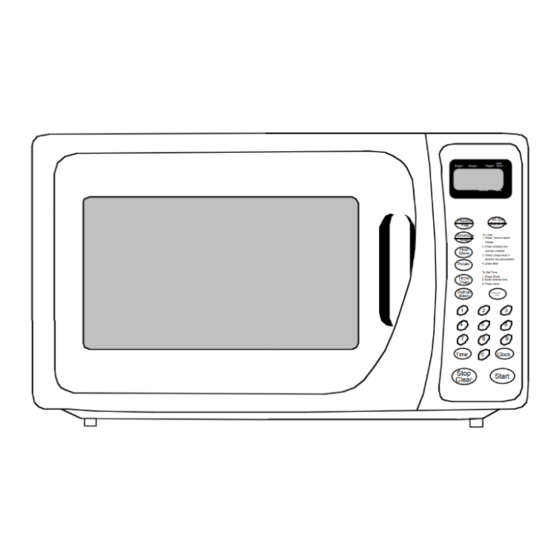

Electronic Control
Microwave Oven
MHM-6TP
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MicroFridge MHM-6TP
Summary of Contents for MicroFridge MHM-6TP
-
Page 1: Microwave Oven
MHM-6TP manual.qxd 2003.11.10 User Manual- 14:50PM Page 1 Electronic Control Microwave Oven Model # Hold Stage1 Stage2 Stage3 Warm Defrost Pause 45 Sec Popcorn Quick-On Beverage To Cook: 1. Press Time or select Soup Preset 2. Enter cooking time Hold... -
Page 2: Important Safety Instructions
MHM-6TP manual.qxd 2003.11.10 IMPORTANT SAFETY When using electrical appliances, basic safety precautions should be followed, including the following: WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using this appliance. -
Page 3: Save These Instructions
Stir the liquid both before and halfway through heating it. Do not use straight-sided containers with narrow necks. d) After heating, allow the container to stand in the microwave oven for a short time before removing the container. Use extreme care when inserting a spoon or other utensil into the... - Page 4 MHM-6TP manual.qxd 2003.11.10 Arcing Arcing is the microwave term that is defined as "Sparks in the Oven." Arcing is caused: • If metal, such as twist-ties, poultry pins or gold-rimmed dishes are being used in the microwave when microwave oven is in use.
-
Page 5: Table Of Contents
MHM-6TP manual.qxd 2003.11.10 14:50PM Page 5 English Table Of Contents PAGE Important Safety Instructions...1-3 Features Of Microwave Oven ...5 What is Safe Plug ...5 Installing Microwave Oven ...6 Unpacking Microwave Oven...6 Assembly Instructions ...6 Proper Air Circulation ...7 Electrical Requirements ...7 Grounding Instructions ...7... -
Page 6: Features Of Microwave Oven
In MicroFridge® combination appliances, Safe Plug™ technology utilizes patented, internal current-limiting circuitry that temporarily shuts off the refrigerator or refrigerator/freezer when the microwave is in use. When the microwave is finished, power to the refrigerator or refrigerator/freezer resumes. Our combination appliances never draw more than 10 - 12 amps and are specifically manufactured to reduce potential fire hazards that are caused by overloaded electrical circuits. -
Page 7: Installing Microwave Oven
• The cabinet is covered with a protective film, remove the film to fully show the intended color and finish. 2. Attach the microwave oven to the refrigerator by screwing in the 4 four side and 1 rear srews. • Six screws can be found in the attached bag. -
Page 8: Proper Air Circulation
• Avoid the use of three plug adapters or cutting off the third grounding prong in order to accommodate a two-plug outlet. This is a dangerous practice since it provides no effective grounding for the microwave and may result in shock hazard. -
Page 9: Operating Your Microwave Oven
MHM-6TP manual.qxd 2003.11.10 English Operating Your Microwave Oven Please read and fully understand the instructions before operating the oven. Setting the Clock When the oven is first plugged in, the display will flash "0:00" and a tone will sound. If the AC power ever goes off, the display will flash "0:00" when the power comes back on. -
Page 10: Child Lock-Out
2. Use only 1 package (approx. 3.5 oz) at a time. Follow package instructions. Do not increase quantity. 3. Use only a microwaveable popcorn package in the microwave oven. 4. Do not try to pop unpopped kernels. 5. Do not leave the oven unattended while popping popcorn. If the popcorn does not pop suf- ficiently, do not press the Popcorn pad again as the popcorn may burn. -
Page 11: Beverage/Soup
MHM-6TP manual.qxd 2003.11.10 English Beverage/Soup Use the Beverage/Soup feature to heat up to 3 mugs (9 oz per mug) of beverage or soup. Note: Up to 3 mugs of beverage can be heated. Heating time is as follows: 1 MUG(CU P1):2 Min., 50 Sec. -
Page 12: 45 Sec/Quick-On
MHM-6TP manual.qxd 2003.11.10 45 Sec/Quick-On This simplified control lets you set and start microwave cooking up to 2 minutes, 15 seconds by just pressing 2 keypads. The power level is always set to HI(maximum power) for Quick-On cooking. 1 Touch (P1): 0:45... -
Page 13: Auto Weight Defrost
MHM-6TP manual.qxd 2003.11.10 English Auto Weight Defrost Auto Weight Defrost lets you easily defrost foods by eliminating guesswork in determining defrosting time. The minimum weight for Auto Weight Defrost is 0.1 lb. The maximum weight is 4.0 lbs. The Defrosting rate is 6 minutes, 30 seconds per pound of food to be defrosted. -
Page 14: Stage Or 3 Stage Cooking
MHM-6TP manual.qxd 2003.11.10 Enter a power level using the numbered pads (1-9). Note that touching the pad "1" will produce a 10% power level, pad "2" will produce a 20% power level, etc., through pad "9" which will produce a 90% power level. If the selection is omitted, the oven will automatically cook at full power (100%). -
Page 15: Hold Warm
MHM-6TP manual.qxd 2003.11.10 English Hold Warm The hold warm feature can be used to keep food warm after microwave or conventional cooking is completed. 1. Program the desired power level and cooking time as previously instructed. 2. Touch the Hold Warm pad for every 10 minutes of Hold Warm time desired (up to 30 minutes). -
Page 16: To Stop The Oven While It Is Operating
This microwave features Safe Plug™ technology to limit electrical draw from using 2 appliances simultaneously. Here, the MicroFridge® refrigerator gets plugged into the outlet on the back of the microwave and the microwave gets plugged to the electrical socket in the wall. When the microwave oven is turned on the refrigerator will shut off. -
Page 17: Proper Microwave Oven Care And Cleaning
• If steam accumulates inside or around the outside the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates a malfunction of the unit. -
Page 18: Food Facts In Microwave Cooking
Temperature: The colder the food before cooking, the longer it will take to cook. Quantity: The cooking time relates to the amount of food in the microwave oven. Do not overload the microwave. For very large quantities, it is better, and may be quicker, to cook in two or more batches. -
Page 19: Language Of Microwave Cooking
Arranging & Rearranging: the food at the outer edges of the turntable or dish generally receives more microwave energy than that at the center, so place thicker or large portions of the food to the outer edge. Rearranging, like stirring,... -
Page 20: Cooking Reference
MHM-6TP manual.qxd 2003.11.10 Cooking Reference Food Bacon Hot Dog in Bun Ground Beef for Casseroles (1lb.) Hamburger Patties Ham Slice (1lb.) Meatloaf (1 Boneless Chicken Breasts Chicken Pieces Fish Fillets (1lb.) Fish Steaks Scallops & Shrimp (1lb.) 14:51PM Page 20... - Page 21 MHM-6TP manual.qxd 2003.11.10 English Food Meat Slices Non-Stirrable Casseroles Pie (1 slice) Soup Vegetables Applesauce (4) Baked Apples (4) Chocolate (melt one square) Eggs Scrambled Hot Cereal Nachos (large plate) 14:51PM Page 21 Re-heating (Allow Standing Time after Re-heating) Power Level Time 1 to 3 min./slice...
-
Page 22: Troubleshooting
My microwave causes interference on my TV. Is this Normal? Some Radio and TV interference might occur when you cook with the microwave oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven. -
Page 23: Warranty Information
MicroFridge® and its products. Inadequate service or customer dissatisfaction should be promptly reported to MicroFridge®. Damage initiated by spark fires caused by using inappropriate material inside the microwave oven is specifically excluded from this warranty. MicroFridge® assumes no liability and... - Page 24 MHM-6TP manual.qxd 2003.11.10 14:51PM Page 24 English IMPORTANT If you have a problem with this product, please contact "MicroFridge®" at 1-800-637-7567 DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE 115V, 60 Hz Made in China MicroFridge® 10 Walpole Park South...
