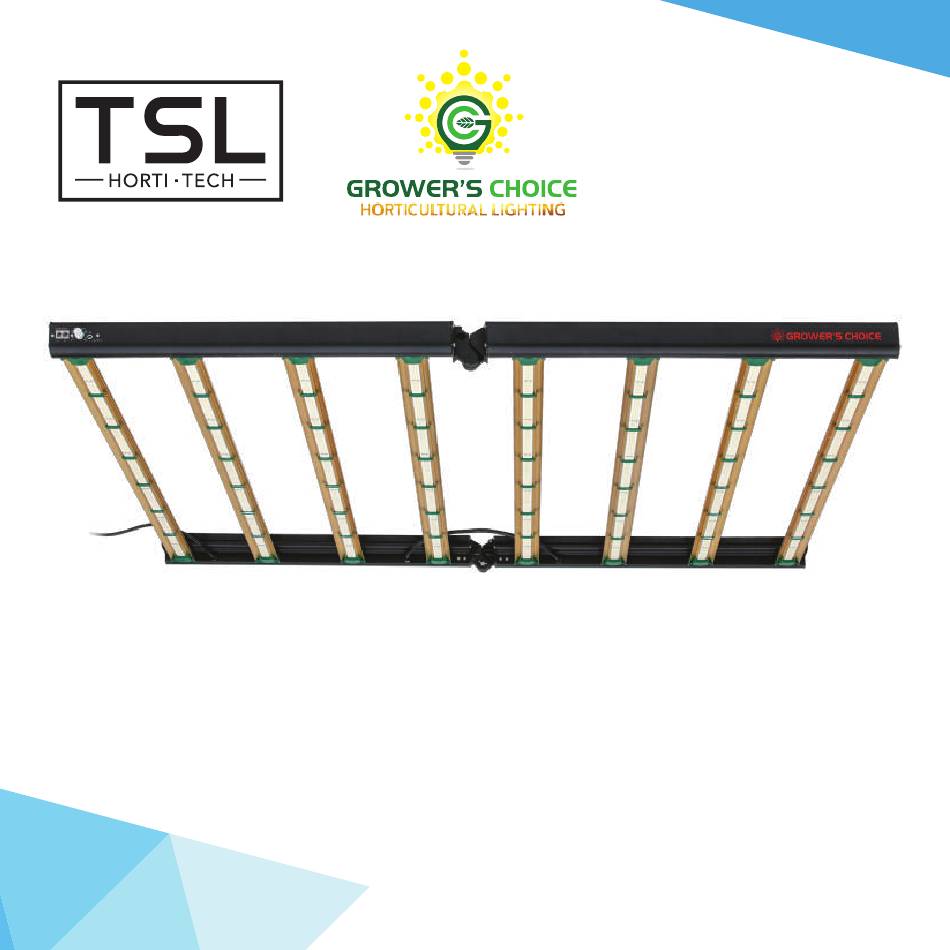

- Page 1 ROI-E900 SERIES LED user manual Installation and Operating Instructions...
-
Page 2: Technical Specifications
PLEASE READ THESE INSTRUCTIONS Technical Specifications: BEFORE USING SPECIFICATIONS THE PRODUCT Light Source Spectrum GC-3K Full Phase 2340 umol/s - 2600 umol/s Max Input Power 1050W+ EXT Control Boost Efficacy 2.6 μmol/s 46.9”L x 59.5”W x 3.2” H / 55lbs Fixture Dimension | Weight 119.1cm L x 151.2cm W x 8.1cm H / 25kg ≥6”... - Page 3 LED's manufacturer's bin tolerance. * Wattage values are typical expected values. TSL Horti Tech maintains a tolerance of +/- 10% range on flux and power consumption. Target light level can vary from projected levels depending on ambient temperature, room reflections values, and other conditions.
- Page 4 WARNING WARNING Safety Risk of electrical shock. Light bars and power supply are To reduce the possibility splash-proof but not waterproof. In the Warnings: of serious injury, always event that the light bar becomes take the proper precautions submersed, first disengage the circuit The ROI series LED system is and unplug the fixture breaker, then unplug the fixture before...
- Page 5 Contents: • ROI-E900 LED System • Rope Ratchet • Metal side hangers • Power Cord • 240v/120v Adaptor • RJ14 Data Cord Not Included: • Lighting Controller...
- Page 6 installation: • Switch off mains power • We always recommend using certified or qualified installation professional to ensure optimal performance and safety. • Unfold the fixture with LEDs facing down. Turn the nut to secure the fixture position • The ROI Series can be mounted to the supporting structure or frame by suspending with carabiner cables (not provided) or other suspension means using the four (Do not remove the diode strip protective plastic •...
- Page 7 • THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE installation: WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND • Inspect the contents for any obvious physical damage. If damage has OPERATION OF THE PRODUCT AND THE HAZARDS occurred, contact the shipper of the hardware.
-
Page 8: Warranty
If the product shows any defects within this period and that defect is not due to user error or improper use, TSL Horti Tech shall, at its discretion, either replace or repair the product using suitable new or reconditioned products or parts. TSL Horti Tech arranty liability extends only to the replacement cost of the product. - Page 9 Tel: (909) 972-8419 E-mail: info@growersc.com Website: www.growersc.com Address: 2510 E Merrill Ave. Ontario CA 91762 ROI-E900 LED System Instructions revised - April 08, 2022...
