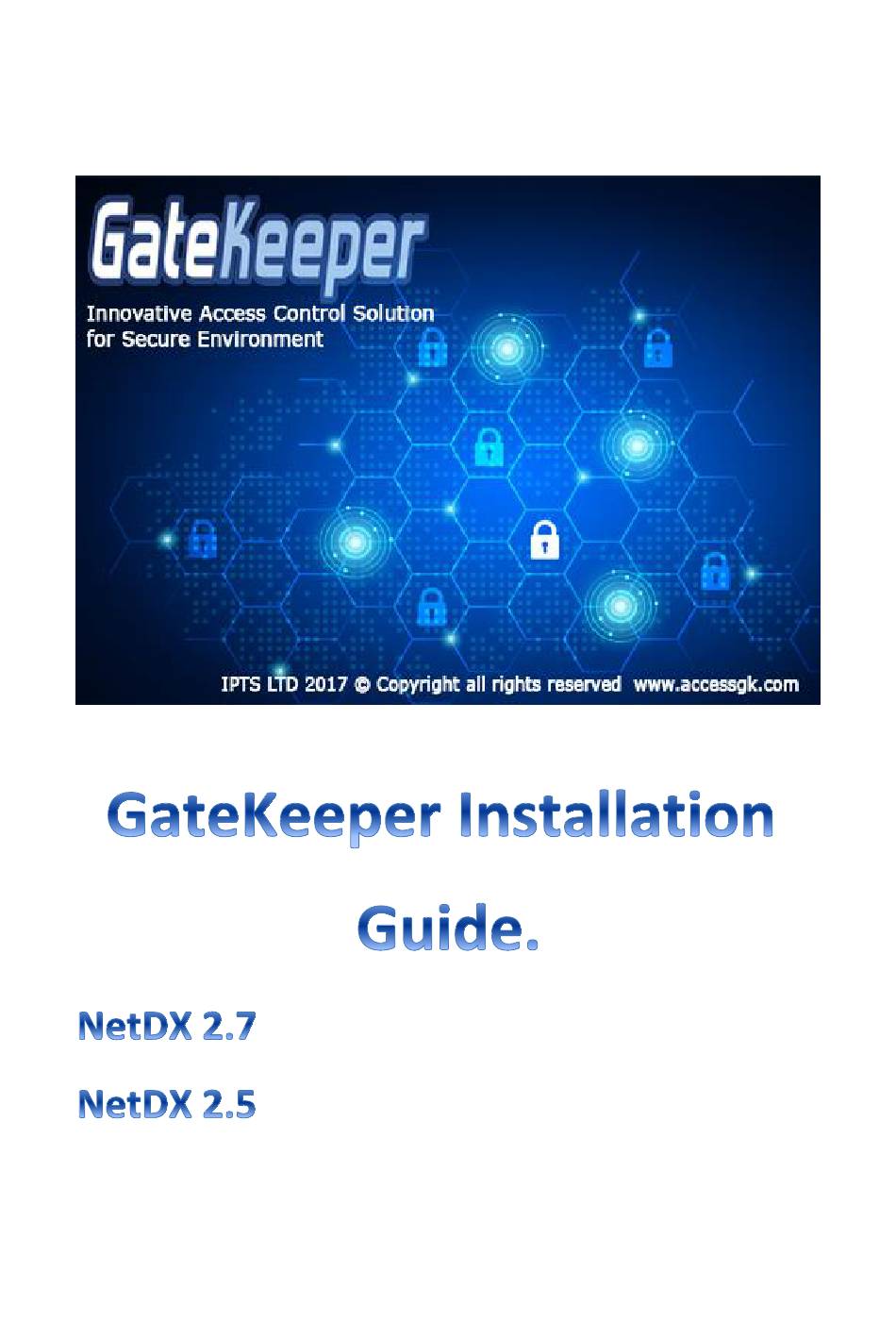

Summary of Contents for Gatekeeper NetDX 2.7
-
Page 2: Table Of Contents
Table of Contents ..................What is NetDX Access Control ? ....................A Simple System Set Up ......................Door Controllers ....................Wired IP access control ....................Readers installation... -
Page 3: What Is Netdx Access Control
What is NetDX Access Control ? NetDX is GateKeeper's User friendly and flexible networked access control system , which is managed from a central pc. NetDX access control is really easy to install and designed to make management of any building very simple. -
Page 4: A Simple System Set Up
A Simple System Set Up NetDX Designed with simplicity in mind and is easily scalable. Gatekeeper's two door controller philosophy means you only quote for doors that require access. You can build your NetDX system two door at time using the following components. -
Page 5: Door Controllers
Door Controllers All GateKeeper door controllers can be used alongside each other, making it easy for installers to find the best solution for each individual site. Wired IP access control Allow TCP/IP technology with direct connection to the IP network. - Page 6 *Connect the Ethernet cable from latronix unit to the Ethernet port ( PC or switch) Notice For the configuration of the latrnoix unit you can use free program by the name: CPR Manger ( there is a download in www.accessgk.com After installing the CPR Manger.
- Page 7 After that step Press OK and press Apply Setting TAB . Wait a while for applying is done and close the web. You finish configure the unit . For using TCP/IP in Gatekeeper software you can check Manual Guide for Gatekeeper.
- Page 8 *Connect the Ethernet cable from Tibbo unit to the Ethernet port ( PC or Switch) For Configuration Tibbo you should Download Tibbo Program from Gatekeeper Website. Enter Connect Tibbo Ethernet to pc port or switch and connect Tibbo via 12V power (you have option to take 12V power from NetDX or using 12V power adapter).
- Page 9 Use gateway IP-address if not connected directly to pc and using switch instead. Then enter same parameters from the picture below (Half Duplax devices ): Close the window and save it. For applying the unit inside Gatekeeper software goes to User Manual...
-
Page 10: Readers Installation
Readers installation NetDX Controllers fits to most of the readers in the market. You have the option to work with 12v or 5v readers and many types of Key Holders, (Easley set up with jumper). The most important part on reader installation is to define the cables correctly, see picture below. - Page 11 Power Adopter and Backup Battery When you unbox the NetDX there is adapter. First you need to set the adapter, connect it to plug so we can connect it to the socket. Then you need to connect the 2 yellow cabels to the controller PWR connector,( see picture below).
