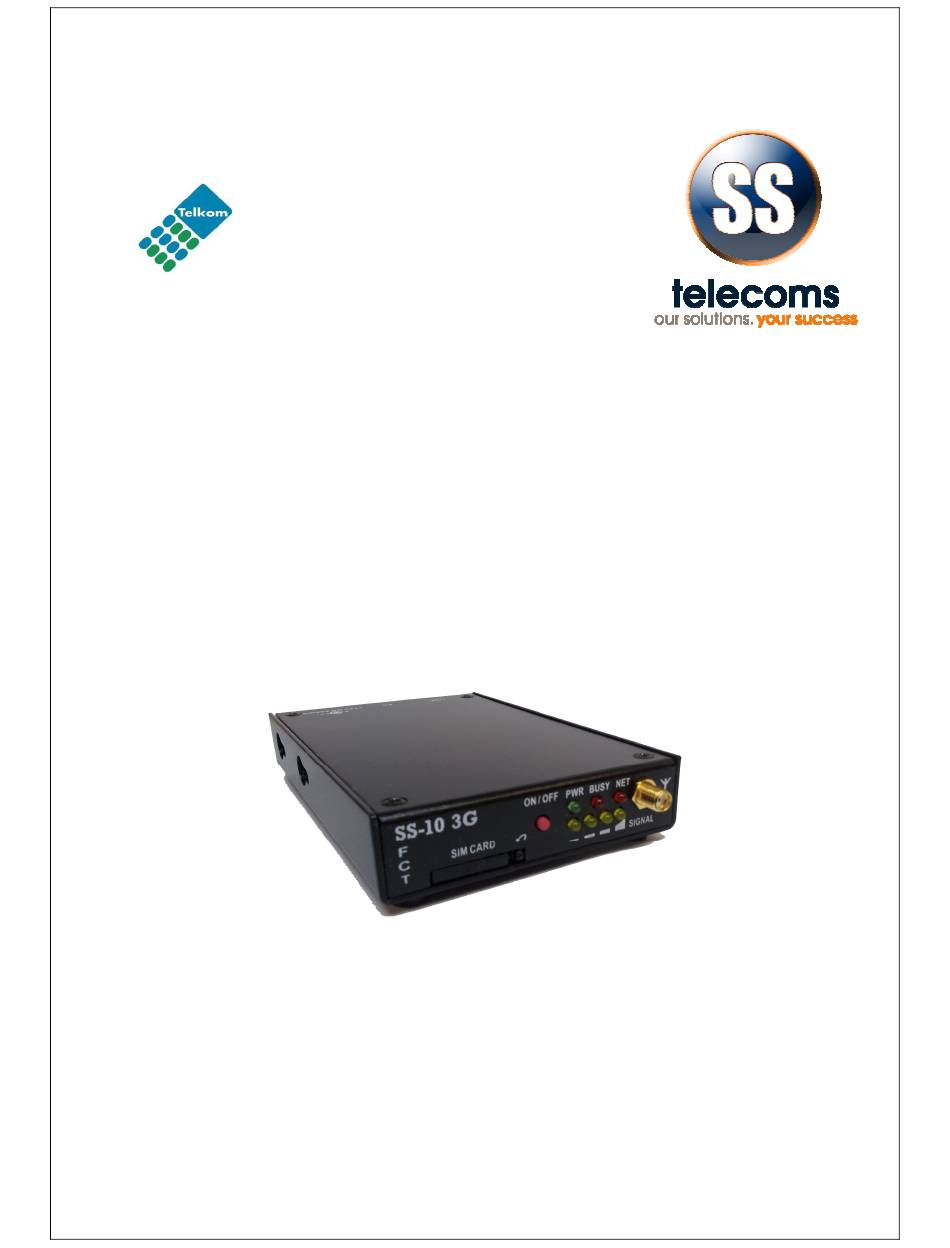

- Page 1 SS-10 3G...
- Page 2 SS-10 3G JOB AID Installation Manual DOC. NO: SS-10 3G - 015 (REV. 01) Page 2 of 9...
-
Page 3: Table Of Contents
CONTENTS PACKAGE CONTENT HARWARE INSTALLATION IDENTIFYING THE CONNECTORS CONNECTING THE CABLES INSTALLING THE EXTERNAL ANTENNA POWER UP SS-10 3G LED INDICATORS MOUNTING THE SS-10 3G UNIT CONTACT DETAILS DOC. NO: SS-10 3G - 015 (REV. 01) Page 3 of 9... -
Page 4: Package Content
Please ensure that all components are accounted for and that no damage has been sustained during transport. Item Image SS-10 3G Unit Power supply adapter 12VDC / 500mA External antennas CD with SS-10 software User’s manual Please see CD DOC. NO: SS-10 3G - 015 (REV. 01) Page 4 of 9... -
Page 5: Harware Installation
SS-10 3G JOB AID HARWARE INSTALLATION IDENTIFYING THE CONNECTORS The back of the SS-10 3G unit features the Supply, Voice and Serial connectors: Figure 1. Identifying the connectors POWER: Male connector, jack type, for the power supply adapter. SERIAL: Female DB9 connector for the serial cable used for configuration. -
Page 6: Installing The External Antenna
The serial port is used to configure and change parameters on the SS-10 3G unit by using a software programming tool (SS-10 Tool supplied on CD) Use the serial cable supplied to connect the SS-10 3G to the serial port of the PC running the SS-10 Tool Software. -
Page 7: Led Indicators
1,2,3,4 On Signal > -64dBm (Good) The unit is busy on an active call. BUSY Idle The SS-10 3G has registered to the network and is in standby Searching for Network The supply voltage is present POWER There is no-supply voltage DOC. -
Page 8: Mounting The Ss-10 3G Unit
SS-10 3G JOB AID MOUNTING THE SS-10 3G UNIT The SS-10 3G can be placed either in a vertical position on a wall or horizontally on a desk or on a shelf. The SS-1o 3G and its antennas must be located as far as possible from equipment that is sensitive to electromagnetic interferences (radios, audio or video appliances, computer monitor, TV receivers etc). -
Page 9: Contact Details
Postal address: Postnet Suite 48 Private Bag x 1015 Lyttelton, 0140 Pretoria, Gauteng South Africa Sales Support: South Africa E-mail: sales@sstelecoms.com United Kingdom E-mail: uksales@sstelecoms.com Technical Support: E-mail: support@sstelecoms.com DOC. NO: SS-10 3G - 015 (REV. 01) Page 9 of 9...
