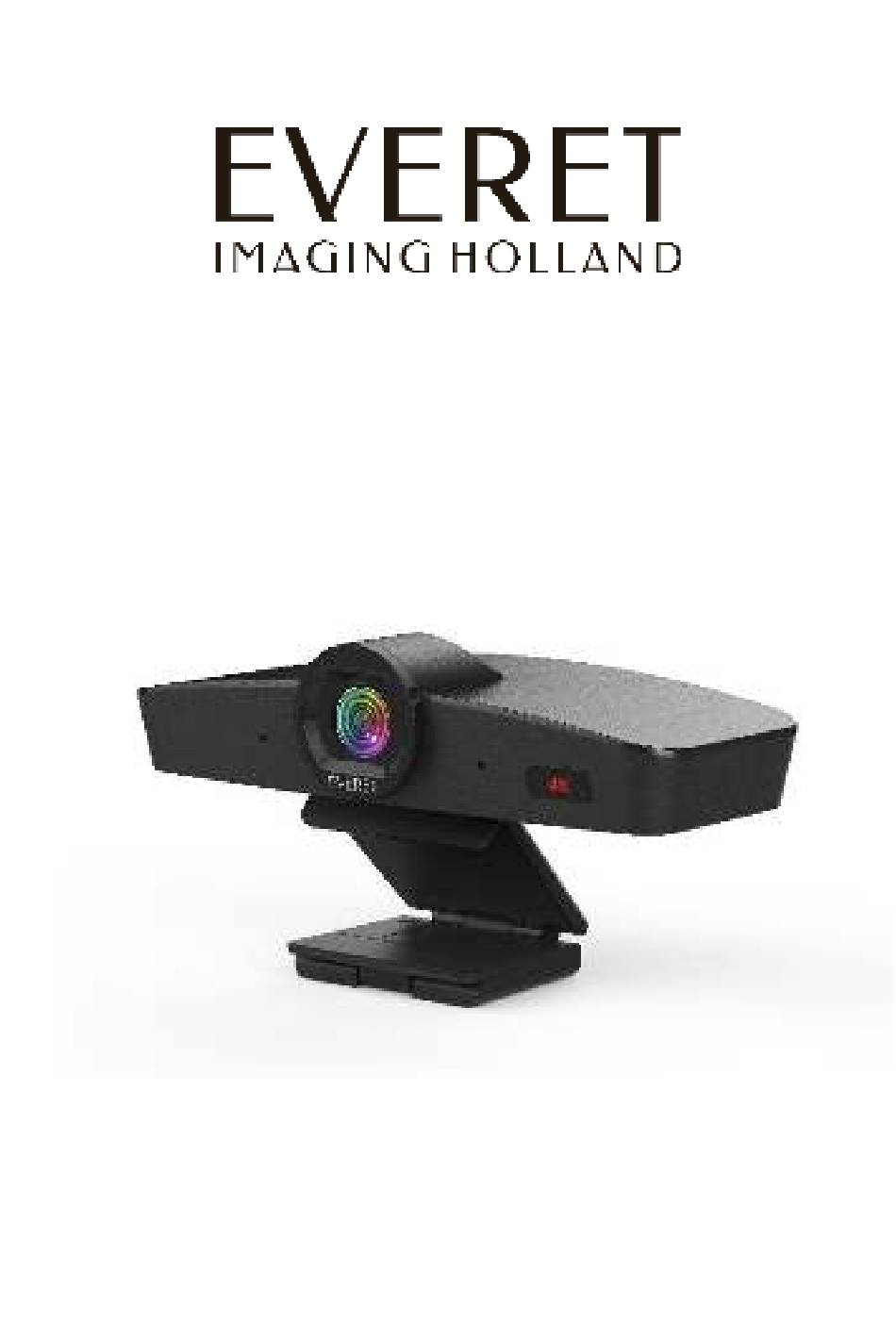

- Page 1 EVERET EVC400 – 4K Smart Video Conference Camera Version 1.0 (English)
-
Page 2: Packing List
PACKING LIST Check all bellow items when open the package: • Camera • USB 2.0 Cable • Mounting screw • Remote Controller Product highlights • Advanced DSP, 1/2.8 inch 8.42 megapixel SONY sensor and high quality 12 megapixel lens. • Auto Framing •... -
Page 3: Technical Specifications
Technical Specifications Sensor 1/2.8 inch high quality, 8.42 megapixel SONY CMOS sensor Video Format YUY2/NV12: 1280*720@15; 1024*576@20; 640*480@30 MJPG: 3840*2160@30; 2560*1440@30; 1920*1080@30; 1280*720@30; 1024*576@30; 640*480@30 H.264/H.265: 3840*2160@30; 2560*1440@30; 1920*1080@30; 1280*720@30; 1024*576@30; 640*480@30 Optical Zoom 12 megapixel fixed lens Digital Zoom Field of Viewing 120°... -
Page 4: Camera Interface
Anti-Flicker 50HZ/60HZ/OFF Supported Polar distance 3~5 meters -26±2dB RL=2.2KΩ Vs=2.0V Sensitivity Input Voltage 4.4~5.25V@500mA (USB port) Dimension(L x W x H) 199mm×92.5mm×65mm Net Weight 0.32KG Camera interface 1.Lens 2.Microphone 1 3.Base bracket 4.Microphone 2 5.Remote receiver 6.Indicator light Dimensions (MM) -
Page 5: Ir Remote Controller
IR REMOTE CONTROLLER Power: Standby/Start camera. (This button is temporarily disabled.) Image: on/off. Preset: long press for 3 seconds to save the current position to the corresponding preset, short press to run the preset, only available in manual mode. Navigation keys: up and down, left and right In manual working mode, these keys are used to adjust the position of the electric pan/tilt/zoom and to select menu items after entering the menu. - Page 6 OSD MENU In normal working mode, press the menu button on the IR remote, to enter the OSD menu; press the menu button again to exit and save modified parameters Use the navigate button to select the main menu. The main menu will change to blue color background, and the right side will show all parameters under this sub menu.
- Page 7 Exposure EXP.MODE AUTO/MANU Default: AUTO MODE Shutter speed:1/30~1/10000, only valid under Default: 1/100 SHUTTER MANU mode GAIN Gain setting:0~15, only valid under MANU mode Default: 0 EXPOSURE FLICK OFF/50HZ/60HZ Default: 50HZ BACKLIGHT ON/OFF Default: OFF GAMMA 0~15 Default: 8 RETURN Back to the main menu Image WB MODE...
- Page 8 Quality 2D NR Set 2D noise reduction level:ON/OFF Default: OFF 3D NR Set 3D noise reduction level:OFF/AUTO/1~4 Default: AUTO SHARPNESS Sharpness setting:0~15 Default: 8 QUALITY CONTRAST Contrast setting:0~15 Default: 8 SATURATION Saturation setting:0~15 Default: 8 BRIGHT Bright setting:0~15 Default: 8 RETURN Back to the main menu MIRROR...
- Page 9 Reset CAM RESET Reset camera parameter to default RESET RETURN Back to the main menu Info CTRL VER Camera movement control program version INFO CTRL DATE Release date of camera movement control program RETURN Back to the main menu...
- Page 10 Suggested installation options Model 1: on top of laptop Model 2: on top of monitor Model 3: on top of flat TV screen Model 4: at the bottom of TV Model 5: wall mount...
