ANT18769
Remote Mounted Wireless WiFi Antenna
Extends WiFi Network for the Shark
Meters and the MP200™ Metering System with WiFi
Features
•
Designed to extend WiFi communication for the Shark
®
100S/Shark
200S meters and the MP200™ Metering
System.
•
Mounts easily via a magnetic base.
•
Kit contains everything necessary to be up and running in
minutes.
•
Can be used with any wireless router to extend a WiFi
network.
•
Coaxial cable for connection to meters.
General Application
The ANT18769 is designed for use with EIG's WiFi communicating
meters, in place of the standard antenna. It connects easily to the
meter's WiFi jack.
Description

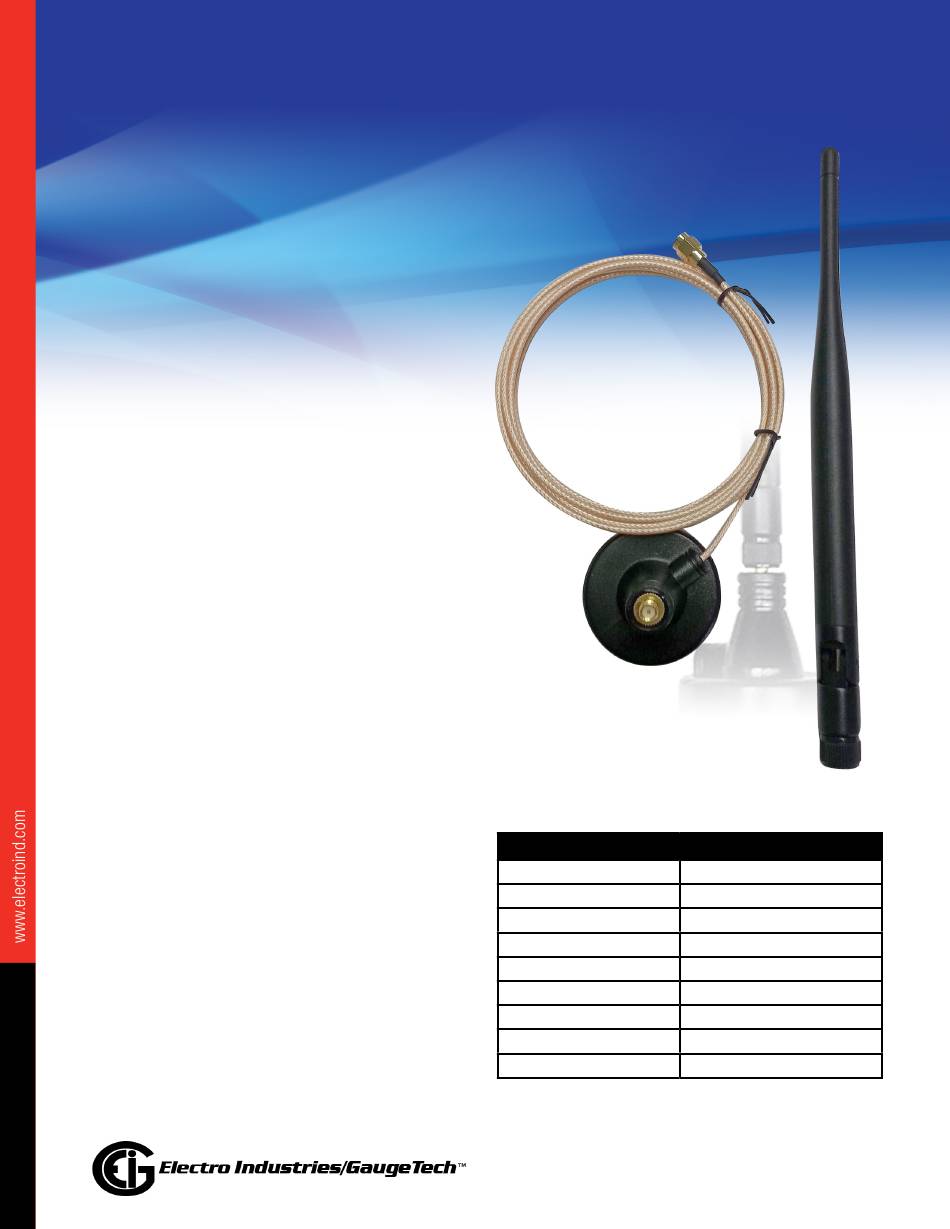

The ANT18769 comes with the antenna, the magnetic base, and a
2000 mm coaxial cable.
100S/200S
®
®
Antenna type
Connector
Standard
Operating Frequency
Polarization Type
Antenna Gain
Impedance
Antenna Swivel
Cable
ANT18769 Kit
ANT18769 Specifications
2.4 GHz 5dBi; Monopole
RP-SMA(M)
IEEE 802.11b/g Wireless LAN
2.4~2.5 GHz
Linear
5.0 dBi Typical
50 Ohm nominal
90˚
RG-316 Coaxial
