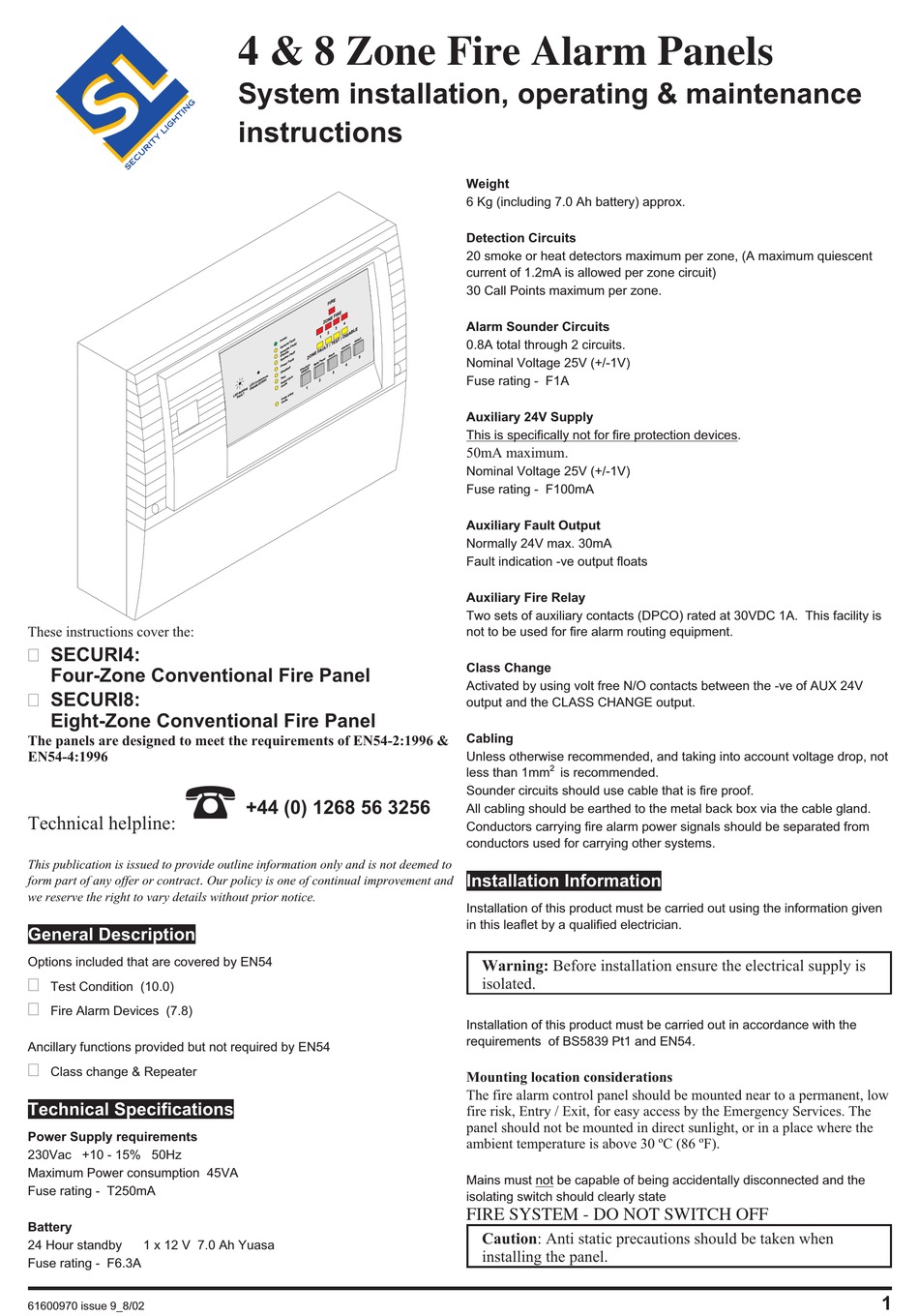

These instructions cover the:
ÿ SECURI4:
Four-Zone Conventional Fire Panel
ÿ SECURI8:
Eight-Zone Conventional Fire Panel
The panels are designed to meet the requirements of EN54-2:1996 &
EN54-4:1996
¤
Technical helpline:
This publication is issued to provide outline information only and is not deemed to
.
form part of any offer or contract
we reserve the right to vary details without prior notice.
General Description
Options included that are covered by EN54
ÿ
Test Condition (10.0)
ÿ
Fire Alarm Devices (7.8)
Ancillary functions provided but not required by EN54
ÿ
Class change & Repeater
Technical Specifications
Power Supply requirements
230Vac +10 - 15% 50Hz
Maximum Power consumption 45VA
Fuse rating - T250mA
Battery
24 Hour standby
1 x 12 V 7.0 Ah Yuasa
Fuse rating - F6.3A
61600970 issue 9_8/02
4 & 8 Zone Fire Alarm Panels
System installation, operating & maintenance
instructions
+44 (0) 1268 56 3256
Our policy is one of continual improvement and
Weight
6 Kg (including 7.0 Ah battery) approx.
Detection Circuits
20 smoke or heat detectors maximum per zone, (A maximum quiescent
current of 1.2mA is allowed per zone circuit)
30 Call Points maximum per zone.
Alarm Sounder Circuits
0.8A total through 2 circuits.
Nominal Voltage 25V (+/-1V)
Fuse rating - F1A
Auxiliary 24V Supply
This is specifically not for fire protection devices.
50mA maximum.
Nominal Voltage 25V (+/-1V)
Fuse rating - F100mA
Auxiliary Fault Output
Normally 24V max. 30mA
Fault indication -ve output floats
Auxiliary Fire Relay
Two sets of auxiliary contacts (DPCO) rated at 30VDC 1A. This facility is
not to be used for fire alarm routing equipment.
Class Change
Activated by using volt free N/O contacts between the -ve of AUX 24V
output and the CLASS CHANGE output.
Cabling
Unless otherwise recommended, and taking into account voltage drop, not
2
less than 1mm
is recommended.
Sounder circuits should use cable that is fire proof.
All cabling should be earthed to the metal back box via the cable gland.
Conductors carrying fire alarm power signals should be separated from
conductors used for carrying other systems.
Installation Information
Installation of this product must be carried out using the information given
in this leaflet by a qualified electrician.
Warning: Before installation ensure the electrical supply is
isolated.
Installation of this product must be carried out in accordance with the
requirements of BS5839 Pt1 and EN54.
Mounting location considerations
The fire alarm control panel should be mounted near to a permanent, low
fire risk, Entry / Exit, for easy access by the Emergency Services. The
panel should not be mounted in direct sunlight, or in a place where the
ambient temperature is above 30 ºC (86 ºF).
Mains must not be capable of being accidentally disconnected and the
isolating switch should clearly state
FIRE SYSTEM - DO NOT SWITCH OFF
Caution: Anti static precautions should be taken when
installing the panel.
1
