Summary of Contents for CableTronix CT-A/V-HD-MINI

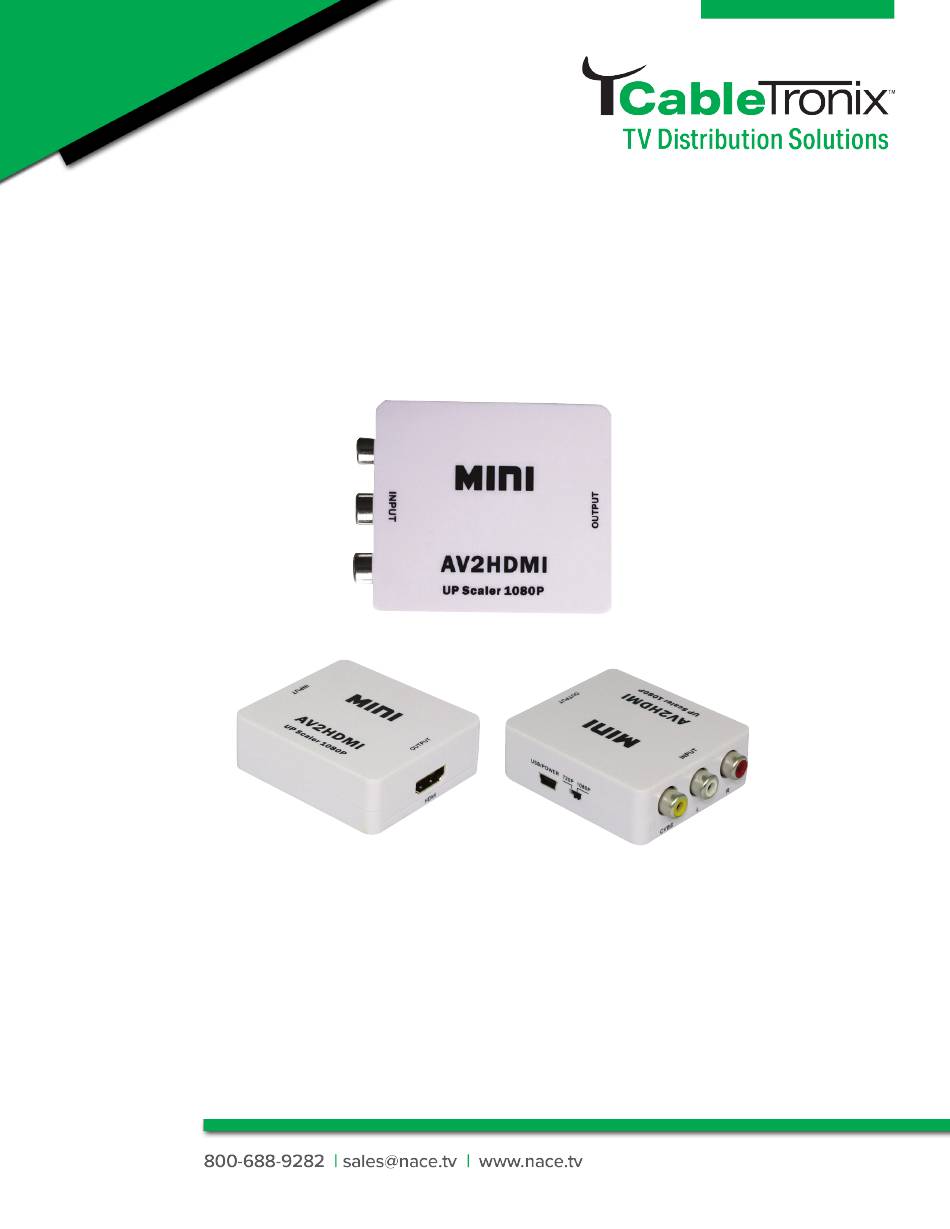

  • Page 1 Manual CT-A/V-HD-MINI User Manual...

  • Page 2: Table Of Contents

    6.0 Warranty ..........................4-5 1.0 Introduction The CT-A/V-HD-MINI converter is a universal converter for analog composite input to HDMI 1080p (60HZ) output. The analog to digital conversion in this module utilizes 10 bits maximum 162 MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch, auto-detect and automatically converts the composite signal to 1080p (60HZ) output.

  • Page 3: Package Contents

    CT-A/V-HD-MINI Manual 3.0 Package Content Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: 1. 1 x Main unit (Mini CVBS to HDMI converter) 2. 1 x USB cable 3.

  • Page 4: Connection Diagram

    DVD Player 6.0 CableTronix 1-Year Limited Warranty CABLETRONIX. (the “Company”) warrants to the Original Purchaser that the item purchased is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser.
  • Page 5 CT-A/V-HD-MINI Manual This warranty is contingent upon proper use of the hardware by Original Purchaser and does not cover: if damage is due to Acts of God (including fire, flood, earthquake, storm, hurricane or other natural disaster), accident, unusual physical, electrical, or electromechanical stress, mod-...
