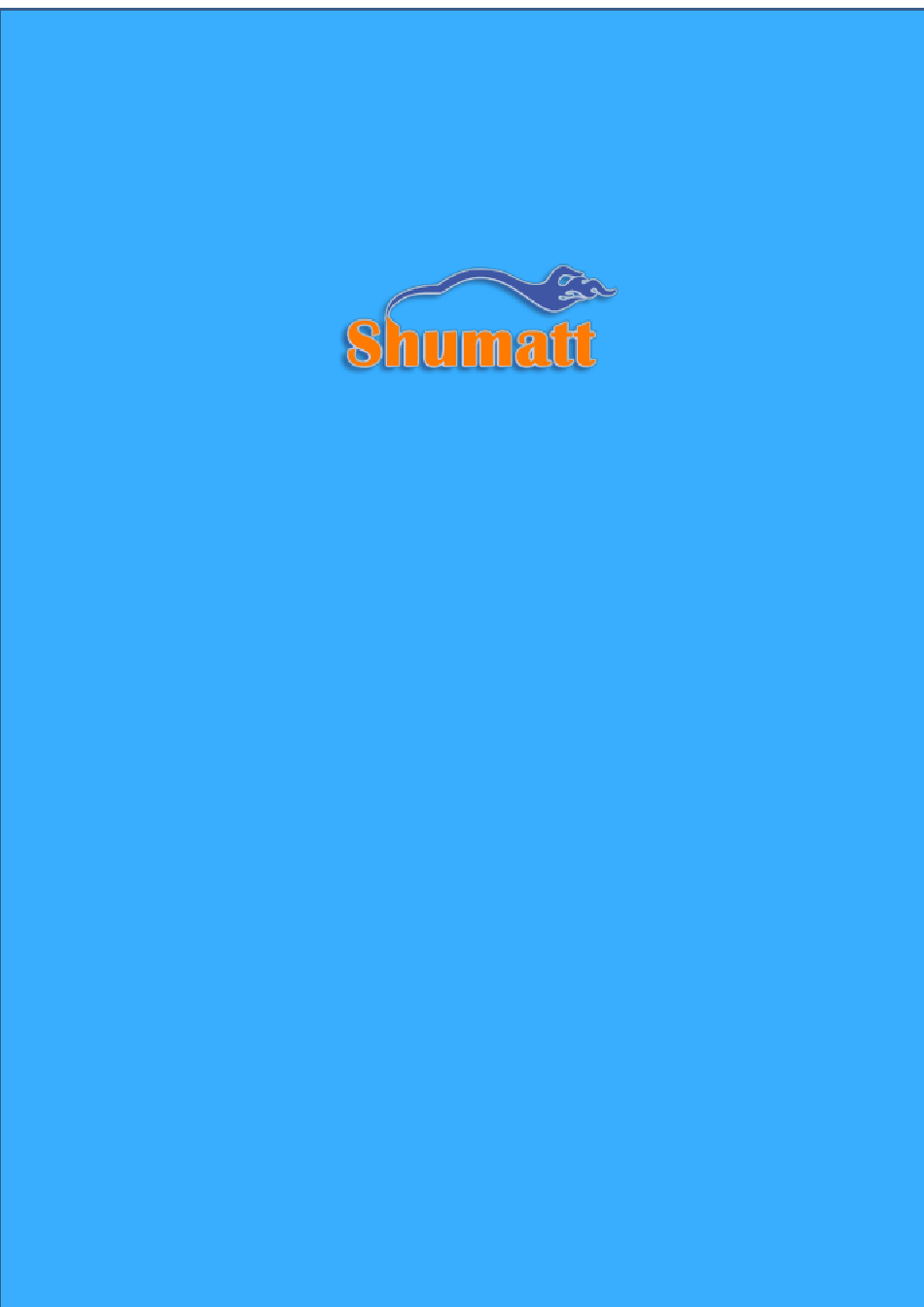

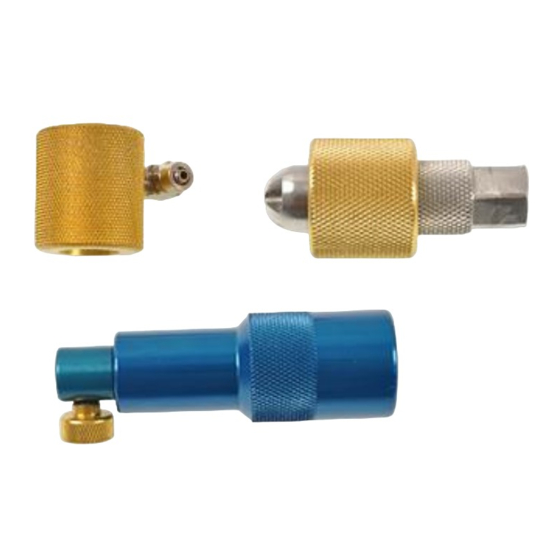

- Page 1 Shenzhen Shumatt Technology Co., Ltd. Carter 320D Common Rail Injector stroke measurement tool Instruction manual Shenzhen shumatt Technology Co., Ltd.
- Page 2 Shenzhen Shumatt Technology Co., Ltd. ： RODUCT NAME Carter 320D Common Rail Injector stroke measurement tool Model: CRT070 Write: Charlene Version ： V2.0 Date :...
- Page 3 ------CRT070 ② ① COPYRIGHT NOTICE Shenzhen shumatt Technology Co., Ltd .and its partner companies issued jointly issued including but not limited to product or copyrighted content and services, etc. all intellectual property rights, protected by law. Without our ③...
- Page 4 Shenzhen Shumatt Technology Co., Ltd. 1.2 Product Details 2. Use a hex screwdriver and wrench to remove the injector armature disk 1.3 Step 1.3.1The first scenario 3, The dial gauge mounted on the measuring device and zero out, then the...
- Page 5 Shenzhen Shumatt Technology Co., Ltd. 1.3.2 The second scenario 3. Use a wrench to twist the dowel for disassembly injector valve assembly 1.3.3 The Third scenario 1.The decomposition tool is installed on the injector 2.The fixing nut screwed onto Carter injector 1.
- Page 6 Shenzhen Shumatt Technology Co., Ltd. 4. DISCLAIMER 1.4 Specifications If Products exist the following conditions, warranties and Specification service under this document will not apply: Name parameter Name parameter (1) The product or component has exceeded the warranty 2793 cm³...
- Page 7 Shenzhen Shumatt Technology Co., Ltd. 7. WARRANTY CARD Maintenance Record Form (filled in by service personnel for maintenance) Repair time Failure phenomenon Failure cause Replacement element Signature...
