FDT Oil Tools
Operation and Maintenance Manual

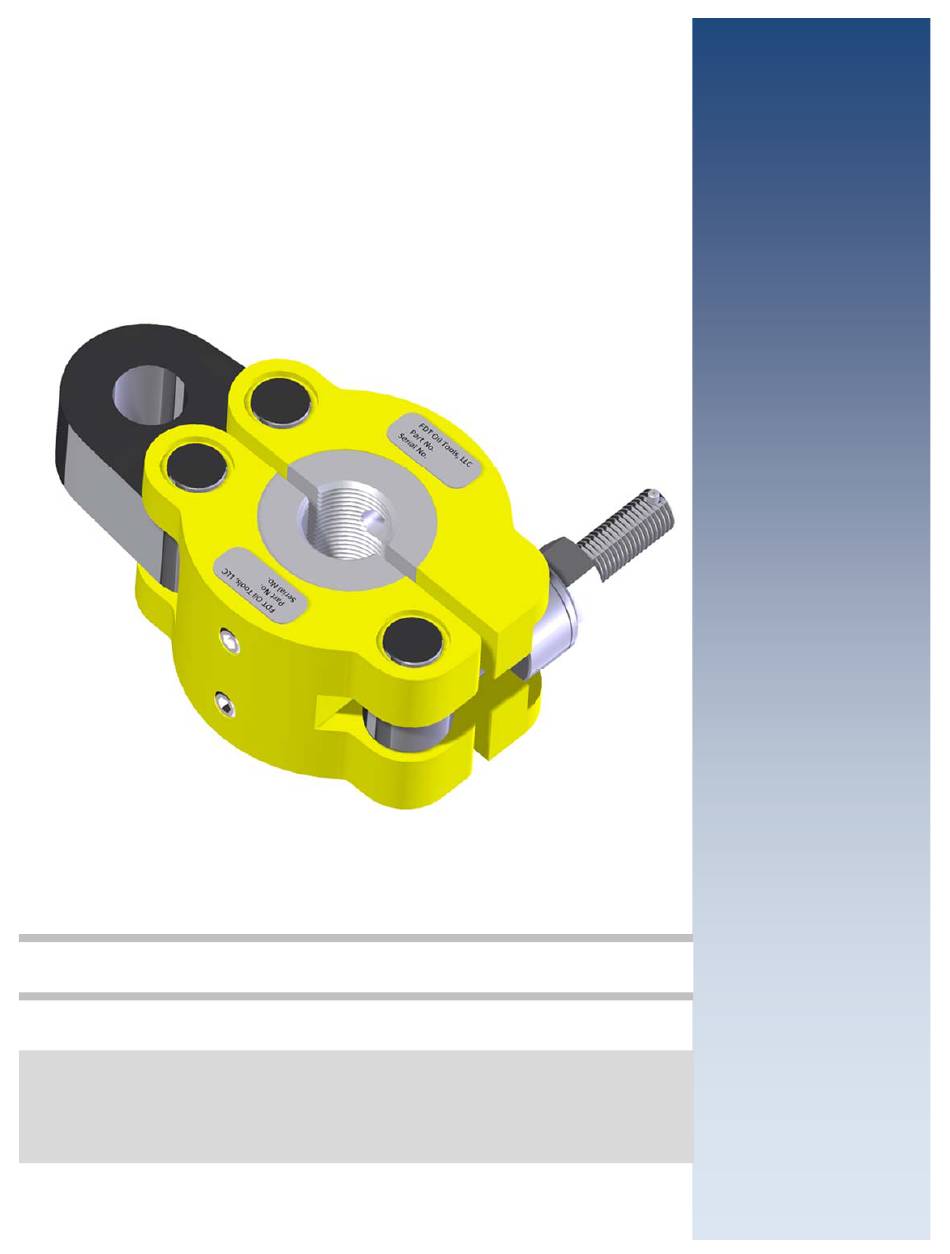

The FDT Coil Tubing Clamp (patent pending) provides both lifting and clamping capabil-
ity in a single, engineered, and certified tool. The FDT CT Clamp allows the tubing to be
safely lifted and stabbed into the goose-neck during setup operations. In transportation,
the FDT CT Clamp secures the tubing on the reel.
Coil Tubing Clamp
(Patent Pending)
"Tools that help
reduce injury on
your rig floor."
Advertisement
Table of Contents
Summary of Contents for FDT 77-000
- Page 1 The FDT Coil Tubing Clamp (patent pending) provides both lifting and clamping capabil- “Tools that help ity in a single, engineered, and certified tool. The FDT CT Clamp allows the tubing to be reduce injury on safely lifted and stabbed into the goose-neck during setup operations. In transportation, your rig floor.”...
- Page 2 Min. Torque Required (Clamp Bolt)………………….………………………………………...……...150 ft-lbs. Weight……………………………………………………………………………………...……………..25 lbs. Part Numbers Fig. 1 Insert Size Part Number Part Number Description 77-011 3/4” 77-000 Coil Tubing Clamp, Less Inserts 77-012 1” 77-007 Hinge Plate 77-013 1-1/4” 77-002 Clamp Body, Left Side 77-014 1-1/2”...
- Page 3 Insert Installation Refer to Figure 1 and Part Number Chart as needed. 1. Select correct insert for tubing size. 2. Place Insert Bushing Nuts into insert (Fig. 2). 3. Place Insert into Clamp Body (Fig. 3). 4. While holding back-up on the Bushing Nuts, insert and tighten Cap Screws (Fig. 4). 5.
- Page 4 Inspection Refer to Figure 1 and Part Number Chart as need- Before each use 1. Check for proper selection of Insert size for tubing being used. 2. Remove any debris from Inserts. Inspect Inserts for broken or damaged teeth. If teeth are damaged, replace Insert. 3.
