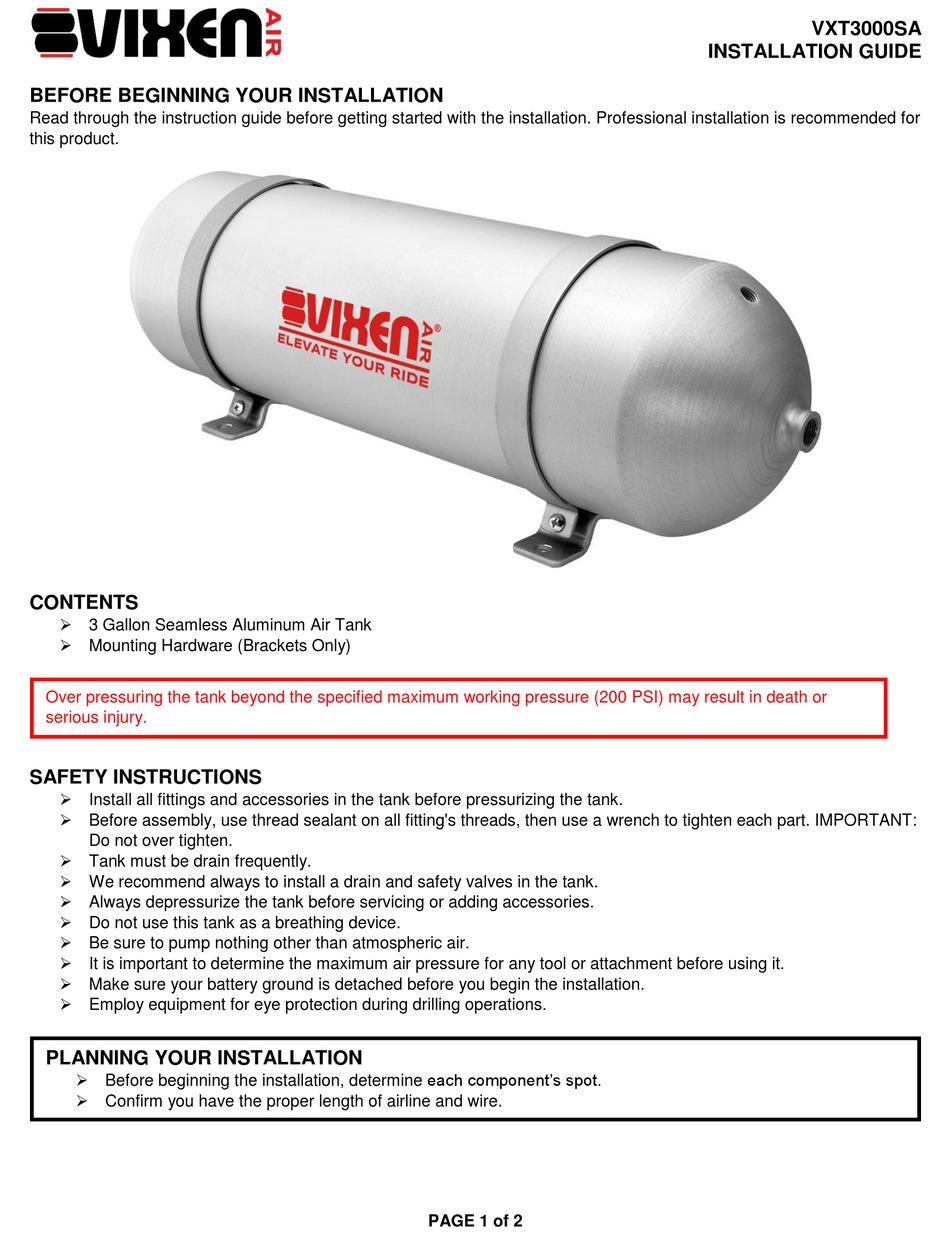

Vixen Air VXT3000SA Installation Manual

BEFORE BEGINNING YOUR INSTALLATION

Read through the instruction guide before getting started with the installation. Professional installation is recommended for
this product.

CONTENTS

 3 Gallon Seamless Aluminum Air Tank
 Mounting Hardware (Brackets Only)
Over pressuring the tank beyond the specified maximum working pressure (200 PSI) may result in death or
serious injury.

SAFETY INSTRUCTIONS

 Install all fittings and accessories in the tank before pressurizing the tank.
 Before assembly, use thread sealant on all fitting's threads, then use a wrench to tighten each part. IMPORTANT:
Do not over tighten.
 Tank must be drain frequently.
 We recommend always to install a drain and safety valves in the tank.
 Always depressurize the tank before servicing or adding accessories.
 Do not use this tank as a breathing device.
 Be sure to pump nothing other than atmospheric air.
 It is important to determine the maximum air pressure for any tool or attachment before using it.
 Make sure your battery ground is detached before you begin the installation.
 Employ equipment for eye protection during drilling operations.

PLANNING YOUR INSTALLATION

 Before beginning the installation, determine each component's spot.
 Confirm you have the proper length of airline and wire.
PAGE 1 of 2
VXT3000SA
INSTALLATION GUIDE
