Drok 091029 Manual

091029
https://www.droking.com

Parameters:

( LED can display correct
Input voltage range: DC 5-36V
value only when input voltage higher than 6.5V.)
Output voltage range: 1.25-32V
Output current: 5A Max (please use it within 4.5A)
Output power: 75W Max
Operating temperature: -40 to +85 ℃
Operating frequency: 180KHz
Conversion efficiency : up to 96%
Short circuit protection: Yes
Over temperature protection: Yes
Input reverse polarity protection: No
Installation: 4pcs 3mm screws
Note:
If input voltage is below 6.5V, please measure the output
with a voltmeter to adjust output voltage.
The input voltage should at least 1.5V higher than the output
voltage.
Out voltage can be continuously adjustable, default output 17V.
Please use the module within 4.5A
Please use the module within 50W. If the pressure difference is
large, please decrease power.
If over temperature, it will automatically shut off the output.
If needs reverse polarity protection at the input terminal, please
in input string into high current diode.

Case Installation Instructions:

BACK
UP
DOWN
LEFT
FRONT

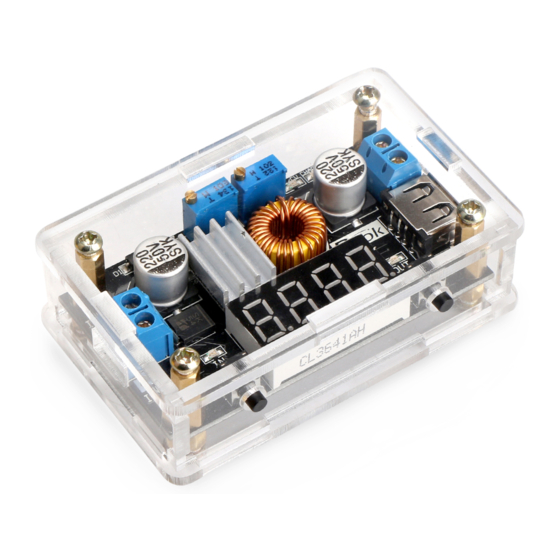

Installed case:

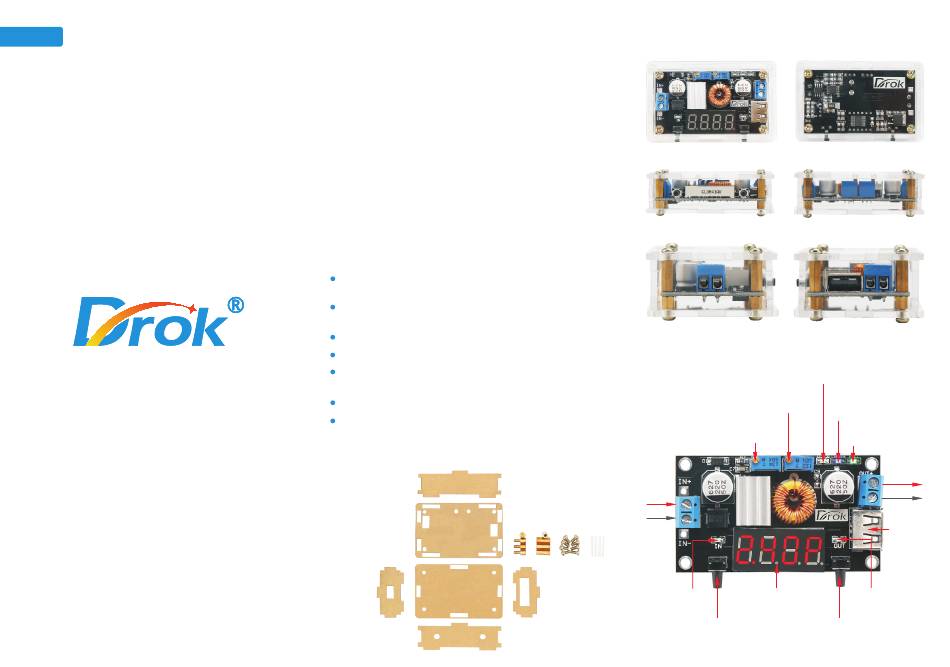

Board Instructions:

Voltage potentiometer:
clockwise to increase
Input+
5~36V
Input-
Input voltage
indicator
Button A: switch ON/OFF
RIGHT
of the digital display
DOWN
UP
FRONT BACK
LEFT
RIGHT
Red light: on when in constant current status
and off when in constant voltage status
Blue light: ON when
Current potentiometer:
charging and OFF
clockwise to increase
when fully charged
Green light: ON
when fully charged
Output voltage
Digital display
indicator
Button B: switch 5 display status
and keep memory when power off
Output+
1.25~32V
Output-
USB
output
interface
