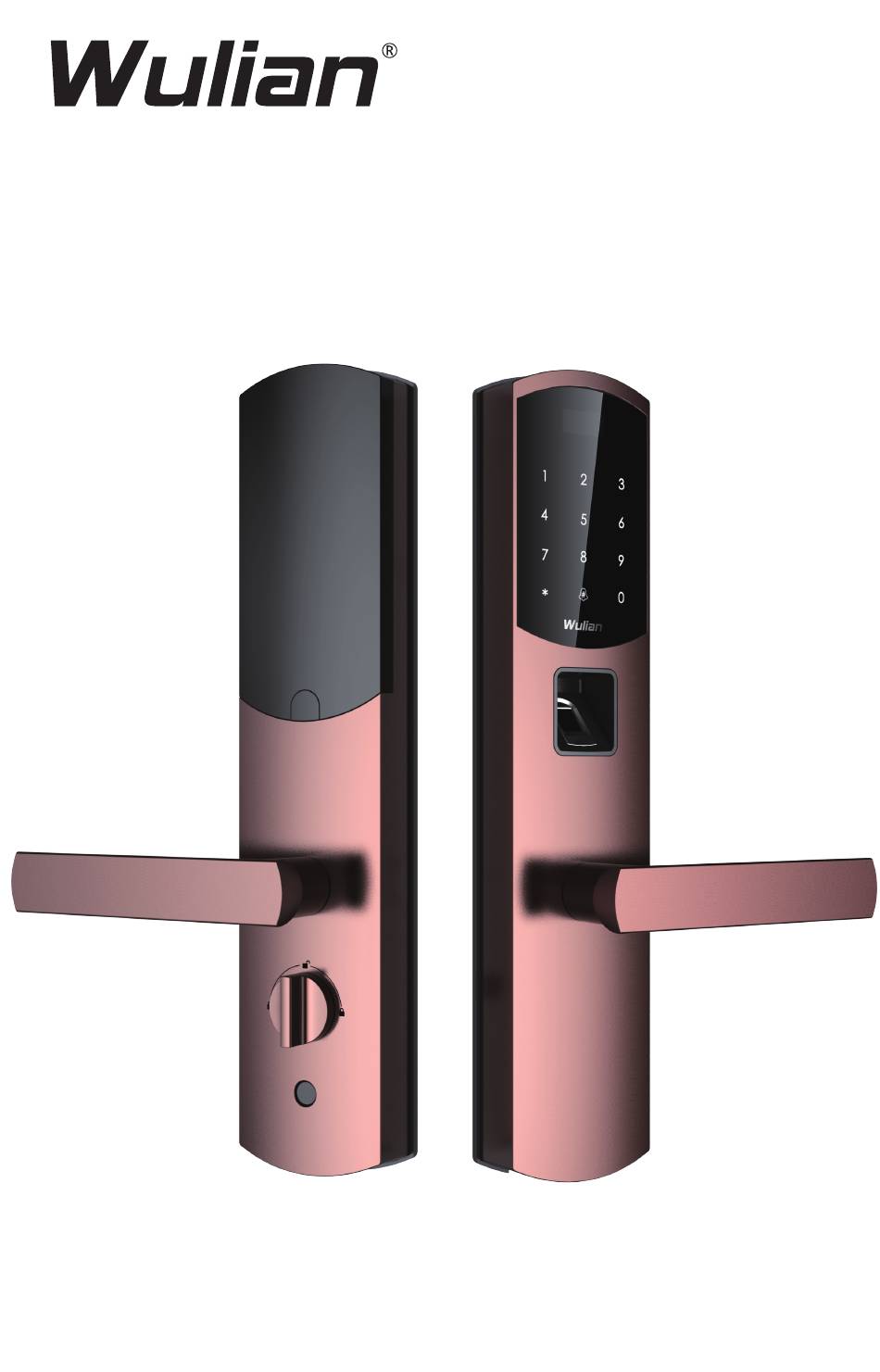

Bern Serial IoT Doorlock

(图片仅供参考，请以实物为准)

(Picture for Reference Only)

Table of Contents

Need help?

Do you have a question about the Bern Series and is the answer not in the manual?

Questions and answers

Palani

April 7, 2025

Battery supply not reaching mother board and no display. It's working in emergency power supply through microusb

2 comments:

Mr. Anderson

April 9, 2025

The issue could be due to completely drained batteries or improper battery installation. If the battery voltage drops below 4.8V, the system will alert with “Low battery, replace battery.” If not replaced, the batteries may fully discharge, causing no power to the motherboard and no display. Also, mixing old and new batteries or different battery types can cause power supply issues.

This answer is automatically generated

Palani

April 9, 2025

@Mr. Anderson

Summary of Contents for Wulian Bern Series

Page 1 洞庭湖系列网络锁 Bern Serial IoT Doorlock (图片仅供参考，请以实物为准) (Picture for Reference Only)
Page 3 目录产品图解配置清单安装前的准备门锁的安装门锁的使用高级功能与应急应用技术参数...
Page 4 1 产品图解后面板前面板液晶屏区域触摸密码区域 NFC感应区域门铃恢复出厂设置按键指纹采集区域离家按键反锁旋钮应急电源接口钥匙孔复位按键...
Page 5 1.外面板（1把） 8.5×5方轴（1根） 2.φ8连接柱（2根） 9.内面板（1把） 3.前后面板连接线（1根） 10.底部固定螺丝（1个） 4.大方轴（1根） 11.螺丝盖（1个） 5.锁体安装螺丝（4个） 12.上部固定螺丝（1个） 6.锁体（1个） 13.碱性电池（4个） 7.大方轴弹簧（1根） 14.电池盖（1个）...
Page 6 2 配置清单请在拆开包装箱后按清单仔细核对，如发现有缺漏，请及时向我们或代理商索取。序号名称每套数量外面板内面板锁体安装配件包产品使用说明书开孔图开孔画笔保修卡机械钥匙磁卡（低配版无磁卡） 5号电池门框盒门扣板...
Page 7 3 安装前的准备 3.1 门开向判断根据下列图示判断你的开门方向。室内室内室外室外右外开门右内开门室内室内室外室外左内开门左外开门...
Page 8 3.2 门锁开向的适配本产品拥有四向合一功能，经调整可以适用于右外开、右内开、左内开、左外开，四种开向的门。室内斜面朝室内室外右外开门选择右外开锁体选择右向执手的面板室内斜面朝室外室外右内开门选择右内开锁体选择右向执手的面板...
Page 9 室内室内斜面朝室外斜面朝室外室外室外选择左内开锁体选择左内开锁体选择左向执手的面板选择左向执手的面板左内开门左内开门室内室内斜面朝室内斜面朝室内室外室外左外开门左外开门选择左外开锁体选择左外开锁体选择左向执手的面板选择左向执手的面板...
Page 10 3.3 门锁开向的调整 3.3.1 锁体内外换向调整：斜舌调整换向片上拨 1) 将限位片向上拨，见图①；图① 斜锁舌 2) 斜锁舌弹出并旋转180°，见图②；图② 3) 将斜锁舌对准方孔并向内推，随后松开， 3. 见图③。图③...
Page 11 3.3.2 执手换向调整：离合器调整图① 图② 1) 用十字螺丝刀拧松执手换向螺丝，见图①； 2) 执手顺时针旋转180°，并扭紧螺丝，见图②； 3) 转动执手，检查执手复位是否正常，见图③。图③...
Page 12 4 门锁的安装 4.1开门孔 1) 定高度 2) 划线先用卷尺在门高度100cm-120cm 把开孔模块贴在门扇上，划线。宽度6cm位置，划线，定高度。门扇门扇 3) 开孔 4) 检查开孔门扇门扇...
Page 13 4.2安装锁体 1) 安装锁体 2) 固定锁体 4.3安装外面板 1) 安装连接柱 2) 对接好连接线及方轴...
Page 14 3) 对位 4) 外面板调试上下扳动把手，测试锁舌是否顺畅。 4.4安装内面板 1) 装5x5方轴 2) 对接线方轴深入锁体1~2cm为宜...
Page 15 3) 对位及收线 4) 预固定内面板 5) 调试内面板顺畅后，再完全锁紧螺丝 ①上下扳动把手，测试锁舌是否顺畅。 ②旋转反锁旋钮，测试锁舌是否顺畅。...
Page 16 5 门锁的使用 5.1开锁方式密码开锁：触摸唤醒门锁，输入密码，按“#”确认，即可解锁。 ● 指纹开锁：按下指纹，验证成功，即可解锁。 ● NFC开锁：将磁卡或带NFC功能的Android手机靠近感应区，验证成功， ● 即可解锁。（低配版本无此功能）手机开锁：在智能家居手机软件中输入正确密码，即可解锁。 ● 备注：产品恢复出厂设置后，进入管理员模式时会强制要求输入一个管理员账户。 5.2设置菜单进入管理员设置界面：触摸唤醒门锁，双击“*”，提示输入管理员指纹或密码，输入密码按“#”确认，或按下管理员指纹进入菜单。 5.3用户设置新增用户 ● 1.新增用户 1.普通用户请输入名称请录入新密码、 2.删除用户 2.管理用户（例：ABC）指纹或磁卡 3.修改用户 3.临时用户备注： 1.新增普通用户与新增管理员用户操作相同。 2.密码长度为6个数字。 3.用户名不超过5个字母。 4.临时用户设置：可查看临时用户列表。 5.低配版本无磁卡。删除用户 ● 1.新增用户...
Page 17 修改用户 ● 1.新增用户按1上翻请录入新密码、修改用户 2.删除用户按2下翻指纹或磁卡 < ABC > 3.修改用户按#确认 5.4安全设置常开模式 ● 1.常开模式<关> 1.常开模式<开> 2.双重验证<关> 2.双重验证<关> 3.双用户验证<关> 3.双用户验证<关> 备注：在常开模式下，无需经过任何验证，直接在室外下压把手即可开锁,验证一次密码、指纹或卡，即可解除常开模式。双重验证 ● 1.常开模式<关> 1.常开模式<关> 2.双重验证<关> 2.双重验证<开> 3.双用户验证<关> 3.双用户验证<关> 备注：开启双重验证功能，需使用同一个账户下的任意两个验证方式（如指纹+指纹，指纹+密码，指纹+卡，卡+密码）进行开门。双用户验证 ●...
Page 18 5.5系统设置时间校准 ● 1.时钟校准 x年x月x日时间校准成功 2.智能家居 00:00:00 3.语言设置备注：当门锁和网关后，网关会自动与门锁校准时间。智能家居 ● 1.时钟校准 1.加入物联网 1.加入物联网✓ 2.智能家居 2.退出物联网✓ 2.退出物联网 3.门铃<未绑定> 3.门铃<未绑定> 3.语言设置备注：加入物联网后即可实现APP控制、联动智能家居系统。加入物联网前需确定网关处于加网状态；如加入不成功可尝试先退出后再加入。门铃绑定方法：进入智能家居页面后按3，等待门锁提示“门铃绑定中”， 20s内连按Wulian门铃的SET键3下，等待门锁提示“门铃绑定成功”即可。语言设置 ● 1.时钟校准 1.中文✓ 1.中文 2.智能家居 2.English 2.English✓ 3.语言设置 5.6门铃功能门锁铃声响起按下门铃按钮推送消息至APP...
Page 19 5.7离家按钮离家按钮按下离家按钮，离家场景随即执行(此功能需先在app绑定)。...
Page 20 5.8APP下载初次使用时，请先安装APP客户端，并仔细阅读产品说明书，并时常关注我司资讯，以便及时更新。智能家居V6...
Page 21 6 高级功能与应急应用 6.1系统恢复恢复出厂设置 ● 如不慎遗忘管理密码或因其他原因无法进入管理模式，可恢复出厂设置。具体步骤如下：在通电的情况下，用顶针长按电池槽下方“恢复出厂设置按键”保持10s，等待语音提示“恢复出厂设置成功”即表示本锁已初始化成功。注意事项：恢复出厂设置以后，初始开门密码恢复为“123456”，所有已添加的密码、指纹或卡片都会被清除，需要重新添加。复位按键 ● 如果在开门时遇到系统无反应、死机等异常，可按下复位按键重启。 6.2应急电源当系统提示”电量低，请更换电池”，此时应及时更换新电池（请勿将不同型号、新旧电池混合使用）。当电池电量耗尽，无法启动系统时，使用移动电源，通过Micro USB 接口（应急电源接口)供电，即可启动系统开门。 Micro USB接口 6.3应急机械钥匙开启在底部插入机械钥匙，旋转90°下压把手即可开门。...
Page 22 7 技术参数产品名称 Wulian洞庭湖系列网络锁颜色流光银/玫瑰金/香槟金/亮红古铜/ 亚红古铜/青古铜/天穹黑开启方式指纹/密码/磁卡/APP/钥匙指纹识别方式半导体电容扫描方式指纹拒真率 < 0.1% 指纹认假率 < 0.001% 用户容量 60位每位用户可录入（除临时用户） 6枚指纹、1个密码、1张NFC 电池寿命 12个月（平均10次/天）外部供电 Micro USB 待机功耗 < 40μA 工作电流 < 400mA 工作温度 -20℃~50℃ 环境湿度 15~90%RH 面板材质锌合金面板工艺电镀/烤漆...
Page 23: Table Of Contents
Contents Product Diagram Packing List Preparation before Installation How to Install Bern Serial IoT Doorlock How to Use Bern Serial IoT Doorlock Advanced Features and Emergency Application Product Speciﬁcations...
Page 24: Product Diagram
1 Product Diagram Back Plate Front Plate LCD Screen Touch-Screen Password NFC Sensing Area Doorbell Factory Reset Key Fingerprint Sensing Area Leave-Home Button Double Lock Knob Emergency Power Supply Port Keyhole Reset Key...
Page 25 1.Front plate（1pc） 8.5x5 Square shaft（1pc） 2.φ8 Connecting bolt（2pcs） 9.Back plate（1pc） 3.Connecting cable of front and 10.Bottom ﬁxing screw（1pc） back plate （1pc） 11.Screw cover（1pc） 4.Big square shaft(1pc） 12.Top ﬁxing screw（1pc） 5.Lock body screw（4pcs） 13.AA battery（4pcs） 6.Lock body（1pc） 14.Battery cover（1pc） 7.Big square shaft spring（1pc）...
Page 26: Packing List
2 Packing List Please check the list carefully after opening the package. If there is something missing, please contact us or our dealer to request. Name Quantity Front Plate Back Plate Lock Body Accessories Package User Manual Hole Drilling Drawing Pencil Warranty Card Magnetic Card...
Page 27: Preparation Before Installation
3 Preparation before Installation 3.1 Conﬁrm Door Open Direction Determine your door open direction according to the diagrams shown below. inside inside outside outside Right outward Right inward inside inside outside outside Left inward Left outward...
Page 28 3.2 Match with diﬀerent open direction The lock can be adjusted to match with right outward/inward or left outward/inward door. Inside Face the bevel towards inside outside Right outward Choose right outward Choose right lock body handed plate inside Face the bevel towards outside outside Right inward...
Page 29 inside Face the bevel towards outside outside Left inward Choose left inward Choose left lock body handed plate inside Face the bevel towards inside outside Left outward Choose left outward Choose left lock body handed plate...
Page 30 3.3 Doorlock Adjustment 3.3.1 Switch the Direction of Lock Body (inward/outward): lock-tongue adjustment. Rotate switch Pull up 1) Pull up the rotate switch (Pic.①)； Pic.① Lock tongue 2) Rotate the lock tongue 180 degrees as 2) in Pic.②； Pic.② 3) Puch the lock tongue inward then loose 2) it, see Pic.③.
Page 31 3.3.2 Switch the Direction of Handle (Left & Right): Clutch Adjustment. remove the screw Pic.① Pic.② 1) Remove the screw to switch handle direction with a Philips screwdriver(Pic.①)； 2) Rotate the handle 180 degrees clockwise and tighten the screw(Pic.②)； 3) Rotate the handle to check whether it works 3) normally(Pic.③).
Page 32: How To Install Bern Serial Iot Doorlock
4. How to install Bern Serial IoT Doorlock 4.1 Drill a Hole 1.Conﬁrm the Doorlock 2.Mark Installation Position Press the hole drilling drawing against Use measuring tape to decide installa- the door and mark all holes with a tion position of 100cm-120cm height pencil.
Page 33 4.2 Lock Body Installation 1. Install Lock Body 2. Fix Lock Body...
Page 34 4.3 Front Plate Installation 1. Install Connecting Bolt 2. Connect Cables and Square Shaft 3. Fix Front Plate 4. Adjust Front Plate Turn the handle up and down for several times to make sure lock tongue works smoothly.
Page 35 4.4 Back Plate Installation 1. Install 5x5 Square Shaft 2. Connect Cables The square shaft is recommended to be put inside the lock body about 1-2cm. 3. Insert 4. Fix Back Plate...
Page 36 5.Adjust the Back Plate 1. Turn the handle up and down for several times to check whether the lock tongue works smoothly. 2. Rotate double lock knob to check whether the lock tongue works smoothly.
Page 37: How To Use Bern Serial Iot Doorlock
5. How to Use Bern Serial IoT Doorlock 5.1 Unlocking Methods Password Unlocking: Touch the lock to wake it up; input your password and press “#” ● to conﬁrm unlocking. Fingerprint Unlocking: Press your ﬁngerprint and unlock the door after successful ●...
Page 38 Edit Users ● 1. Add users Press “1” to upturn Add new password Edit users 2. Delete users Press “2” to downturn ﬁngerprint or <ABC> 3. Edit users Press “#” to conﬁrm magnetic card 5.4 Security Settings Always-open Mode ● 1.
Page 39 ZigBee network. If the connection fails, please exit and try again. Doorbell binding method: enter the Smart Home page, and press”3”, doorlock will say "bell is in binding", then press [SET key] on Wulian bell 3 times within 20 seconds, and doorlock will say "binding succeeds".
Page 40 5.7. Leave-Home Button Leave-Home Button Press the Leave-Home Button to trigger Leave-Home Scene.(This func- tion requires binding the scene with the button in App ﬁrst.)
Page 41 5.8 APP Download For the ﬁrst time use, please download SmartHome or Door Guard, also read user nanual carefully, pay attention to Wulian news and update APP timely. Smart Home V6...
Page 42: Advanced Features And Emergency Application
6 Advanced Features and Emergency Application 6.1 Factory Reset Restore to Default Setting ● If you are unable to enter administrator mode due to forgotten password or other causes, you can initialize the Doorlock (restore it to factory default settings). Take the following steps: Press and hold the “Factory Reset Key”under the battery compartment for 10s with a needle when the Doorlock is powered on;...
Page 43: Product Specifications
7 Product Speciﬁcations 7 Product Speciﬁcations Product Name Wulian Bern Serial IoT Doorlock Color Silver/Rose Gold/Champagne Gold/Bright Red Copper /Matt Red Copper/Bronze/Gun Metal Unlock Ways Finger Print/Password/ Magnetic card/ APP/ Key Fingerprint Identiﬁcation Semiconductor capacitor scanning False Rejection Rate < 0.1% False Acceptance Rate <...
Page 44 www.wuliannanjing.com...
