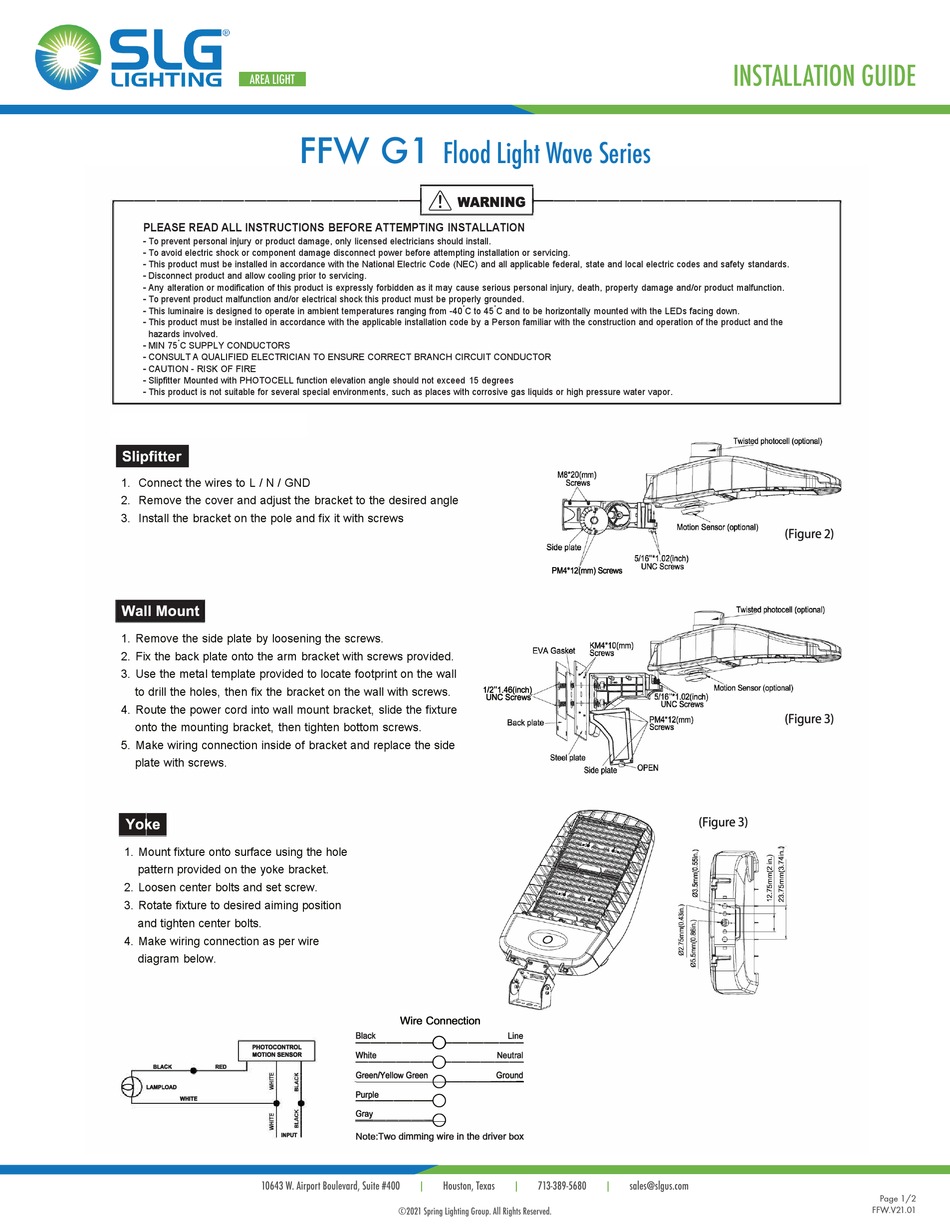

SLG Wave Series Installation Manual

AREA LIGHT
LED FLOOD LIGHT
.-------------------1:
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
- To prevent personal injury or product damage, only licensed electricians should install.
- To avoid electric shock or component damage disconnect power before attempting installation or servicing.
- This product must be installed in accordance with the National Electric Code (NEC) and all applicable federal, state and local electric codes and safety standards.
- Disconnect product and allow cooling prior to servicing.
- Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death, property damage and/or product malfunction.
- To prevent product malfunction and/or electrical shock this product must be properly grounded.
- This luminaire is designed to operate in ambient temperatures ranging from -40
- This product must be installed in accordance with the applicable installation code by a Person familiar with the construction and operation of the product and the
hazards involved.
- MIN 75
°
C SUPPLY CONDUCTORS
- CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR
- CAUTION - RISK OF FIRE
- Slipfitter Mounted with PHOTOCELL function elevation angle should not exceed 15 degrees
- This product is not suitable for several special environments, such as places with corrosive gas liquids or high pressure water vapor.
Installation Guide
1. Connect the wires to L / N / GND
2. Remove the cover and adjust the bracket to the desired angle
3. Install the bracket on the pole and fix it with screws

Wall Mount

1. Remove the side plate by loosening the screws.
2. Fix the back plate onto the arm bracket with screws provided.
3. Use the metal template provided to locate footprint on the wall
to drill the holes, then fix the bracket on the wall with screws.
4. Route the power cord into wall mount bracket, slide the fixture
onto the mounting bracket, then tighten bottom screws.
5. Make wiring connection inside of bracket and replace the side
plate with screws.
ma
1. Mount fixture onto surface using the hole
pattern provided on the yoke bracket.
2. Loosen center bolts and set screw.
3. Rotate fixture to desired aiming position
and tighten center bolts.
4. Make wiring connection as per wire
diagram below.
PHOTOCONTROL
MOTION SENSOR
BLACK RED
LAMPLOAD
WHITE
INPUT
10643 W. Airport Boulevard, Suite #400
FFW G1
Flood Light Wave Series
&
WARNING : - ---------------.
°
C to 45

Wire Connection

��
--------{ 0 )------
Whi t e
-------<Q1------
Green/Yell ow Green ---
Q1-
Purple
Q
----'----
_G_ra � ----- 0
y
Note:Two dimming wire in the driver box
| Houston, Texas
©2021 Spring Lighting Group. All Rights Reserved.
°
C and to be horizontally mounted with the LEDs facing down.
PM4.12(mm) Screws
1/2"1.46(inch)
LINC Screws
Li �
Neutral
G_r_ou_n d
- _
| 713-389-5680 | sales@slgus.com
INSTALLATION GUIDE
Installation Guide
(Figure 2)
(Figure 3)
(Figure 3)
FFW.V21.01
Page 1/2
