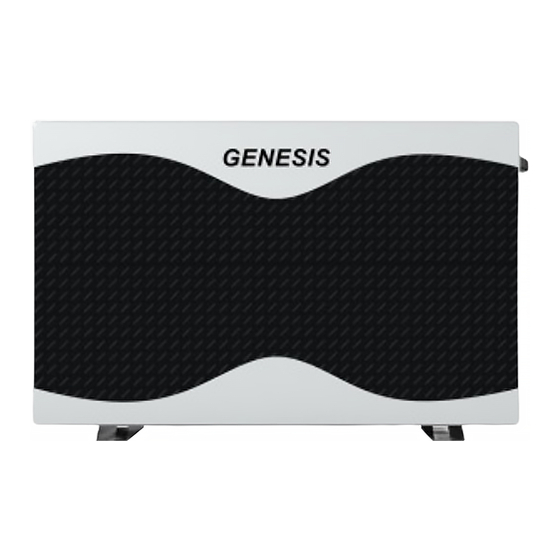

Genesis BYC-007TG1 Installation & Operation Manual

Full inverter swimming pool heat pump

Hide thumbs

Table Of Contents

Installation & Operation Manual

Installation &Operation Manual

Full Inverter Swimming Pool Heat Pump

Thank you very much for purchasing our product, please keep and read this manual carefully

before you install the heat pump.

Unit Installed by:___________________________________________________________

Unit Install date:___________________________________________________________

Unit Serial Number:________________________________________________________

Table of Contents

Need help?

Do you have a question about the BYC-007TG1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Genesis BYC-007TG1

Page 1 Installation & Operation Manual Installation &Operation Manual Full Inverter Swimming Pool Heat Pump Thank you very much for purchasing our product, please keep and read this manual carefully before you install the heat pump. Unit Installed by:___________________________________________________________ Unit Install date:___________________________________________________________ Unit Serial Number:________________________________________________________...
Page 3 Packing List Name Qty. Remark Installation & Operation Manual Wire-controller Wire controller box and sponge pad (to be installed on the heat pump shell) Drain-pipe (2 m) Drain-pipe connector Rubber shock absorber Heat Pump Unit (The pipe connector has been installed on the machine) Please keep installation manual safe and read it carefully before using.
Page 4: Table Of Contents
Table of Contents Accessories……………................5 Safety......................6 Heat pump working principle..............7 Installation of the unit................9 Installation of the pipeline..............12 Installation of optional accessories............14 Installation and operation of electric devices........15 Instruction for operation ...............19 Wireless/Remote control...............24 Initial operation and settings ..............33 Operation and maintenance..............34 Fault analysis and solving………………..........36 Technical parameters................37 After-sale service..................38...
Page 5: Accessories
1. Accessories Each unit produced by our factory comes with the following accessories: Name Qty. Installation & Operation Manual 1 PC User Guide to install the unit Wire controller 1 PC Used for the machine operation interface Drain-pipe 1 PC Used for draining the condensate water Drain-pipe connector 1 PC...
Page 6: Safety
2. Safety Range of application: 1.Power supply: 220V-240V/1N~50Hz. 2.Ambient temperature: -15°C〜43°C ! 3.Working water temperature: Min. inlet water temperature 8°C,Max. outlet Water Temperature 40°C. If the system is always used beyond the available water range, please contact with manufacturer. ● The installation should be done by the professional persons, to prevent leaking, electric shock or fire.
Page 7: Heat Pump Working Principle
● When the unit needs to be removed or re-installed, please ensure that the work is carried out by qualified professionals. If the installation is not correct, it may cause unit operation failure, electric shock, fire, hurt, leaking, etc. ● Please ensure that any repairs carried out by qualified professionals: failure to make proper repairs could cause unit operation failure, electric shock, fire, hurt, leaking, etc..
Page 8 3.2 Air source heat pump working principle 4 way valve Water inlet Condenser Water Outlet Gas-liquid Compressor separator Filter Filter Expansion valve Figure 1 (Heat energy) = Q (Compressor consumption) +Q (Heat energy absorbed from ambient environment) - 8 -...
Page 9: Installation Of The Unit
4. Installation of the unit 4.1 Installation Guidelines ● Avoid installations in locations containing mineral oil. ● Avoid installation in locations where the air contains salt or other corrosive gases. ● Avoid installation in locations with serious power supply voltage fluctuation. ●...
Page 10 4.3 Installation space Please observe the space requirements indicated below for optimal operation and maintenance. Figure 3. Horizontal installation space requirements!mm" - 10 -...
Page 11 4.4 Heat pump dimensions Figure 4 Heat pump dimensions Size(mm) Model No. BYC-007TG1 BYC-010TG1 BYC-013TG1 BYC-017TG1 BYC-021TG1 4.5 Installation base for heat pump Please refer to Figure 5. A n c h o r b o lt Anchor bolt Screw nut/washer Drainage tray !"#$ %&'(...
Page 12 4.6 Lifting ●Please use four or more soft lifting belts to move the sets (see Figure 6). ●Please use protective plates on the surface of the units when handling to avoid scratches and deformation. ●Double-check that the support base is strong enough before fixing the unit. ●...
Page 13 Figure 7 5.2 Instructions 5.2.1 Symbols 5.2.2 Pipeline installation diagram Water temp sensor wire "! Feeding water Swimming Pool Controller Drainage Pump signal wire Heat Pump Pump Drainage Figure 8 Diagram!Single unit for reference" ●It is recommended to install a one-way valve for each unit to prevent water back flow. ●Multiple units can be installed as part of a system, but each unit should be controlled independently.
Page 14: Installation Of Optional Accessories
Model No. Inlet Outlet BYC-007TG1 BYC-010TG1 BYC-013TG1 DN50 DN50 BYC-017TG1 BYC-021TG1 ●The pipe pressure and flow rate should be calculated before selecting the diameter of the pipe, pressure drop range is 0.3〜0.5 kgf/cm2(3〜5m"head pipe flow rate range is 1 .2〜2. 5 m/s.
Page 15 6.2 Water pipe selection ●The selection of the water pipe should be based on the actual system specifications ●The flow switch can be installed horizontally or vertically. If installed the direction of the water flow must be upwards and NOT downwards. ●...
Page 16 7.2 Electrical Wiring Specification Model Electrical Wiring Specification BYC-007TG1 BYC-010TG1 BYC-013TG1 3*2.5 mm² BYC-017TG1 BYC-021TG1 Terminal Terminal cable max. 4 mm² POWER SUPPLY Figure 14 7.3 Circulation pump installation The heat pump only provides a signal for the circulation pump, A separate A.C. Contactor is required to connect the circulation pump.
Page 17 Figure 15 Figure 16 - 17 -...
Page 18 7.4 Electric wiring diagram COMP : COMPRESSOR GND : GROUND AMBT: AMBIENT TEMPERATURE SENSOR WFS: WATER FLOW SWITCH LOW : LOW PRESSURE SWITCH HIGH : HIGH PRESSURE SWITCH COIL: EVAPORATOR COIL TEMPERATURE OWT/INWT: INLET / OUTLET WATER SENSOR TEMPERATURE SENSOR Figure# Electrical wiring diagram - 18 -...
Page 19 8. Operating Instructions Controller Operation Press button to change between Heating, Cooling and Auto modes In heating mode: lights up Auto Mode：When heating in Auto mode, light up When cooling in Auto mode, light up In cooling mode： light up Icon meaning: ------------- Cooling mode, when set to cooling, this icon is always on;...
Page 20 Temperature Setting ü In the main interface, press to adjust temperature setting. At the same time, the SET icon will light up. It will automatically exit after 3s without operation. Inquiry and Setting of User Parameters *In the main interface, press and hold for 3 seconds to enter the user parameter query interface.
Page 21 Time Setting ü Press and hold for 5 seconds to enter real-time setting. The Hour & Minute will flash in the same time. ü Then press again to enter Hour setting, the Hour icon will flash only, then press to modify the value. ü...
Page 22 setting. Then press again to enter Timer Off setting of Timer group 1 ü After that, press to confirm the Timer setting. Then press enter into setting of Timer group 2, the setting process is the same to Timer group 1. ü...
Page 23 2. Parameters 2.1 Press and hold“＋”for 3 seconds to enter temperature parameter checking status, then press “+”or“-”to select parameters. Parameter remark Name Exhaust temperature Gas return temperature Water inlet temperature Water outlet temperature Evaporator coil temperature Ambient temperature Reserved Reserved Reserved Reserved Reserved...
Page 24 Fault code history Protocol version Software version 2.2 User parameter checking Press“mode”button 3 seconds to enter parameter checking status, then press “+”or“-”to select parameter. Parameter description range default heating 20℃～60℃ 26℃ Adjustment of temperature difference 2℃～18℃ 2℃ before restart Adjustment of temperature difference 2℃～18℃...
Page 25 2.3. Error Code Error Code Description Remark exhaust temperature sensor failure evaporator coil temperature sensor failure Gas return temperature sensor failure return water temperature sensor failure water outlet temperature sensor failure reserved ambient temperature sensor failure water flow switch failure controller PCB and inverter driver communication failure Controller PCB EEPROM failure inverter driver EEPROM failure...
Page 26 Exploded View - 26 -...
Page 27: Wireless/Remote Control
8.Wireless / remote control Download and install the software： User registration When using the "smart life" software for the first time, user registration is required. Click the "Create New User" link to enter the registration interface. If you already have an account, just click login.
Page 28 set password Enter confirmation code Enter the phone number you wa nt to register and click Next User login After successful registration, the software will jump to the login interface or directly log in successfully, enter the correct "user name" and "password" to log in. Choose the country Enter the username Enter password...
Page 29 Need to select "Agree" - 29 -...
Page 30 The phone needs to be connected to the network through the WIFI network Turn on "WLAN" Connect to available Wi-Fi networks This WIFI is not the WIFI in the module but the WIFI that can be connected to the Internet; After users log in to the software, they can add devices Device binding Click "+"...
Page 31 Click to enter the "Add Device Type" interface Choose "Icon Logo" After completing the "Select Device Type", enter the "Add Device Interface", and the network configuration methods are divided into "default mode (WI-FI fast connection)" and "compatibility mode (hotspot distribution network)"...
Page 32 Enter the Wi- Fi password The remote controller simultaneously press the up key + mode key for 3 Enter and seconds to enter the click to "default mode" confirm distribution network Device name can be modified Enter the password and confirm it will jump to the connection...
Page 33 If the network distribution fails, the APP will display the page as shown in the figure, you can choose to re-add or view the help. Compatibility mode ： Select "Other Ways" in the Add Device interface Press and hold the timing key +,down key +,power key simultaneously...
Page 34 Click Go to connect and jump to the Wi-Fi interface, select Wi-Fi with the words SmartLife- After selecting and connecting, return xxxx to the APP interface and enter the network distribution process Enter the correct password and click confirm - 34 -...
Page 35 Control introduction Successfully bound device Click to enter control Equipment details Set temperature, and current inlet water temperature display temperature adjustment Timing setting, can set Switch machine the timing on or off control Equipment working mode selection - 35 -...
Page 36 9. Adjusting and Initial operation 9.1 Attention ●Do adjustment after electrical safety inspection. ●After the power is switched on, start the test running of heat pump, to see if it can function well. ●Forced operation is forbidden, because it is very dangerous to work without protector. 9.2 Preparation Before Adjustment ●Check that the system is installed correctly.
Page 37: Operation And Maintenance
10. Operation and maintenance 10.1 The heat pump should be installed and operated by qualified professionals. To ensure the continued correct functioning of the system it is recommended that it should be checked and maintenance should be carried out at regular. During maintenance, please pay attention to the points below: ●Check that all parameters are normal during system operation.
Page 38 10.4 To remove the compressor, please do the following ●Turn off the power supply ●Remove the refrigerant from the low pressure end; make sure you reduce the exhaust speed, and avoid leakage of frozen oil. ●Remove the compressor air suction and exhaust pipe. ●Remove the compressor power cables.
Page 39 11. Fault analysis and elimination method - 39 -...
Page 40: Technical Parameters
12. Technical parameter Model No. BYC-007TG1 BYC-010TG1 BYC-013TG1 BYC-017TG1 BYC-021TG1 BYC – 030TG1 Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out Heating Capacity（kW) 7.81～1.78 10.58～2.41 13.64～3.11 17.21～3.91 21.43～4.86 30.06~6.84 Power Input（kW) 1.13～0.11 1.52～0.15 1.95～0.19 2.47～0.25 3.08～0.31 4.32~0.43...
Page 41: After-Sale Service
13. After-sale service If your heat pump does not operate normally, please turn off the unit and cut off the power supply at once, then contact our service center or technical department. Contact Details GREENSTAR SOLUTIONS 3/30 HINES ROAD O’CONNOR 6163 08 93313868 admin@greenstarsolutions.net.au www.greenstasolutions/service...
