Summary of Contents for Nordic AP-L0236

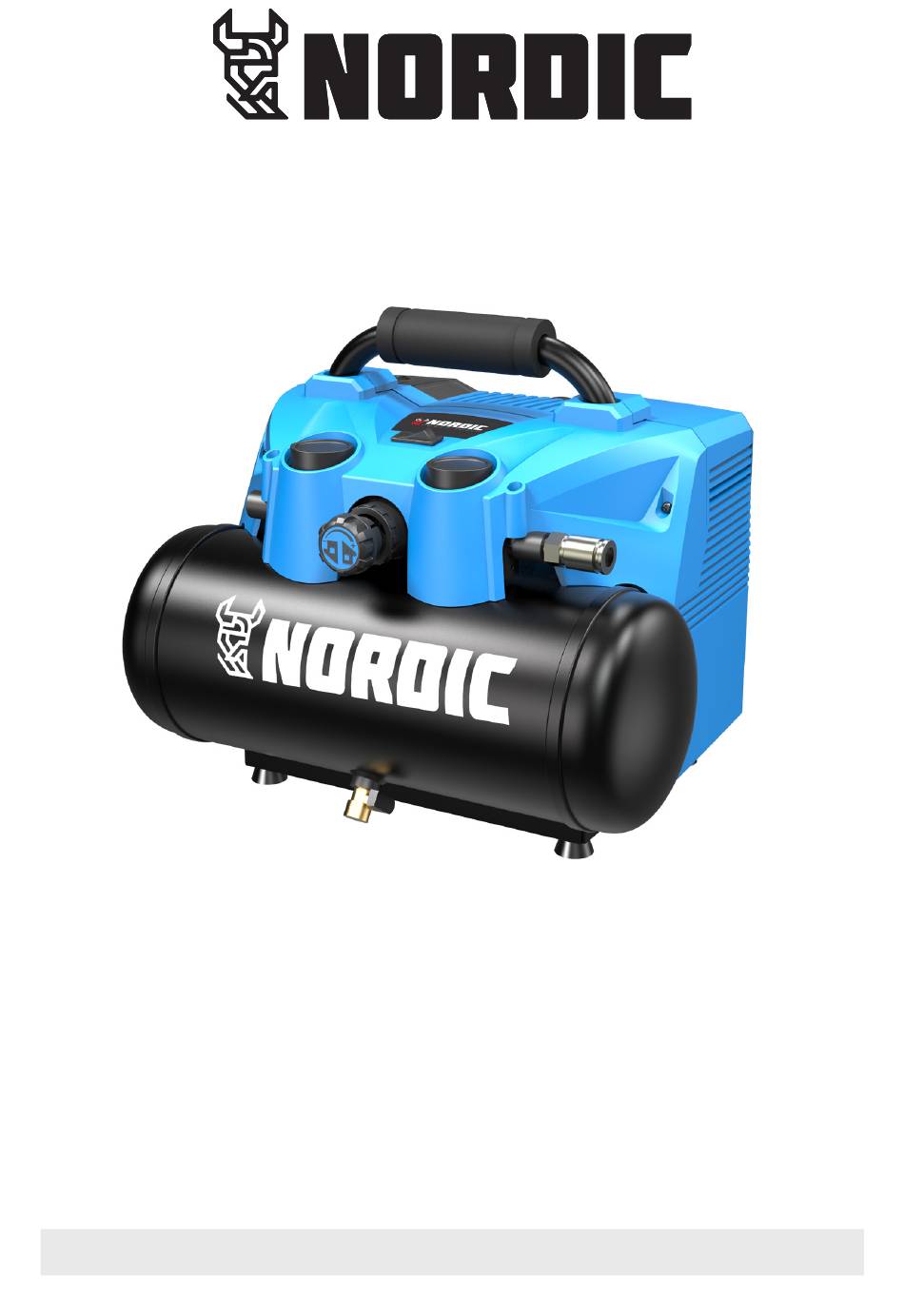

- Page 1 36V CORDLESS AIR COMPRESSOR OPERATING MANUAL AP-L0236...
-
Page 2: Product Specification
NORDIC PRODUCT SPECIFICATION Voltage: Gauges: Digital Readout (PSI) Max Pressure: 116psi Max Airflow: 90 L/min Tank Capacity: GENERAL POWER TOOL SAFETY WARNINGS Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. -
Page 3: Personal Safety
NORDIC 2.3 PERSONAL SAFETY • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury. -
Page 4: Air Compressor Safety Warnings
NORDIC 2.5 SERVICE Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards. 2.6 AIR COMPRESSOR SAFETY WARNINGS • Inspect the Air compressor before use and do not use if any of the components are broken, burnt, melted, wet or damaged •... -
Page 5: Additional Safety Instructions For Batteries And Chargers
NORDIC • Risk of Bursting. Carefully monitor objects during inflation. • To reduce the risk of over inflation, use a reliable pressure gauge periodically during inflation. The pressure gauge on the air pump is for reference only and is therefore not binding for exact values. - Page 6 NORDIC SYMBOLS In this manual and/or on the machine the following symbols are used: Denotes risk of personal injury or damage to the tool. Read manual before use Wear eye protection Wear ear protection Wear safety gloves Wear respiratory protection In accordance with essential requirements of the European directive(s) Class II - The machine is double insulated;...
-
Page 7: Product Accessories
NORDIC 6. PRODUCT ACCESSORIES 1. Schrader inflator 2. Sport ball Needle 3. Inflatable attachment 4. Schrader to Presta convertor 5. Battery (not included) 6. Charger (not included) 7. BEFORE YOU START UNPACKING This product has been shipped completely assembled. •... -
Page 8: Automatic Shut-Off
NORDIC NOTE: After preset pressure has been set, pressure setting stays in the gauge memory for 180 seconds. To recall the previous pressure setting for up to 180 seconds after inflation, Press the + or - button. To reset pressure, press and hold the mode button. -
Page 9: Switch Off The Compressor
NORDIC FILL THE FILLING CONTAINER The filling of the tank begins. The pressure switch is set at the factory to a pressure of 8 bar. As soon as this pressure value is generated by the compressor (maximum pressure), the pressure switch interrupts the power supply and the compressor drive unit stops pumping air into the tank. -
Page 10: Cleaning And Maintenance
NORDIC 9. CLEANING AND MAINTENANCE Always disconnect the plug from the socket before carrying out any cleaning work. 9.1 CLEANING • Keep all air gaps and engine housing clean as far as possible. • Wipe the device with a clean cloth or blow it with compressed air. - Page 11 NORDIC On/Off Switch Connection Point System valve...
- Page 12 NORDIC...
