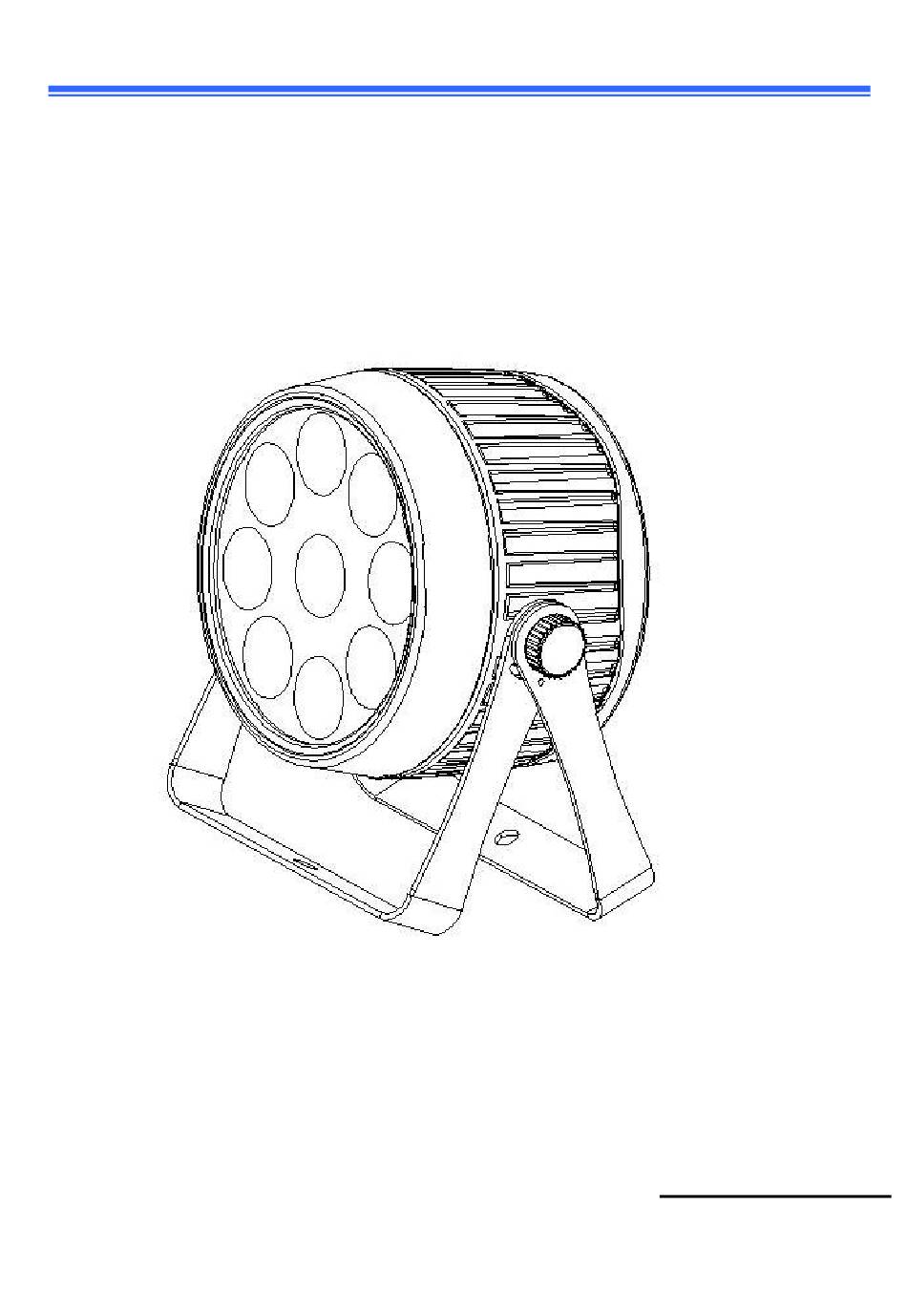

- Page 1 HC-035series 9*10w RGBW Battery Wireless Par User manual Please read the instructions carefully before use...
-
Page 2: Safety Instructions
TABLE OF CONTENTS 1. Safety Instructions..................... 2 2. Technical Specifications...................4 3. How To Control The Unit..................5 4. Remind........................12 statement product well capability intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included guarantee, also can not be responsible for any malfunction &... - Page 3 Disconnect main power before replacement or servicing. Make sure there are no flammable materials close to the unit while operating as it is fire hazard. Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always by taking its base.
-
Page 4: Technical Specifications
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged. Caution: There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact your nearest dealer. -
Page 5: How To Control The Unit
Data In/Out socket: 3-pin XLR sockets Power Socket: Powercon in/out Protection Rating: IP65 Features * OLED display * Built-in wireless DMX * Smart charging and charging management. * Option for change LED Power (Eco, Medium, High power) * Battery Charging Information and Wireless Setting in Display * Emergency Mode (enable / disable) * DMX hold （on/off）in display 3. - Page 6 Turn on operation: when in charging or turn off, press "MENU" for more th an 4s,then screen will display logo and model of products, there are "MENU","UP"."DOWN" for your selection to choose the function, press" ENTER" to confirmed and enter the next menu,press "MENU" coul d back to the last menu.
- Page 7 White balance RGBW ( 0-255) Show Battery Yes / No Display sleep Open/5Sec/10Sec/15Sec Dimmer option Normal - lowest Auto power Off / On IRC setting Yes/No W-DMX Setting Yes/No W-DMX FREQ 1CH - 7CH Power Setting High / Medium / Low Emergency Lamp Yes / No DMX Hold...
- Page 8 * About “DMX hold” function, when set “Yes” on it, it would keep the former status when signal suddenly broken. * About checking the power information. A-when light on, you can see the info on the upper right corner of the display. B-when light off, press the menu button lightly,will show it in display.
- Page 9 How to connect with WiFi: 1.Scared the below QR code by phone, down load “ LED WiFi “ APP 2.Enter into “ WiFi Mode “ in the lights 3.Enter into “ WLAN “ of the phone, choose “ LED_*** ” ( *** means number ) 4.Open “...
- Page 10 button first. 6. “+” and“-” button, they can control the speed of colors change(STROBE AND FADE) or light and dark. DMX channel´s functions and values (5/9 DMX channels): DMX512 Function Value 0~255 Red dimmer 0~255 Green dimmer 0~255 Blue dimmer 0~255 White dimmer 0~19...
- Page 11 DMX512 Function Value 0~255 Total dimmer for CH11 (0~11) Strobe off 10~255 Strobe：10 lowest，255 fastest 0~255 Red，the max depend on total dimmer 0~255 Green，the max depend on total dimmer 0~255 Blue，the max depend on total dimmer 0~255 White，the max depend on total dimmer Dimmer model 10~29 Color choose...
-
Page 12: Remind
0~19 Normal model 20~39 Dimmer curve （ slow ) 40~59 Dimmer curve （ slower ) 60~255 Dimmer curve （ slowest ) 4. Remind Very important : Please keep the lamps dry if do not use them for a long time.
