- Page 1 EQ-4000BT v2 4-Band Parametric Equalizer Owner’s Manual Earthquake Sound Corporation 2727 McCone Avenue Hayward CA, 94545. USA Tel: 510-732-1000 | Fax: 510-732-1095 www.earthquakesound.com | www.earthquakesoundshop.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Thank you for choosing Earthquake Sound’s EQ-4000BT v2 equalizer for superior enhancement of your mobile audio system. With proper installa- Page 2 Care and Maintenance tion and responsible listening, your equalizer(s) will give you years of near... -
Page 3: Front Panel Overview

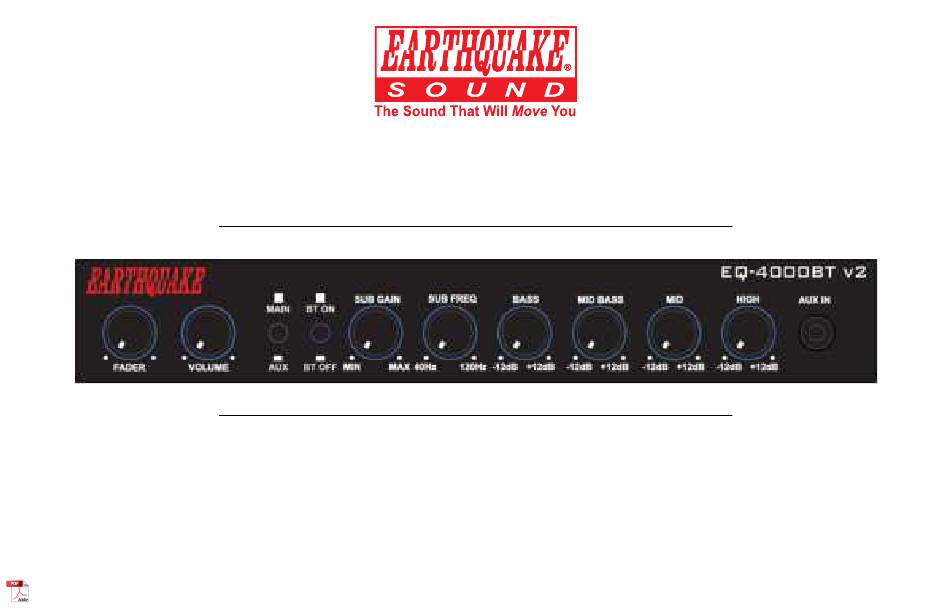

Push button to switch between the MAIN input and AUX input. nel, so that the subwoofer(s) can run on a separate amplifier or Note that the EQ-4000BT v2 has both front mounted and back separate channels of a multi-channel amplifier. The crossover mounted auxiliary inputs. -
Page 4: Wiring Configurations
WIRING CONFIGURATIONS TO HEAD UNIT POWER/12VDC TO AMP REMOTE TO HEAD UNIT GROUND OR VEHICLE CHASSIS STOCK OR AFTER AUXILIARY MARKET HEAD UNIT SOURCE (RADIO, STEREO) SUB - USUALLY PLACED IN THE TRUNK 4 All specifications are subject to change without notice. www.earthquakesound.com... -
Page 5: Mounting Instructions
MOUNTING INSTRUCTIONS DASH BOARD Mounting Ears Dash Board Mounting Ears Equalizer 5/16” (7.9375mm) 3/4” (19.05mm) Machine Screws Tapping Screws 5 All specifications are subject to change without notice. www.earthquakesound.com... -
Page 6: Input Gain Settings
Note that the input gain level depends on the sources’ maximum signal strength (expressed in Voltage). Your installer will need to know the output voltage of the source unit(s) in order to set the input gain accordingly. Below, please find sample settings of the input gain according to the source units’ output voltages: EQ-4000BT v2 TECH SUPPORT Phone: 510-732-1000 E-mail: tech@earthquakesound.com... -
Page 7: Warranty Guidelines
Ship product to: plus shipping charges back to customer. Earthquake Sound Corp. (C) Earthquake agrees to repair or replace - at our option - all such defective 2727 McCone Avenue. products/parts subject to the following provisions: Hayward, CA 94545 •... -
Page 8: Features & Specifications
Copyright © Earthquake Sound Corporation Dimensions (H x W x D): 1" x 7" x 4-1/4" (Without Face Plate) Earthquake Sound reserves the right to amend details of the specifications without notice. 8 All specifications are subject to change without notice.
