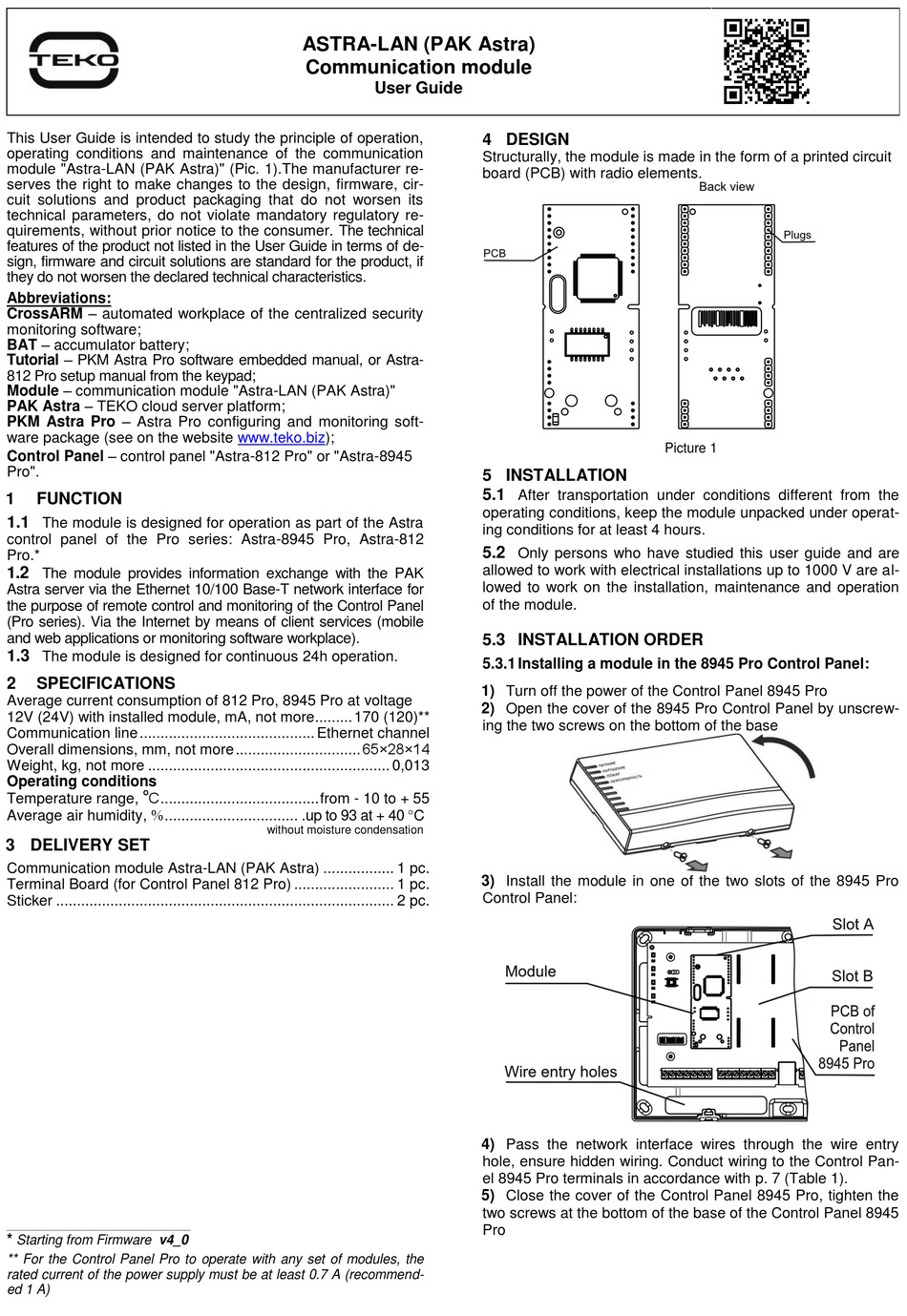

teko ASTRA-LAN User Manual

This User Guide is intended to study the principle of operation,
operating conditions and maintenance of the communication

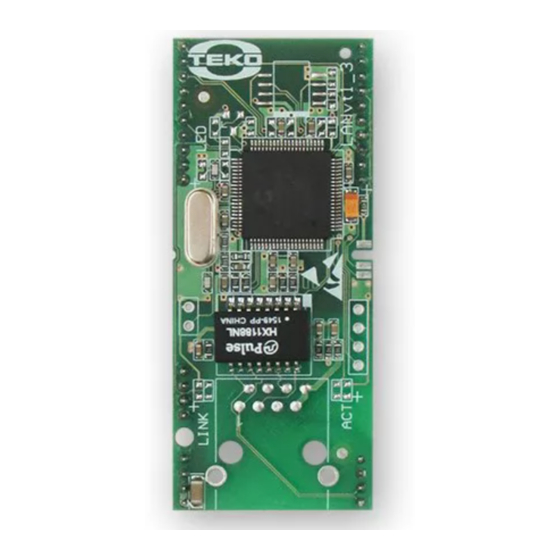

module "Astra-LAN (PAK Astra)" (Pic. 1).The manufacturer re-
serves the right to make changes to the design, firmware, cir-
cuit solutions and product packaging that do not worsen its
technical parameters, do not violate mandatory regulatory re-
quirements, without prior notice to the consumer. The technical
features of the product not listed in the User Guide in terms of de-
sign, firmware and circuit solutions are standard for the product, if
they do not worsen the declared technical characteristics.
Abbreviations:
CrossARM – automated workplace of the centralized security
monitoring software;
BAT – accumulator battery;
Tutorial – PKM Astra Pro software embedded manual, or Astra-
812 Pro setup manual from the keypad;
Module – communication module "Astra-LAN (PAK Astra)"
PAK Astra – TEKO cloud server platform;
PKM Astra Pro – Astra Pro configuring and monitoring soft-
ware package (see on the website www.teko.biz);
Control Panel – control panel "Astra-812 Pro" or "Astra-8945
Pro".
1

FUNCTION

1.1
The module is designed for operation as part of the Astra
control panel of the Pro series: Astra-8945 Pro, Astra-812
Pro.*
1.2
The module provides information exchange with the PAK
Astra server via the Ethernet 10/100 Base-T network interface for
the purpose of remote control and monitoring of the Control Panel
(Pro series). Via the Internet by means of client services (mobile
and web applications or monitoring software workplace).
1.3
The module is designed for continuous 24h operation.
2

SPECIFICATIONS

Average current consumption of 812 Pro, 8945 Pro at voltage
12V (24V) with installed module, mA, not more ......... 170 (120)**
Communication line .......................................... Ethernet channel
Overall dimensions, mm, not more .............................. 65×28×14
Weight, kg, not more .......................................................... 0,013
Operating conditions
о
С ...................................... from - 10 to + 55
Temperature range,
Average air humidity,  ................................ .up to 93 at + 40 C

3 DELIVERY SET

Communication module Astra-LAN (PAK Astra) ................. 1 pc.
Terminal Board (for Control Panel 812 Pro) ........................ 1 pc.
Sticker ................................................................................. 2 pc.
__________________________________________________
*
Starting from Firmware v4_0
** For the Control Panel Pro to operate with any set of modules, the
rated current of the power supply must be at least 0.7 A (recommend-
ed 1 A)
ASTRA-LAN (PAK Astra)
Communication module
User Guide
without moisture condensation

4 DESIGN

Structurally, the module is made in the form of a printed circuit
board (PCB) with radio elements.

5 INSTALLATION

5.1
After transportation under conditions different from the
operating conditions, keep the module unpacked under operat-
ing conditions for at least 4 hours.
5.2
Only persons who have studied this user guide and are
allowed to work with electrical installations up to 1000 V are al-
lowed to work on the installation, maintenance and operation
of the module.
5.3 INSTALLATION ORDER
5.3.1 Installing a module in the 8945 Pro Control Panel:
1) Turn off the power of the Control Panel 8945 Pro
2) Open the cover of the 8945 Pro Control Panel by unscrew-
ing the two screws on the bottom of the base
3) Install the module in one of the two slots of the 8945 Pro
Control Panel:
4) Pass the network interface wires through the wire entry
hole, ensure hidden wiring. Conduct wiring to the Control Pan-
el 8945 Pro terminals in accordance with p. 7 (Table 1).
5) Close the cover of the Control Panel 8945 Pro, tighten the
two screws at the bottom of the base of the Control Panel 8945
Pro
Picture 1
