FOUNDATIONS FOR THE TRACKER SF70-1EH
This option consist to join, two by two, the trackers who have their axis aligned from
north to south , by a beam-IPN 140.
Advertisement
Table of Contents
Summary of Contents for Feina SF70-1EH

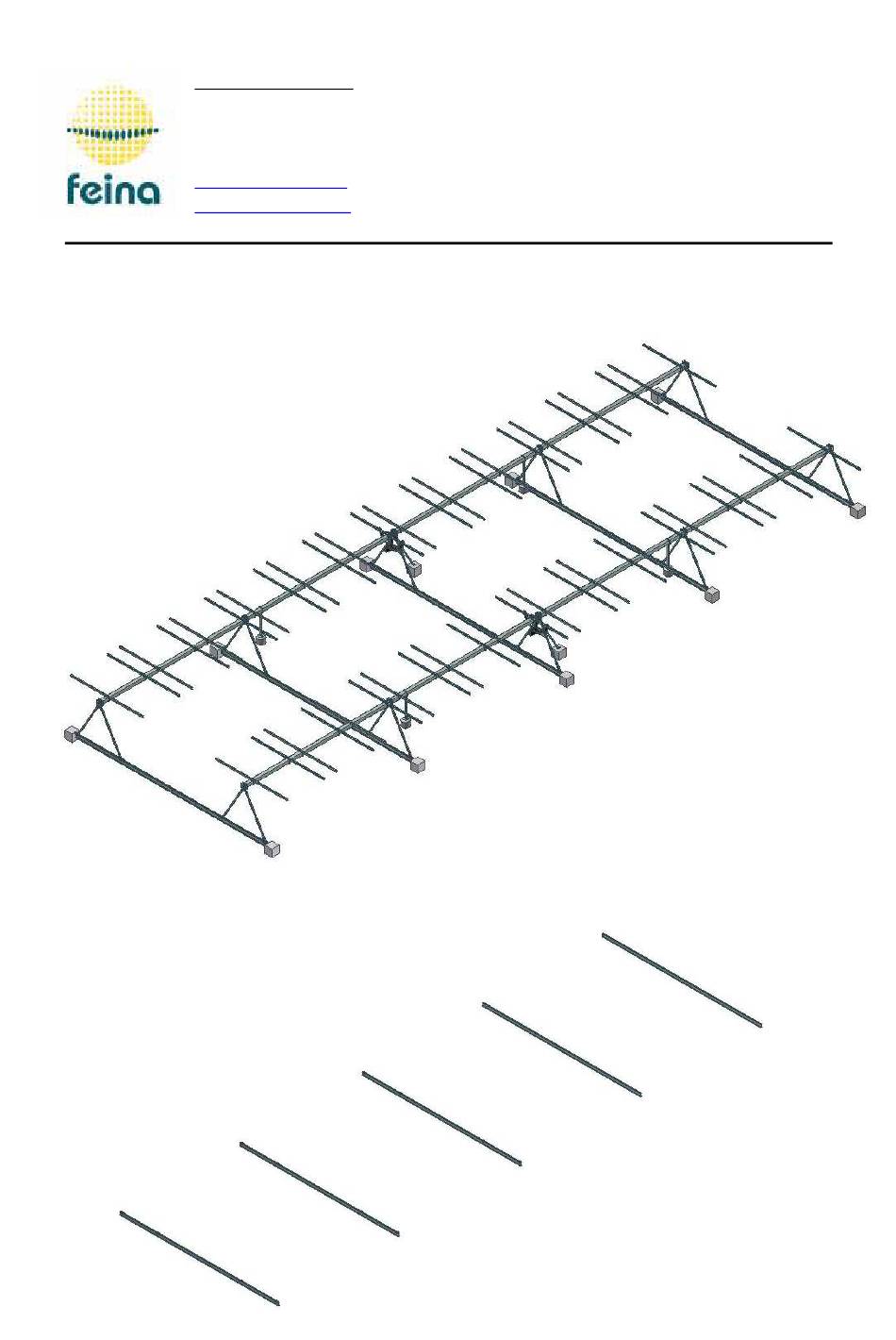

- Page 1 08250 Sant Martí de Torroella (Barcelona) Tel: 034 93 8361827 / 034 93 8751001 feina@tracker.cat www@tracker.cat FOUNDATIONS FOR THE TRACKER SF70-1EH This option consist to join, two by two, the trackers who have their axis aligned from north to south , by a beam-IPN 140.
- Page 2 First place on the ground 5 beams at the distances listed in the manual of the SF70-1EH tracker, and be sure that they are totally flat. The length of each beam must be the wheelbase of the trackers and 2.2 meters more .
- Page 3 Of course, is not necessary that blocks will be parallelepipeds , can be left as spilled by the mixer. Then, at the central leg, also is necesary pours a least 100 kg of concrete, to be sure than the follower does not move laterally. The leg may be buried in the concrete. The accuracy mounting the beams and the trackers is not much necesary, but should take care that the maximum angle betwen bars who forms the follower axis should be not more than 0.7 º.
