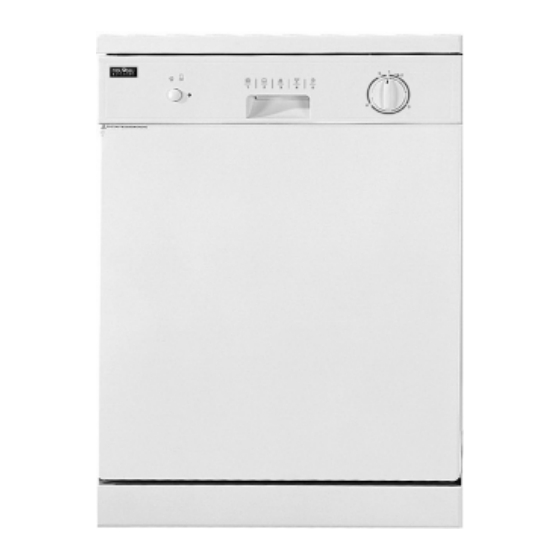

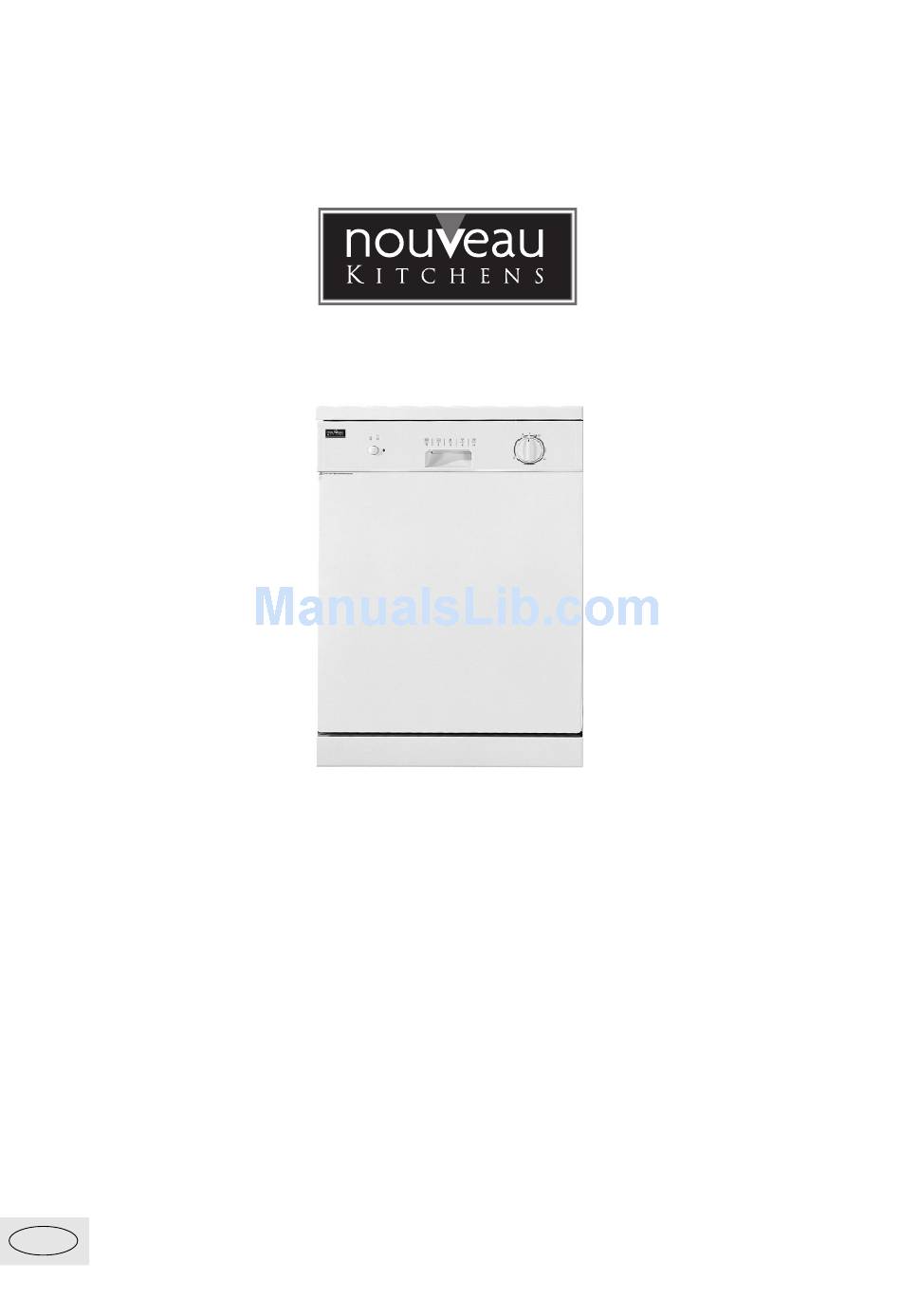

- Page 1 12-Place Setting Dishwasher HDW100WH HDW100SS Code: 0120504810...
-
Page 2: Safety Is Very Important
- Check to make sure that the appliance is not damaged. If in doubt, contact the retailer it was purchased from. - This dishwasher is designed for washing household dishes and cooking utensils. - Do not install this appliance outdoors exposed to the rain and elements, even if a roof covers the area. -
Page 3: Close-Up View (Interior)
Close-up View (Interior) Upper Rack Rack Height Adjustor Top Spray Arm Lower Rack Technical Characteristics Width Depth Height Capacity Mains water pressure Power voltage Total absorber power Bottom Spraye Arm Washing Filter Detergent and Rinse Aid Dispenser 12 standard place settings 220-240V~ 50Hz 60 cm 60 cm... -
Page 4: Detergent And Rinse Aid
Detergent and Rinse Aid Detergent Detergent specifically intended for use with dishwashers must be used. The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Wash Cycle Table." The detergent dispenser is located on the inside panel the door. -
Page 5: Loading The Dishwasher
Loading the Dishwasher Before placing the dishes in the dishwasher, remove the larger Lower Rack Upper Rack food particles to prevent the filter from becoming clogged. If the pots and pans have baked-on food that is extremely hard to remove, we recommend they are soaked before washing. This will eliminate the need for extra wash cycles. -
Page 6: Turning On The Appliance
OFF button, turn off the water supply and open the door of the dishwasher. Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better. -
Page 7: Energy Saving Tips
Energy Saving Tips It is important to try and run the dishwasher when it is fully loaded to save on energy. Rather than run a full cycle for a half load, you can run the rinse and hold cycle which will prevent odours from forming and food from caking onto the dishes. -
Page 8: Wash Cycle Table
Wash Cycle Table CYCLE TYPE OF LOAD Very dirty dishes, pots and pans. Intensive (Not to be used with delicate Wash items). Normally load of dirty dishes, pots and pans. Standard Normal daily cycle. Wash For dishes that only require a rinse and dry. -
Page 9: Cleaning And Special Maintenance
Troubleshooting If the dishwasher does not function or does not function correctly, check the following before calling for assistance. The Dishwasher Does Not Start - Is the plug pushed into the socket correctly? -
Page 10: Installation
Levelling the Appliance Once the appliance is positioned, adjust the feet (screwing them in or out) of level the dishwasher. The appliance should not be inclined more than 2 degrees to ensure proper performance. Cold Water Connection Connect the cold water supply hose to a threaded 3/4 bsp connector and make sure that it is fastened tightly (see fig.1). - Page 11 Installation Diagram WR: Wiring box IG: Power switch IS: Door switch P1: Water level switch LS: Power indicator PS: Drain pump EV1: Inlet valve D-Ed: Dispenser TS.50: 50°C Thermostat ITR: Overheat thermostat R: Heater ML: Washing motor MT: Timer motor IAQS: overflow switch...
