Page 2: Know Your Device

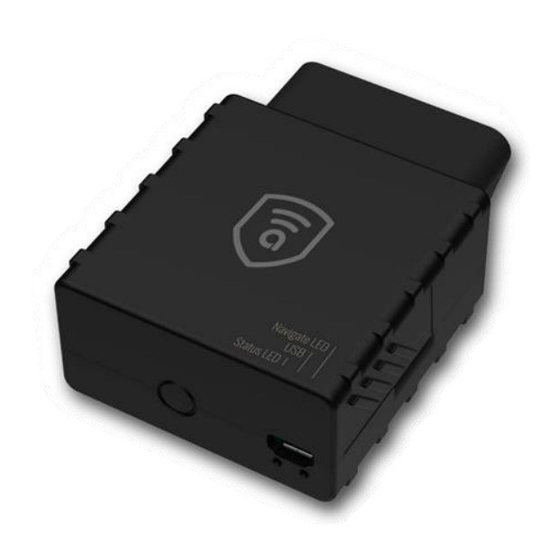

Know your device AIT 450-M Device view Pinout AIT 450-M socket pinout Pin name Description number PWM_BUS+/VPW GND (-) Ground GND (-) Ground CAN_H CAN high K-Line PWM_BUS- CAN_L CAN low L-Line VCC (12 - 30)V DC(+) Power supply (+10-30 V DC) AIT 450-M socket pinout... -
Page 3: Set Up Your Device
Set up your device How to insert Micro-SIM card and connect the battery 1. Gently remove AIT 450-M cover using plastic pry tool from both sides. 2. Insert Micro-SIM card as shown with PIN request disabled or read our Wiki how to enter it later in Amber Configurator. -
Page 4: Mounting Recommendations
Mounting recommendations Connecting the device to the vehicle: Find OBDII connector in your vehicle (Figure 10. Most common OBDII connector locations.). Before connecting the device to the OBDII socket, make sure that ≥3A fuse is present on OBD connector power supply. - Page 5 Characteristics Basic characteristics Module Name AIT 450-M Technology LTE CAT M1/CAT NB1/EGPRS/GNSS/BLUETOOTH GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, GNSS DGPS, AGPS Receiver 33 channel Tracking sensitivity -165 dBM Accuracy < 3 m Hot start < 1 s Warm start <...
-
Page 6: Safety Information
Memory 128MB internal flash memory Physical specification Dimensions 67,2 x 49,6 x 25 mm (L x W x H) Weight 63 g Operating environment Operating temperature (without -40 °C to +85 °C battery) Storage temperature (without battery) -40 °C to +85 °C Operating humidity 5% to 95% non-condensing Ingress Protection Rating... -
Page 7: Certification And Approvals
Warranty Amber connect guarantees its products to be free of any manufacturing defects for a period of 24 months. With additional agreement we can agree on a different warranty period, for more detailed information please contact our sales manager. -
Page 8: Warranty Disclaimer
• Repaired • Replaced with a new product • Replaced with an equivalent repaired product fulfilling the same functionality • Amber can also repair products that are out of warranty at an agreed cost. Warranty Disclaimer Amber products are intended to be used by persons with training and experience. Any other use renders the limited warranties expressed herein and all implied warranties null and void and same are hereby excluded.
