Summary of Contents for PlayMakar MVP+

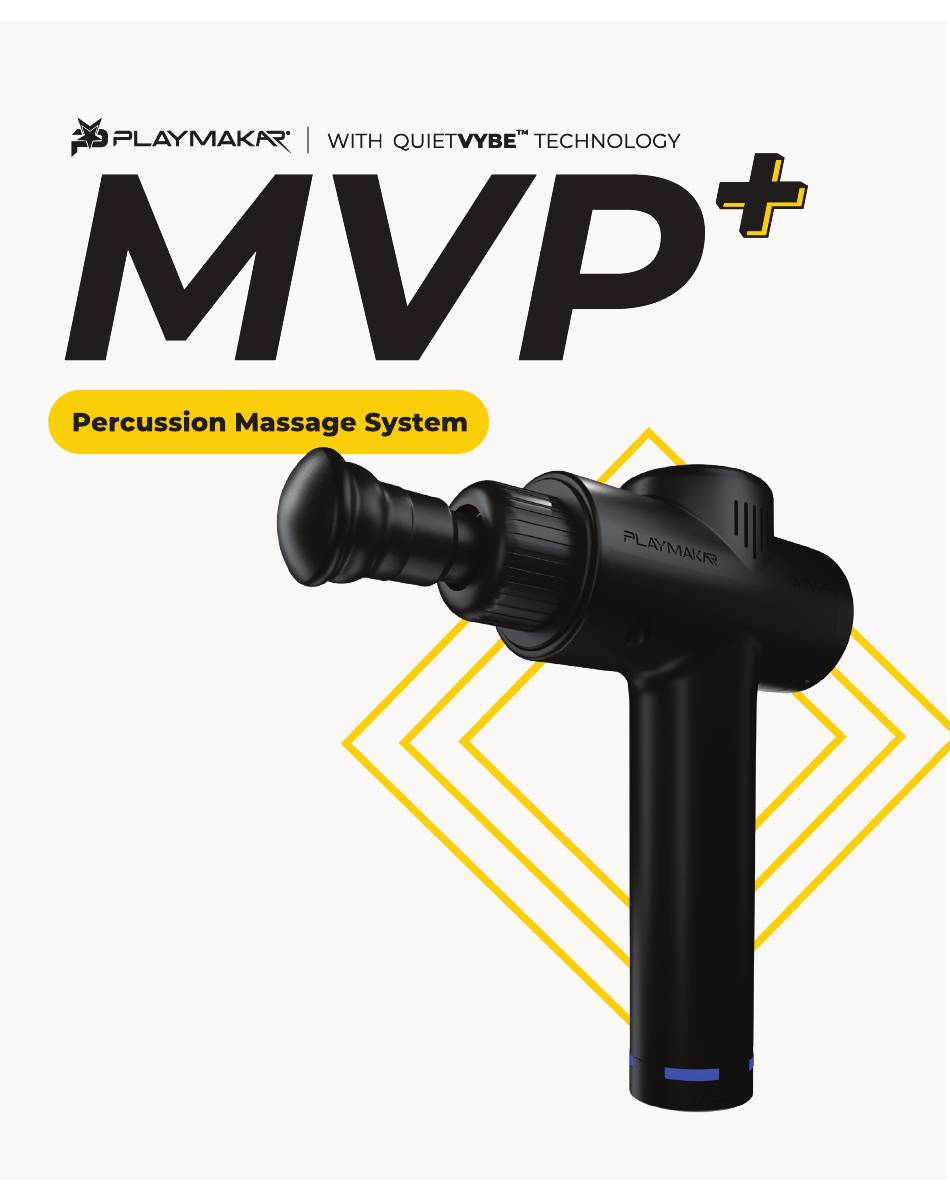

- Page 1 Instruction Manual Model # MVP-2000...
-
Page 2: Table Of Contents
TABLE OF CONTENTS MVP+ Description ..................... 3 Warnings ........................4-5 Contents ........................6 Features ........................7 Application ......................... 8 Charging the Battery ....................9 Operating Instructions ..................... 10 Technical Specifications ..................11-13 MVP+ Accessories ....................14-15 Other Products ......................16-19 Product Warranty ...................... -
Page 3: Mvp+ Description
PlayMakar MVP+ Percussion Massage System ® The MVP+ Percussion Massage System offers professional-grade power and advanced features that outperform the competition. The MVP+ features QUIETVYBE™ Technology and our patent-pending ProTips™ with EchoFlex™ Technology for targeted therapy that improves your freedom to move and perform better. -
Page 4: Warnings
Do not substitute any content in this instruction manual, literature, catalog, or at PlayMakar.com for medical advice. • When using the MVP+, use only on dry, clean surfaces of the body by applying light pressure less than one minute per body area. - Page 5 IMPORTANT SAFETY INSTRUCTIONS CONTINUED • The ventilation openings on the MVP+ should be kept free of debris, dust, and/or any other substance that could get into the openings, including but not limited to dirt, sand, or liquid. • The MVP+ should be charged only with the two-pronged, double insulated, 24VDC MVP+ charger (model # MX24W1-2401000U that was supplied with the MVP+ device.
-
Page 6: Contents
CONTENTS • PlayMakar® MVP+ Percussion Massager • Power Supply • ProTips™ with EchoFlex™ Technology: ݇ Shoc™ Absorption & Reverberation Massage Head ݇ EchoBall™ 1.5” Absorption & Reverberation Massage Head ImpactBall™ 2” Massage Head ݇ ݇ AcuTrigger™ Acupressure Massage Head... -
Page 7: Features
FEATURES Powerful brushless motor with SpeedLock™ patent-pending feature QUIETVYBE™ Technology (45dB) locks your RPMs 14 mm Stroke Length Battery life indicator Repositionable tool head receiver 6 intensity levels (1000-3000) Cone-shaped ergonomic grip built for Touchscreen display with play/pause comfort feature Rechargeable Lithium-ion Battery Soft touch matte black finish (Up to 3.5 Hours of Use Per Charge) -
Page 8: Application
APPLICATION Shoc™ Absorption & Reverberation Massage Head The Shoc™ Head replicates the deep pressure of a thumb while the patent- pending air transfer pocket absorbs impact and reverberates for a more comfortable experience. It is ideal for sore, tender, or bony areas, and overall use. -
Page 9: Charging The Battery
No Bars: 0% (out of power) 4. Charging is complete when all 3 white bars are present within the battery image on touchscreen display. NOTE: Please allow up to 3 hours for the PlayMakar® MVP+ Percussion Massager to fully charge before using. -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS POWER: Switch your MVP+ to the ON position at the I WILL. I AM. I CAN™ base of the handle. Once your device is powered ON, the touchscreen display will illuminate. INTENSITY: INCREASE: Press and release the (+) button to increase the speed from 0 to 1 to start. -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS Power Supply Lithium battery Rated Voltage: DC 25.2V Max Operating Current: 6A Charging Time: 3h Vibration Frequency of Massage: 1800-2800 RPM Stroke Displacement: Approximately 14mm ProTips™ with EchoFlex™: 4 Tips (optional tips available) Product Storage and Working Temperature: 14~122°F Product Storage and Working Humidity: 5%~90% (No Condensation) Product Working Altitude: <5000m Battery Indicator Mode: LED Digital Display... - Page 12 BATTERY SPECIFICATIONS Battery Type: Lithium battery Rated Voltage: 21.6V Protection Function: Low-voltage protection, short-circuit protection, charging over-voltage protection. Cycle Life: 800cycle (>80%;/ (Capacity > 80%) Max Discharge Current: 15A Operating Temperature Range: 14~140°F Charging Temperature Range: 32~140°F MOTOR SPECIFICATIONS Standard Operation Voltage: DC24V Rated Voltage: 24V Max No-Load Speed: 4510 RPM Load Current: 3.8A...
- Page 13 CHARGER SPECIFICATIONS Model Number: MX24W1-2401000U Input Voltage: AC100V~240V Output Voltage: DC25.2V Rated Power: Approximately 27W Charging Current: Approximately 1000mA Protection Function: Short circuit protection status, over current protection Operating Temperature Range: 14~104°F Charging Temperature Range: -40~158°F Operating Humidity Range: <96%...
-
Page 14: Mvp+ Accessories
GlidePro™ Roller Massage Head The patent-pending GlidePro™ Roller Massage Head is a tool that simulates the popular elbow technique, also known as stripping, used in massage therapy. It delivers continuous pressure across the narrow bands of soft tissue to help release myofascial trigger points. - Page 15 ShocDuo™ Absorption & Reverberation Massage Head The ShocDuo™ Absorption & Reverberation Massage Head with EchoFlex™ Technology was designed to simulate the dual thumb shiatsu massage technique. Its low-intensity impact delivers a vigorous massage to enhance tissue healing and freedom of movement.
-
Page 16: Other Products
PlayMakar ® Muscle Stimulator The PlayMakar® PRO is the ultimate take with you anywhere EMS system. This fully wireless system features 14 preset programs to warm-up better, recover faster, build strength, maximize endurance, manage pain, and reduce tension. Model # PRO-1000... - Page 17 PlayMakar SPORT ® Electrical Muscle Stimulator The PlayMakar® SPORT wired EMS system provides provides versatility and portability without sacrificing power. This system features 10 preset programs including warm- up, strength, recovery, endurance, and pain management to give you the competitive edge and maximize your abilities.
- Page 18 PlayMakar ® HOT & COLD Therapy Gel Pack PlayMakar® Hot & Cold Therapy Gel Packs provide all-natural, soothing relief for sprains, strains, soreness, and fatigue. Our packs can go from freezer to microwave and vice versa, depending on your needs, to help you manage swelling and pain.
- Page 19 PlayMakar ® POWER GEL Topical Pain Relief Power Gel is PlayMakar’s secret weapon against pain and inflammation. This all- natural gel glides on effortlessly to deliver fast, cooling relief to sore muscles, joints, and sprains. Model # PRO-3RO...
- Page 20 A DIFFERENCE-MAKER A BOUNDARY-BREAKER A GAME-CHANGER A PLAYMAKAR I am a difference-maker, a boundary-breaker, a game-changer. I am a PlayMakar®...
- Page 21 ™ I WILL. I CAN. I AM. A difference-maker A boundary-breaker A game-changer Not a question of if, but when Relentless preparation Equals game-time execution Can’t stop, unstoppable Nothing is impossible Fire from within I put the work in Mike Williams CEO &...
-
Page 22: Product Warranty
WARRANTY This PlayMakar® MVP+ Percussion Massager comes with a 1-year warranty from the date of purchase. If the product fails due to a defect in material or workmanship, PlayMakar will repair or replace the product or necessary components. An extended warranty is provided for devices registered at PlayMakar.com/registration. -
Page 23: Registering Your Device
Your satisfaction is important to us. If you have questions please contact our Customer Service Representatives. They can be reached by phone at 833-752-9625 between 8 a.m. to 4 p.m. CST, Monday through Friday, or by email at IAM@PlayMakar.com. REGISTERING YOUR DEVICE Please register your device within 14 days of purchase to receive product offers, discounts, and instructional videos. - Page 24 This page intentionally left blank.
-
Page 25: Warranty Registration Card
Country Phone Email How did you hear about PlayMakar? Why did you choose your PlayMakar product? Please return this completed card in a stamped envelope within 14 days of purchase to receive additional offers and product information. Mail to: PlayMakar® Products... - Page 26 5825 Park Vista Circle Fort Worth, TX 76244 (833) 752-9625 IAM@PlayMakar.com www.PlayMakar.com Version: 0222-1...
