Summary of Contents for Tuscany DW201S-TU

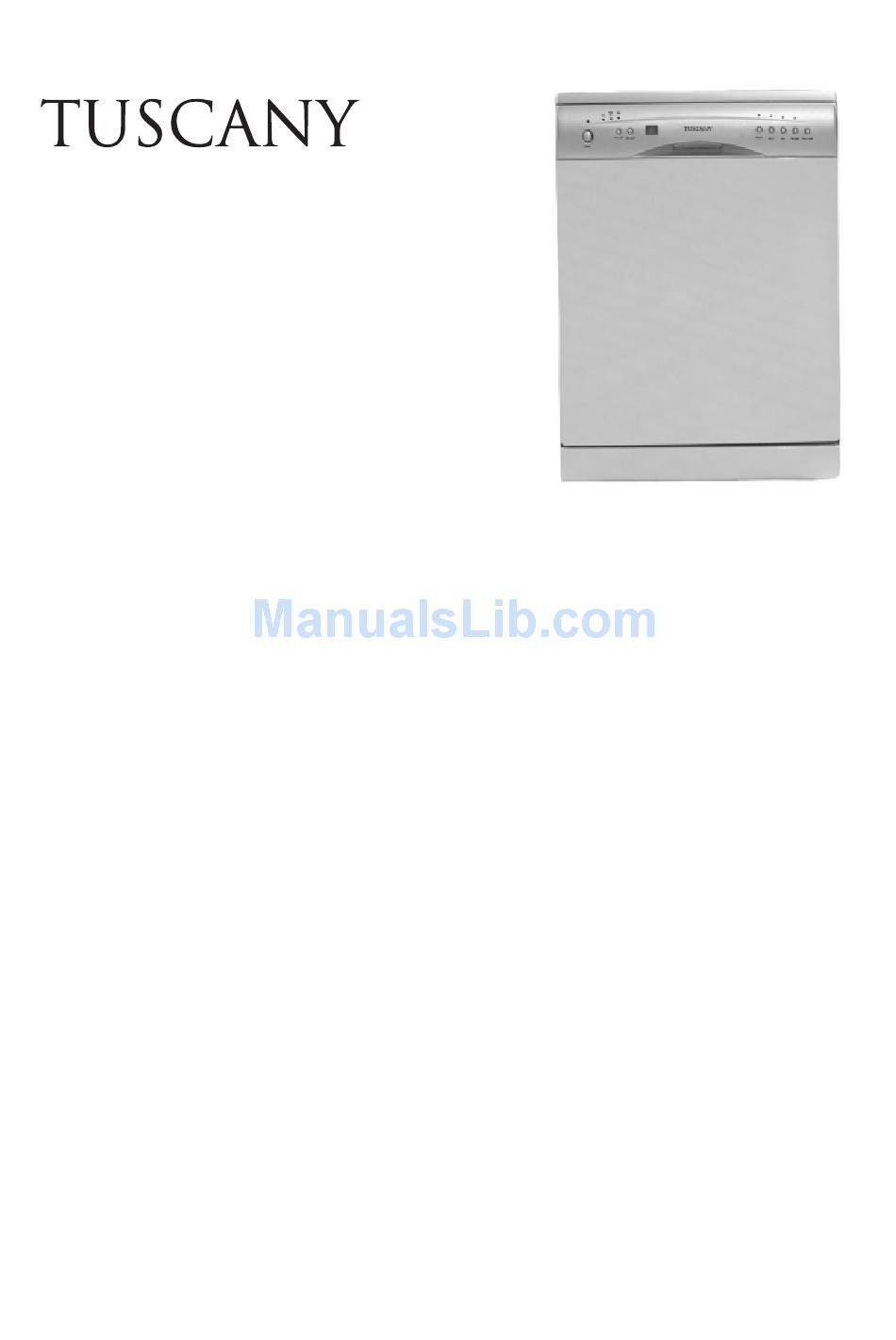

- Page 1 12-Place Setting Dishwasher DW201W-TU DW201S-TU Code: 0120505353...
-
Page 2: Safety Is A Good Habit To Get Into
- After removing the packing, check to make sure that the appli- ance is not damaged. If in doubt, contact a qualified professional. - The dishwasher must only be used by adults for the washing of household dishes and cooking utensils. -
Page 3: Close-Up View (Interior)
Close-up View (Interior) Upper Rack Rack Height Adjustor Top Spray Arm Lower Rack Bottom Spray Arm Technical characteristics Width Depth Height Capacity Mains Water Pressure Power Voltage Total Power Washing Filter Detergent and Rinse Aid Dispenser Third Sprayer 12 standard place settings 220-240V~ 50Hz 60cm 60cm... -
Page 4: Detergent And Rinse Aid
Detergent and Rinse Aid Detergent Detergent specifically intended for use with dishwashers must be used. The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Wash Cycle Table." The detergent dispenser is located on the inside panel of the door. -
Page 5: Loading The Dishwasher
Loading the Dishwasher Before placing the dishes in the dishwasher, remove larger food particles to prevent the filter from becoming clogged, which re- sults in reduced performance. If the pots and pans have baked-on food that is extremely hard to remove, we recommend that they are soaked before washed. -
Page 6: Turning On The Appliance
Turn off the appliance using the ON-OFF button. Turn off the water supply to the appliance and open the door. Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more sus- ceptible to breakage. -
Page 7: Energy Saving Tips
Energy Saving Tips It is important to try and run the dishwasher when it is fully loaded to save on energy. In order to prevent odours from forming and food from caking onto the dishes, you can run the soak cycle. -
Page 8: Wash Cycle Table
Wash Cycle Table Cycle Selection Cycle Information Normal dirty dishes, pots Normal and pans without dried on Wash residue. Very dirty dishes, pots and Heavy pans. (not to be used with Wash delicate items) Economic, fast cycle to be Fast used on not very dirty dishes Wash right after they are used. -
Page 9: Cleaning And Special Maintenance
Troubleshooting It may occur that the dishwasher does not function or does not function properly. Before calling for assistance, check the following. The Dishwasher Does Not Start Have you checked whether: - the plug is pushed into the socket correctly;... -
Page 10: Installation
Levelling Appliance Once the appliance is positioned, adjust the feet (screw them in or out) to level the dishwasher. In any case, the appliance should not be inclined more than 2 will help ensure proper performance. - Page 11 Installation Diagram 3(1) 1(2) 2(1) 4(2) A.Wiring box B.Power switch F.Drain pump J.Dispenser L.Washing pump M.Temperature limiter R.Rinsing agent missing spy-lamp CnL1 CnP3 CnP2 SCHEDA DI POTENZA CnP1 CONTROLLO RELE' C.Power indicator H.1/2 washing valve N.Heater IAQS D-ED D.Door switch E.Water level switch G.Overflow switch K.Inlet valve...
