Operating Instructions

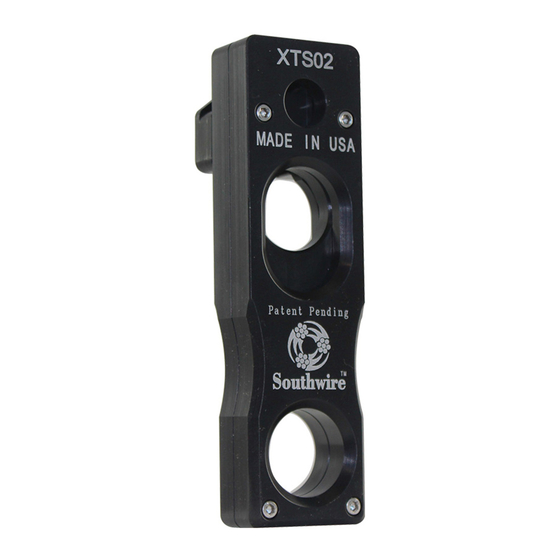

Mini Stripper Model XTS-02
XTS02
MADE IN USA
Patent Pending
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XTS-02 and is the answer not in the manual?

Questions and answers

Summary of Contents for Southwire XTS-02

  • Page 1 Operating Instructions Mini Stripper Model XTS-02 XTS02 MADE IN USA Patent Pending Read and understand all of the instructions and safety information in this manual before operating or servicing this tool.
  • Page 2: Table Of Contents

    BEFORE OPERATING THIS TOOL, READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND SAFETY INFORMATION IN THIS MANUAL TABLE OF CONTENTS Important Safety Information............2 Operating Instructions.............3-5 Maintenance..............…....6 Specifications..............…....6 Replacement..............….....6 Warranty...................7-8...
  • Page 3: Important Safety Information

    SAFETY FIRST Safety is essential in the use and maintenance of Southwire Tools and Equipment. This instruction manual and any markings on the tool provide information for avoiding hazards and unsafe practices related to the use of this tool. Observe all of the safety information provided.
  • Page 4: Operating Instructions

    SETUP AND OPERATION 1. Select appropriate sized cable (#6awg-1/0) and ensure the end is completely round. Insert into back side of stripper while pulling down on the spring loaded finger trigger. 2. For sizes #6-#4awg, Insert cable until it is flush with the front of the wire support body.
  • Page 5 SETUP AND OPERATION cont. 3. Release finger trigger to secure cable in place. 4. Once cable is secure, insert pointer finger into front side bottom hole and rotate stripper away from you in a clockwise rotation while holding the cable secure with other hand until the desired length of strip is obtained.
  • Page 6 SETUP AND OPERATION cont. 6. Pull down on the spring loaded finger trigger and slide stripper off of the cable. 7. Depending on wire size there may be a little jacket material left on the very end of the cable. Slide this off with your fingers and strip is complete.
  • Page 7: Maintenance

    MAINTENANCE 1. Keep tool clean and dry. 2. Oil moving parts occasionally. 3. Do not alter the blade angle. SPECIFICATIONS • Model # XTS-02 • Stock # 59894601 • Depth – 5" • Width – 1.38" • Height – 1.2"...
  • Page 8: Warranty

    Material Boxes. Under this 5-Year Limited Warranty, the following are also excluded and Southwire Company, LLC will have no liability for any of the following: normal wear and tear resulting from product use and damage arising out of misuse, abuse, modification, and improper product maintenance.
  • Page 9 1. All warranty claims must be approved by Southwire’s Tools & Assembled Products Warranty Department prior to return of product. If Southwire determines that a product is defective, Southwire will, at its option, repair or replace defective products or defective product components, free of charge.
  • Page 10 1-855-SW-T00LS Toll Free Technical Help Contents Made in USA Product distributed by Southwire Company, LLC One Southwire Drive, Carrollton, GA 30119 ©2016 Southwire Company, LLC. All rights reserved. 05/16 XTS-02 Manual...
