Summary of Contents for BTM WM21B012

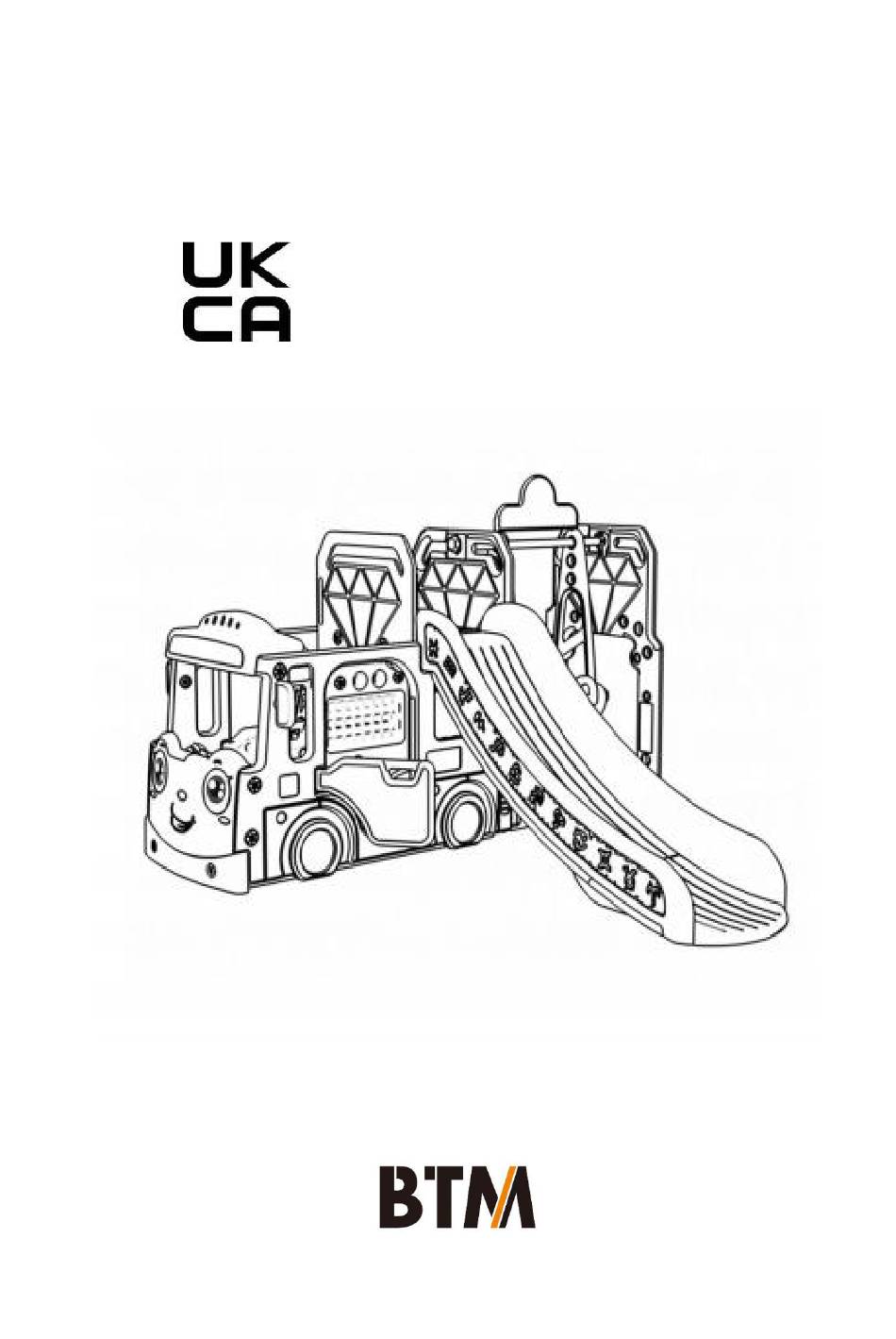

- Page 1 Children’s Bus Slide Swing Playset Installation Manual Model No.: WM21B012 Test Request: EN71 Test Request Date: 9-Jun-2021...
-
Page 2: Important! Keep For Future Reference
IMPORTANT! KEEP FOR FUTURE REFERENCE Failure to follow these warnings and the instructions could result in serious injury or death. This unit must be assembled and disassembled by ADULTS ONLY. This product is designed for children from 3-6 years old. DO NOT exceed the maximum weight limit of 50 kg regardless of age. -
Page 3: Product Information
Product Information Product Name: Children’s Bus Slide Swing Playset Color available: Blue or Pink Size: 190*210*116 cm Weight Capacity: 50 kg Parts List A. Screw * 2 C. Yellow Cross Screw *16 B. Hexagon Screw*13 D. Yellow Flower Screw * 7 E. - Page 4 Installation Steps of Bus Part Step 1 Attach 3 steps to the boards with 6*Hexagon Screws B. B. Hexagon Screw Step 2 Install steering wheel and control console with 1* Hexagon Screw B. B. Hexagon Screw Step 3 Connect the upper slide and down slide with 1*short screw K.
- Page 5 Step 4 Assemble one side of the bus and the front board (front bumper) of the bus with 3*Yellow Cross Screw C. Yellow Cross Screw Step 5 Install the seat and control console in the bus. Step 6 Install the other side of bus board with 3*Yellow Cross Screw C.
- Page 6 Step 7 Install the bumper cover with 2*Square Screw H and 2* Round Screw F. Square Screw F. Round Screw Step 8 Assemble the back panel of bus and tighten the boards with 4*Yellow Cross Screw C. Note: Pay attention to the installation direction.
- Page 7 Step 10 Install the steps with 2*Yellow Cross Screw C. C. Yellow Cross Screw Step 11 Install the slides with 1*Screws A. Screw Step 12 Fix the platform board with 2* Yellow Cross Screw C. C. Yellow Cross Screw...
- Page 8 Step 13 The guard plate. Step 14 Install the guard plate with 2* Yellow Cross Screw C and 1* Screw A. C. Yellow Cross Screw Screw Installation Steps of Swing Part...
- Page 9 Step 1 Install the base of the swing with 2*Hexagon Screw B Install the stopper * 1 on the base of the swing. B. Hexagon Screw J. Stopper Step 2 Assemble the other board of swing with 2*Hexagon Screw B B.
- Page 10 Step 4 Attach the connector 1 * L to the Rod with a 1 * Long Screw M and a Screwdriver M. Long Screw*1 L. Connector * 1 O. Screw Driver Step 5 Slide the bar all the way through the swing panels, insert the 4*Clasps I into the holes on bar to secure it in place.Attach the connector 1...
- Page 11 Step 6 Use 2 * Hexagon Screw B to secure both ends of the joystick to the outside of the board. B. Hexagon Screw Step 7 After the installation completes, tear off the sticker and paste it. Tips： This product is available in two forms. If you don’t want to install a swing, you can choose to install a basketball hoop.
