Thank you for purchasing the amigo. I trust that you will find it to be a useful

navigational aid and that, through prudent diving practice, you will never have cause

to rely on it.

To start using your

Operation and Training sections of this manual starting on page 5. To get full utility

from your

please read these instructions in their entirety.

amigo

A Navigation Aid for

Recreational SCUBA Divers

amigo

immediately (without even getting wet) go straight to the

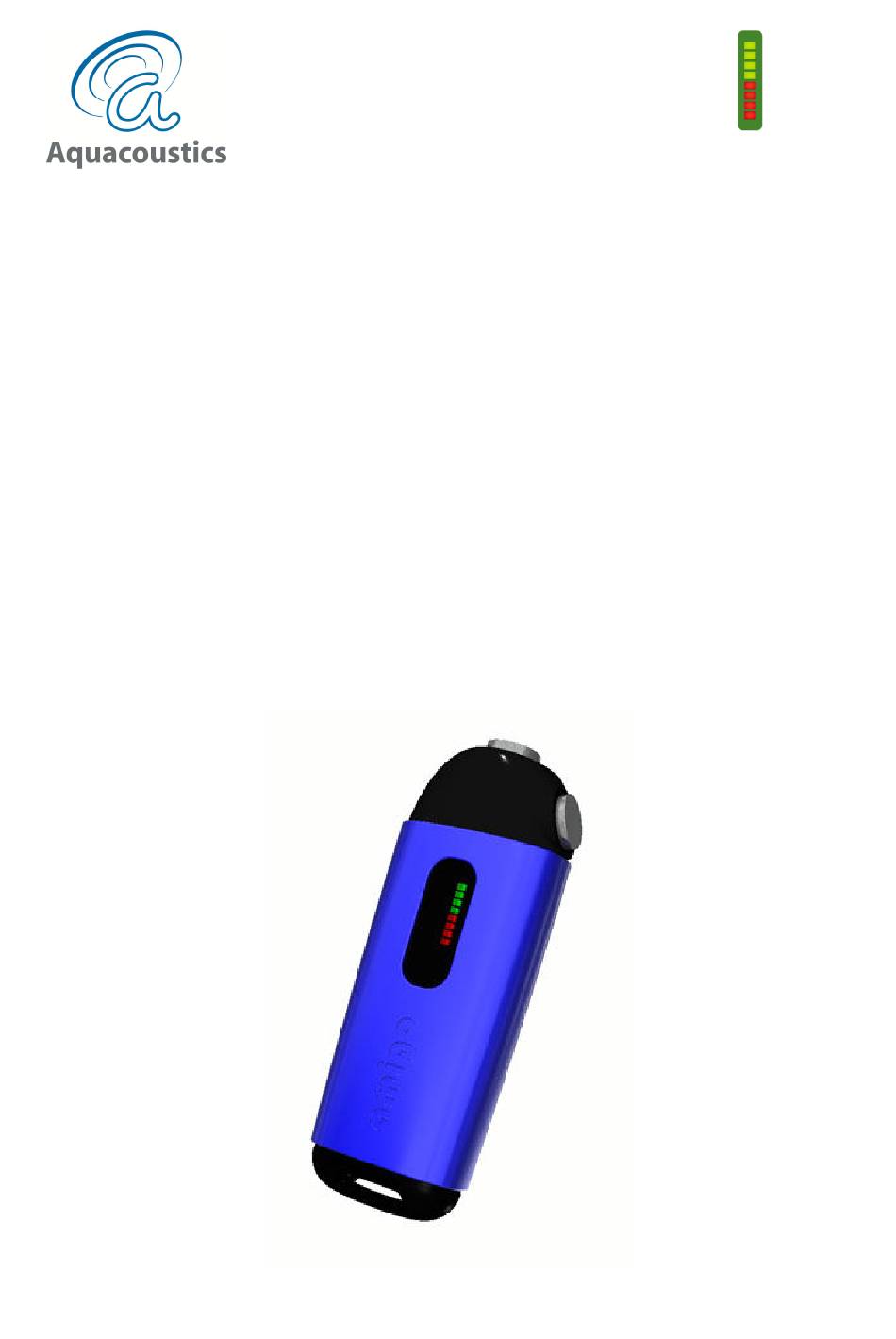

Figure 1. The

(

shown approximately actual size

amigo

)

Home of the

amigo

Table of Contents

Need help?

Do you have a question about the amigo and is the answer not in the manual?

Questions and answers

Summary of Contents for Aquacoustics amigo

Page 1 A Navigation Aid for Recreational SCUBA Divers Thank you for purchasing the amigo. I trust that you will find it to be a useful navigational aid and that, through prudent diving practice, you will never have cause to rely on it.
Page 2: Table Of Contents
Index Warning .................. Warranty .................. Inventory .................. Environmental Issues..............amigo Care .................. Transportation................Battery Charging ............... Operation .................. Power On ............... Change Channel ............. 6 Transmit Mode ............Receive Mode ............Power Off ............... Serial Number Display ..........Search and Rescue (SAR) Mode ........
Page 3: Warning
In the unlikely event that your malfunctions, if you are dissatisfied with amigo any aspect of your amigo’s performance, or you have any comments or suggestions then please contact http://www.aquacoustics.biz. Version 3.3 November 2016...
Page 4: Inventory
All of your dive equipment is a potential source of contamination when moving between dive sites. Ensure that your equipment, including your amigo, is thoroughly cleaned with fresh water between dives at different geographical locations.
Page 5: Amigo Care
Page 3 of amigo Care Thoroughly rinse your amigo with fresh water after each dive day. Avoid leaving your in direct sunlight or exposed to other sources of amigo excessive heat for extended periods. Recharge your before and after extended storage.
Page 6: Attaching The Charge Clip
A full charge from a depleted battery will take approximately two hours. Your will indicate when it is fully charged. amigo The charging plug can be removed at any time by withdrawing it along the axis of the power cord. Your will automatically turn off.
Page 7: Operation
Power On Briefly depress the Mode Button once to turn on your amigo. All eight Light Emitting Diodes (LEDs) will turn on for a one second display test followed by a battery condition and channel number display (refer to Table 3).
Page 8: Change Channel
The bottom red and top green LEDs will indicate the channel. The central three LEDs will indicate battery condition. If the battery is depleted (after about 50 hours of diving) your amigo will display two central red LEDs and the channel before automatically turning off after 30 seconds.
Page 9: Transmit Mode
From the battery display briefly depress the Mode Button once to activate transmit mode. This is the default mode for diving. If transmit mode is not activated within 30 seconds your amigo will automatically shut down. In transmit mode the upper green LED will flash approximately every second as shown in Table 3.
Page 10: Receive Mode
Page 8 of Receive Mode Briefly depress the Mode Button once to activate receive mode. The LED display will indicate received signal strength as shown in Table 5. The signal strength is indicative of both direction and range. Table 4. Receive Mode Display LED Display Received Signal No signal (flashing red LED at 2...
Page 11: Power Off
LEDs lit continuously with brief pulses every few seconds. Make sure that other amigo’s (and any boat sonar) are either off, or are also in SAR Mode - this permits a number of search teams to use amigo’s. Move to the last known location of the missing diver.
Page 12: Training
Dive Application On a typical dive you will simply check the charge and channel of your amigo, put it in transmit, attach it to your BCD and complete your planned dive. During your pre-dive buddy-check turn on both amigo’s, check the battery condition is good and that both units are on the same channel.
Page 13 Dive your dive plan. At any time during the dive press the Mode Button on your amigo to change to receive mode. With your body positioned vertically in the water, complete a slow 360 search to find the direction of maximum received signal strength.
Page 14: Multiple Buddy Pairs
The best place to start searching for a missing diver is their last known location. Ensure that all other amigo’s are turned off. Put your amigo into receive mode on the appropriate channel.
Page 15: Mark For Return Or Recover
If a signal is received then a qualified diver search team with adequate no-decompression time and air may use an amigo in receive mode to locate the missing diver directly. If no signal is received then continue to implement your missing diver procedures.
Page 16: Hand Signals
10.8 Hand Signals It may be necessary to coordinate whether the amigo’s being used on a dive are place in transmit or receive mode. The following hand signals are suggested. Get diver's attention.
Page 17: About Your Amigo
Do you consider that it has been good value for money? Have you found a new way to use your amigo? Please contact me http://www.aquacoustics.biz with any comments, suggestions or criticisms that you might care to share. We will respond to your enquiry.
