SVIP SVR-19 Quick Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

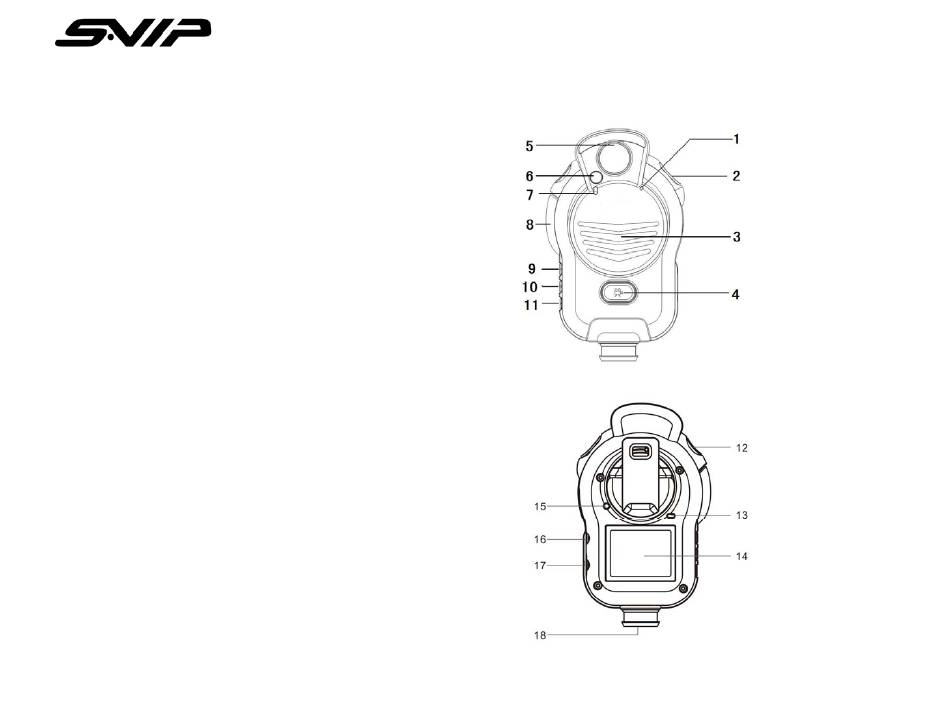

FEATURES
FRONT
1) Audio Mic
2) Capture Button
3) Speaker
4) Record On/Off Button
5) Camera Lens
6) Infrared Light
7) Mic/Audio Recorder
8) Push To Talk Button
9) LCD On/Off
10) Play
11) Power On/Off
BACK
12) "I" Button
13) Recharging Indicator
14) LCD Screen
15) Reset Button
16) Earphone Port
17) USB Port
18) Connector to 2 Way Radio
All rights reserved. Copying in whole or in part is prohibited
All rights reserved. Copying in whole or in part is prohibited w
QUICK GUIDE
without expressed written authorization from the manufacturer.
ithout expressed written authorization from the manufacturer.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SVR-19 and is the answer not in the manual?

Questions and answers

Summary of Contents for SVIP SVR-19

  • Page 1 QUICK GUIDE FEATURES FRONT 1) Audio Mic 2) Capture Button 3) Speaker 4) Record On/Off Button 5) Camera Lens 6) Infrared Light 7) Mic/Audio Recorder 8) Push To Talk Button 9) LCD On/Off 10) Play 11) Power On/Off BACK 12) “I” Button 13) Recharging Indicator 14) LCD Screen 15) Reset Button...

  • Page 2: Basic Operation

    BASIC OPERATION 1. Power On – The system will enter the preview mode when power on. 2. Taking Pictures – Press “Capture” button to take pictures. Pictures will be saved in JPEG file format. Total Files in Memory When turned on, the LCD screen displays the Memory Left following four status icons.
  • Page 3 3. Video Recording - Press “Record” button to make video recording, press “Record” button again to stop. The video file will be saved in MP4 file format. When in the process of recording video, the LCD screen displays the following four status icons. (See Diagram B) Flickering Light Indicates Battery Status...
  • Page 4 • 6. Stand by Mode – LCD automatic turn off if no actions within 3 mins. Press any button to turn on the screen. • 7. Push to Talk – connect this device with 2 way radio and press “Push to Talk” button to talk. •...
  • Page 5 License agreement and click “ I Agree” Select “Normal Section”, click “NEXT” to continue All rights reserved. Copying in whole or in part is prohibited w All rights reserved. Copying in whole or in part is prohibited without expressed written authorization from the manufacturer. ithout expressed written authorization from the manufacturer.
  • Page 6 To continue the installation, click “INSTALL” Installation complete, click “CLOSE” All rights reserved. Copying in whole or in part is prohibited w All rights reserved. Copying in whole or in part is prohibited without expressed written authorization from the manufacturer. ithout expressed written authorization from the manufacturer.
  • Page 7 After installation, please run the “Individual.rar” software. You will see below Connect the device with PC. Key in the password: “456789” and select to review the video or image. Press “Previous” or “ Next” to reviewing the video or images through LCD screen All rights reserved.
  • Page 8 Departmental Software Set up Make sure the device is turn on and connect with PC via USB Run the “Departmental.rar” software, you will see below - Key in Password: 123456 If it’s successfully connected, the status box will show the connection time and auto update the correct time to the device.
  • Page 9 Press “VGA” or “QVGA” button to set up size Change password – Enter the Old, New, and Re-type New Password and click “OK.” Note: Password can only be numbers + English letters All rights reserved. Copying in whole or in part is prohibited w All rights reserved.
  • Page 10 Press “MSDC” You cab find this device on “my computer”. You can use the Departmental software to copy, save or drag the files on your PC. All rights reserved. Copying in whole or in part is prohibited w All rights reserved. Copying in whole or in part is prohibited without expressed written authorization from the manufacturer.
  • Page 11 Build-in Battery Charge – turn off the device and connect with PC via USB or use the attached adaptor to charge. It takes about 3 hours to fully charge the battery. When charge is ready, the indicator light shows green. External Battery Charge –...

  • Page 12: Specifications

    SPECIFICATIONS Sensor 5MP in CMOS Aperture F/3.25 Effective 5 mega pixel View Angle 63 degree Pixels Image size 2592x1944 (5 million) Image Format jpeg Internal 3.7 6000 m Ah Lithium LCD Monitor 1.5 inch Battery battery Focal Length 150 cm - infinity Memory Internal 4G flash memory All rights reserved.
