USER GUIDE

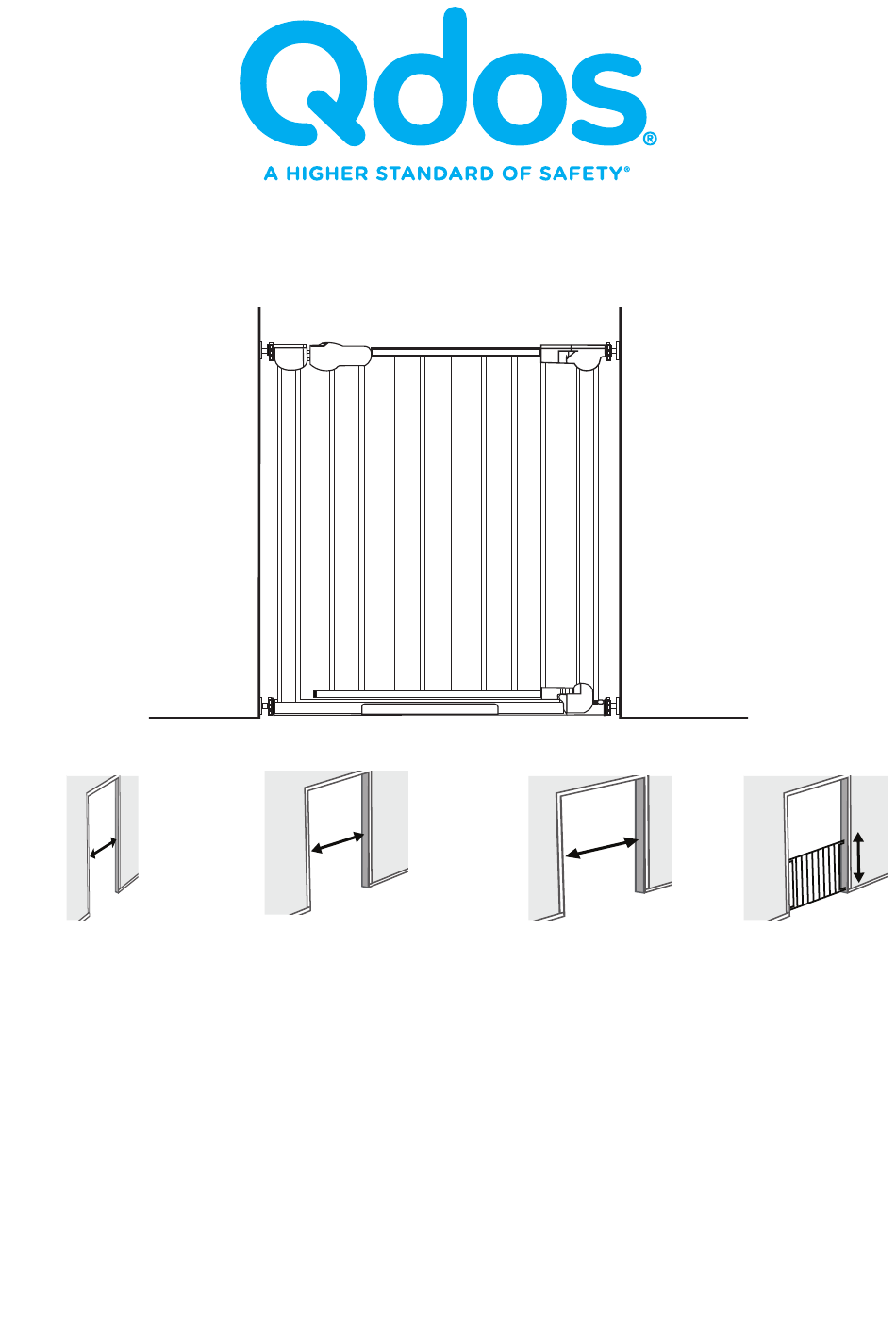

Auto-Close SafeGate Pressure Mount
Min
Max Opening
Max Opening
Height
Opening
with 2 extensions
with 6 extensions
29.9"
29.3"
(included)
47.8" (121.5 cm)
(76 cm)
(74.5 cm)
36.8" (93.5 cm)
IMPORTANT:
Qdos wants to keep your children safe
and for that we need you to do your part by carefully
reading and following the instructions below. Please read
through the instructions before starting the installation.
For installation videos and FAQ go to: QdosSafety.com

Advertisement

loading

Summary of Contents for Qdos Auto-Close SafeGate

  • Page 1 (74.5 cm) 36.8" (93.5 cm) IMPORTANT: Qdos wants to keep your children safe and for that we need you to do your part by carefully reading and following the instructions below. Please read through the instructions before starting the installation.
  • Page 2 IMPORTANT! PLEASE READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE When installed between two strong and rigid surfaces and according to these instructions, this gate has been tested to meet or exceed the following Safety Standards, US- ASTM F-1004, Canada- SOR/90-39, and European- EN 1930.

  • Page 3: Maintenance And Cleaning

    Clean using a mild soap and wipe with a damp cloth. WARRANTY Your Qdos product is warranted to be free from manufacturing defects in material or workmanship for a period of 1 year from date of purchase, when used under normal conditions and in compliance with these instructions.
  • Page 4 OPENING SIZE AND EXTENSIONS The following table helps explain extensions needed depending on the inside width of the opening. Opening Extensions Included Accessory Extension Size Required Needed Placement 29.3-31.3" Basic None None (74.5-79.5 cm) Gate 31.3-34.1" Gate + 1 Included 1 on one side (79.5-86.5 cm) extension...
  • Page 5 WALL CUPS AND SCREWS We fully understand that nobody wants to create damage to or make holes in their walls. At Qdos we do our best to minimize the impact of the gate installation, but at the same time our main priority, and we sincerely hope that you share this priority, is to protect your children.

  • Page 6: Parts List

    PARTS LIST: 2x Top Spindle Housing 2x Top Spindles with hand wheel 1x Bottom Spindle Housing 2 x Bottom Spindles with nuts 1x Bottom Spindle Housing 2x QRF Spindles™ with nuts with AccuInstall Indicator™ (for use if installing over quarter round)
  • Page 7 1x Auto-Close Gate, 1x One-Way held together with cable tie Stop and screw 1x Magnetic Installation 2x 3M Adhesive Wall Cups Level with Marking Tool 2x WhiteAdhesive Wall Cups 4x Wood screws 2x Gate Extensions 1x Installation Wrench...

  • Page 8: Installation

    NEVER use this gate at top of stairs as the bottom cross bar creates a tripping hazard due to the inherent trip hazard. For challenging installation situations and surfaces, one or more of the following Qdos installation accessories might be necessary to use for a secure installation. Qods Y-Spindles –...
  • Page 9 IMPORTANT: The gate ships with a cable tie holding it together. Please keep this cable tie in place until after Step 10 to make installation a lot easier! Step 1 Measure the opening to determine if extensions are needed, please see OPENING SIZE and EXTENSION requirements on page 4.
  • Page 10 Step 3 Insert the Bottom Spindle Housing with the AccuInstall Indicator™ into the bottom bar on the locking side of the gate. Repeat the same for the Bottom Spindle Housing without the pressure indicator on the hinge side of the gate.
  • Page 11 BOTTOM BOTTOM Step 5 HINT – It is easier to complete the following steps if you have a helper, one holding the gate in place while the other installs the gate. Center gate in the opening with the Bottom Bar with Glow Strip against the floor and make sure gaps on each side of the gate are even on both sides and not too wide.
  • Page 12 Step 7 IMPORTANT: During this step it’s critical to keep the gate vertical with the help of the Installation Level in order to insure that the Auto-Close door will operate properly. Extend the spindles outward until each Wall Cup sticks to the surface (if you are using QRF Spindles™...
  • Page 13 Spindles and nuts on the Bottom Spindles until the spindle heads nest inside the Wall Cups. Next using the Installation Wrench, tighten the nuts on the bottom spindles. Alternate between the sides until the red area inside the AccuInstall Indicator™ disappears. This means the bottom of the gate is securely installed.
  • Page 14 Step 11 If you want the gate to open in only one direction, you will need to add the One-Way Stop. Slide the One-Way Stop onto the lower bar turned in a way so it blocks opening the door in the desired direction. Once positioned, line it up with the hole in the lower bar and insert the screw to hold it in place.
  • Page 15 Each Extension comes with Spindle Housing already inserted, so the Spindles can be inserted directly into the last Extension on each side. When adding multiple extensions, make sure to add them on every other side of the gate, unless there is only one Extension used.
  • Page 16 Distributed by Regal Lager, Inc. Kennesaw, GA 30144 USA 1-800-593-5522 • www.QdosSafety.com support@qdos.zendesk.com ©2021 Qdos All rights reserved. Qdos is a trademark of Regal Lager, Inc. Made in China 07/21...
