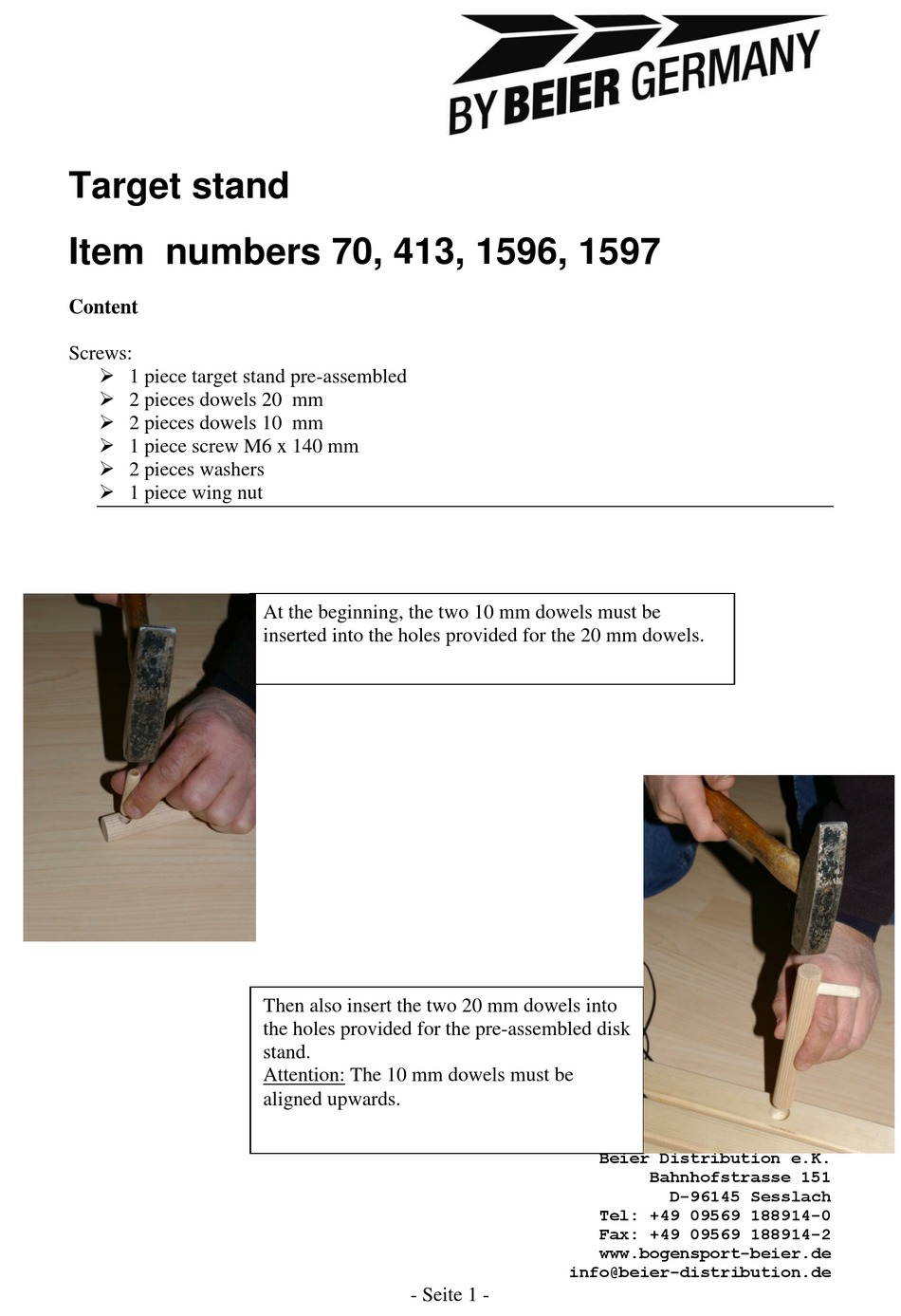

beier 70 Assembly Instructions

Target stand
Item numbers 70, 413, 1596, 1597
Content
Screws:
 1 piece target stand pre-assembled
 2 pieces dowels 20 mm
 2 pieces dowels 10 mm
 1 piece screw M6 x 140 mm
 2 pieces washers
 1 piece wing nut
At the beginning, the two 10 mm dowels must be
inserted into the holes provided for the 20 mm dowels.
Then also insert the two 20 mm dowels into
the holes provided for the pre-assembled disk
stand.
Attention: The 10 mm dowels must be
aligned upwards.
