TSM -02 Assembly, Installation And Operation Instructions

Cover Removal Procedure
1. Loosen the fixed screw.
2. Slightly twist the screw driver to crack open the
cover from the base.
3. Hold the base firmly with one hand and remove the
cover with another hand by pulling away from the
base forcibly.
88.
Set-point dial
Unoccupied key
TSM Temperature Setpoint Module with Digital Display
Installation and Operation Instructions
Display Control Unit and LCD Layout
Unoccupied Output
o
8 C
Celsius
o
F
Fahrenheit
**

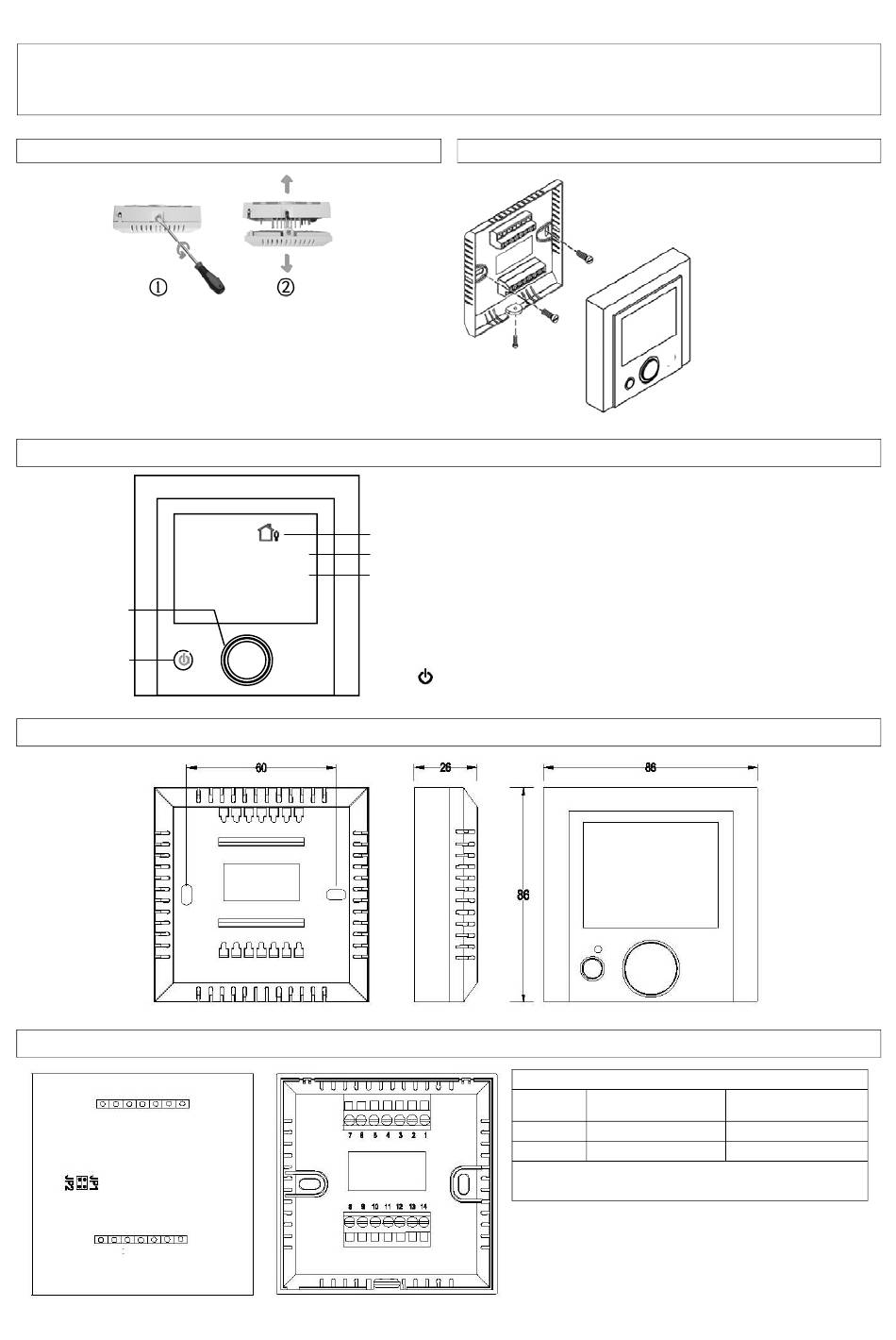

Dimensions in mm
Wiring Terminals and Jumper Settings
Mounting Details
button is only available at TSM-02
JUMPER IN OPEN
JP1 With External Sensor
JP2 For 2-10 VDC Output
Note: JP2 is available in 0-10 VDC/2-10 VDC output models
only. Factory setting is 0-10 VDC.
Revision Date October 15, 2012
Mounting
The Setpoint Module can
be surface mounted or
secured to a standard
European 75 x 75 x 35
mm electrical box. See
Figure 4: Mounting
Details. Two mounting
screws are included.
JUMPER SETTINGS
JUMPER IN CLOSED
POSITION POSITION
With Built-in Sensor
For 0-10 VDC Output
1
