MBS EMBSIN 101 I Operating Instructions

MBS EMBSIN 101 I Operating Instructions

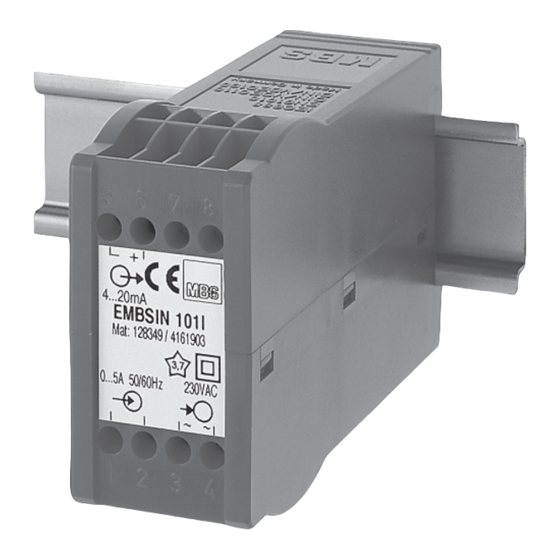

Transducer for ac current

Advertisement

Quick Links

Betriebsanleitung
Messumformer für Wechselstrom EMBSIN 101 I
Mode d'emploi
Convertisseur de mesure pour courant alternatif EMBSIN 101 I
Operating Instructions
Transducer for AC current EMBSIN 101 I
BA 101 I
128 042
09/08
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EMBSIN 101 I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MBS EMBSIN 101 I

  • Page 1 Betriebsanleitung Messumformer für Wechselstrom EMBSIN 101 I Mode d’emploi Convertisseur de mesure pour courant alternatif EMBSIN 101 I Operating Instructions Transducer for AC current EMBSIN 101 I BA 101 I 128 042 09/08...
  • Page 2 Reference value: Output end value 2. Brief description Accuracy: Class 0.5 The transducer EMBSIN 101 I is designed to convert a sinus- oidal AC current into a DC current or voltage proportional to Safety the measured value. Pollution degree: Installation category: 3.
  • Page 3 4. Mounting The EMBSIN 101 I can be mounted on a top-hat rail. – + – + Note “Environmental conditions” in Section “3. Technical data” when determining the place of installation! 5 6 7 8 5 6 7 8 Simply clip the device onto the top-hat rail (EN 50 022) (see Fig.
  • Page 4 Messumformer gemäss Bild 7 von Tragschiene abneh- 35 ×7,5 mm) selon EN 50 022. men. Fig. 8. Housing type MBS/SP1 onto a top hat rail (35 ×15 mm or Démonter le convertisseur du rail support selon Fig. 7. 35×7.5 mm) acc. to EN 50 022.
