AI Synthesis Eurorack AI008 User Manual

AI Synthesis AI008 Matrix Mixer
User's Manual
This is the Manual for the ​ A I008 Eurorack Matrix Mixer​ you can purchase it by going to:
aisynthesis.com/product/ai008-eurorack-matrix-mixer​ .
1. About the AI008 Eurorack Matrix Mixer
If you are new to DIY electronics, this is a great second module to build. The first module, the
AI001 Multiple​ is ideal for beginners, as it teaches how to solder and signal flow. The ​ A I008
Matrix Mixer ​ f amiliarizes you with common electronic components, and is powered.

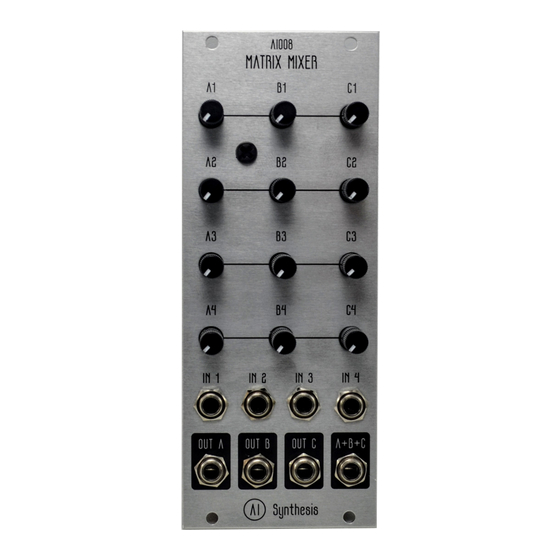

The AI008 Eurorack Matrix Mixer is a compact 4-in, 3-out matrix mixer. A matrix mixer is used to
route audio or cv signals from multiple sources to different destinations. There are twelve
potentiometers, with each potentiometer controlling the amount a given input (1-4) will be sent
to a given output (A-C).
The AI008 also contains a summed output of A+B+C. A common usage for the AI008 would be
as an effects send, with one or more inputs, and one or more effect inputs and outputs. Using
the AI008 Matrix Mixer in this way, inputs can be sent to multiple effects, and the effects can be
sent to each other, and even back into themselves, expanding the depth of the effects.
