G 3025 OH
G 3050 OH
9.139-202.0 10/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G 3025 OH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kärcher G 3025 OH

Summary of Contents for Kärcher G 3025 OH

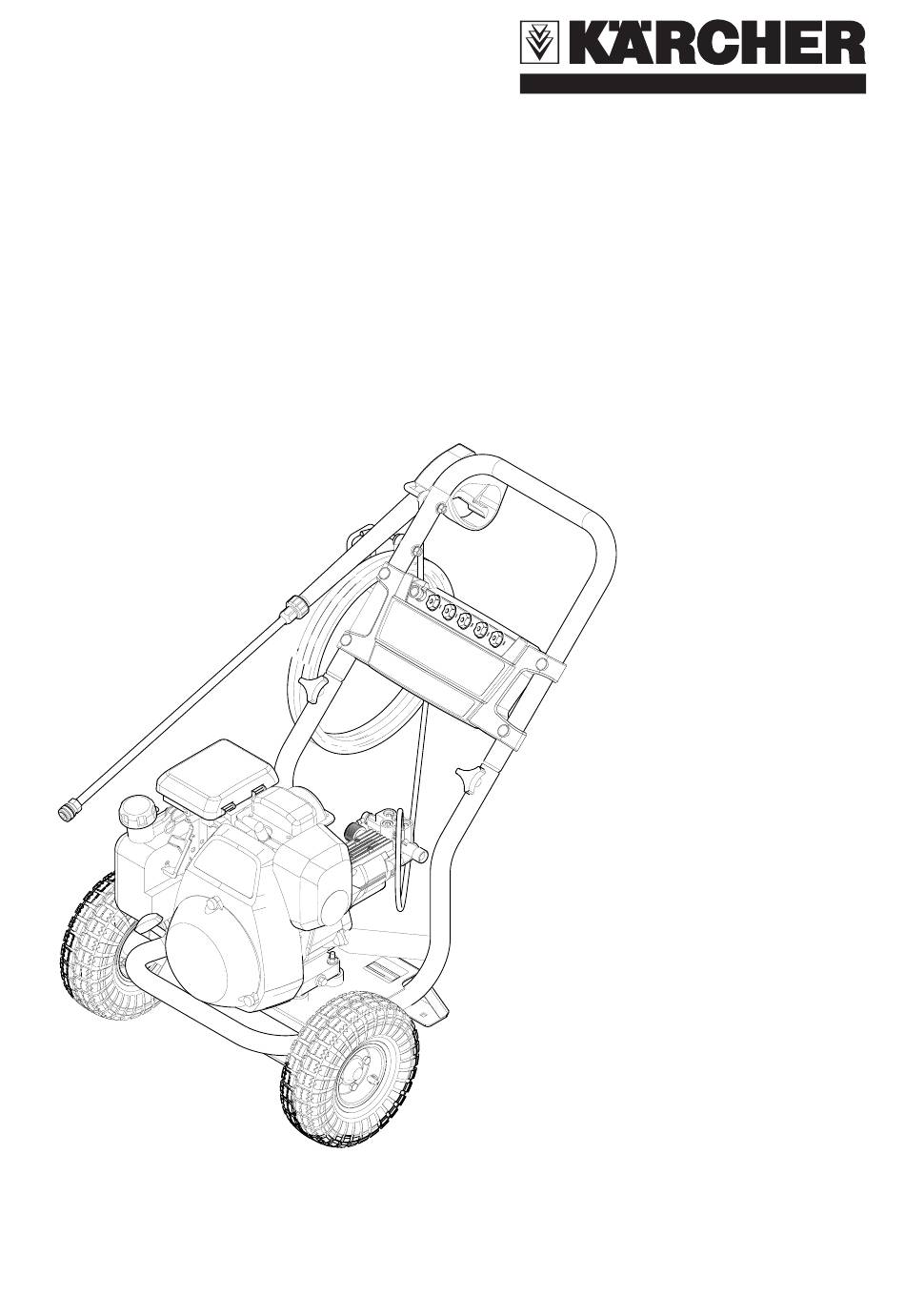

  • Page 1 G 3025 OH G 3050 OH 9.139-202.0 10/06...

  • Page 2: Table Of Contents

    Engine 187cc Kärcher Customer Support USA Honda GC 190 Part No. 1.194-516.0 Call: 1-800-537-4129 for help or visit G 3025 OH our website: www.karcher-usa.com/home Part No. 1.194-515.0 Please take a moment to register your G 3050 OH pressure washer online at Serial no.

  • Page 3: Model Overview

    MODEL OVERVIEW 1 Handle 9 High pressure outlet 2 Trigger gun 10 Detergent suction tube with filter 3 Trigger gun safety lock 11 Quick connect nozzles 4 High pressure hose 12 Spark plug 5 Gas tank 13 Water inlet filter 6 Spray wand For engine details see engine manual.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read the operating instructions of Do not use acids, alkaline, solvents, the engine manufacturer before or any flammable material in this start-up and follow the safety instruc- product. These products can cause tions carefully. physical injuries to the operator and irreversible damage to the machine.
  • Page 5 Do not allow the high pressure hose Avoid tipping the machine on its to come into contact with the muffler side. guard. SAVE THESE INSTRUCTIONS Do not leave the machine running unattended. WATER SUPPLY (Cold Water Only) CAUTION When connecting the water inlet to the water supply mains, local regula- tions of your water company must be observed.

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1: STEP 5: Attach the handle to the frame of the Attach the wand to the spray gun. pressure washer. Align holes, insert bolts, and tighten with knobs. STEP 6: Pull the spring-loaded collar of the STEP 2: wand back to insert your choice of Mount the gun/hose storage handle.

  • Page 7: Operating Instructions

    STEP 8: Attach the high pressure hose to the spray gun. OPERATING INSTRUCTIONS STEP 6: CAUTION Unlock the trigger gun safety lock. Do not run the engine with a high or low Trigger the gun to eliminate trapped oil level as this can cause engine dam- air, wait for a steady flow of water to age.

  • Page 8: Using The Accessories

    USING THE ACCESSORIES High pressure in nozzle area. Quick connect nozzles Risk of injury caused by improperly locked nozzle. 0° spray angle = Red nozzle Make sure you hear a ‘click’ when in- For particularly stubborn accumulation serting the nozzle tip into the wand. of grime.

  • Page 9: Working With Detergents

    WORKING WITH DETERGENTS Detergents can only be applied with the manufacturer. The use of other the black detergent nozzle. cleaning detergents may affect the op- eration of the machine and void the war- STEP 1: ranty. Install the black detergent nozzle for Always Use Kärcher Detergent for detergent application (will work at Best Results...

  • Page 10: Taking A Break ..Five Minutes Or More

    TAKING A BREAK ..five minutes or more STEP 1: For engine details see engine manu- Engine with manual throttle: STEP 2: Move the throttle lever to the SLOW position. Allow the engine to idle for Release trigger and engage gun a few seconds, then move the throt- safety lock.

  • Page 11: Winterizing And Long-Term Storage

    WINTERIZING AND LONG-TERM STORAGE 1: Disconnect all water connections. CAUTION 2: Turn on the machine for a few Failure to follow the above directions seconds, until the water which had will result in damage to the pump as- remained in the pump exits, turn off sembly and accessories and will void immediately.

  • Page 12: Cleaning Tips

    CLEANING TIPS sweeping motion keeping the spray Deck Cleaning nozzle approximately 6 inches from the (with or without detergent). Pre-rinse cleaning surface. deck and surrounding area with fresh CAUTION water. If using Kärcher Deck Wash, ap- Do not use Dirtblaster spray nozzle ply to surface at low pressure.
  • Page 13 clean from top to bottom and from left to sults, clean from top to bottom and from right. For best results, wipe surface dry left to right. with a chamois or soft dry cloth. CAUTION CAUTION Do not use Dirtblaster spray nozzle Do not use Dirtblaster spray nozzle on patio or lawn furniture as it may on vehicles as it may cause damage.

  • Page 14: Troubleshooting

    TROUBLESHOOTING CAUTION Remove the spark plug cable to prevent accidental ignition of the engine before making any repair. Symptom Cause Solution Engine will not No gasoline Fill gas tank start Choke is not in the correct Slide choke lever out to position.
  • Page 15 Symptom Cause Solution No detergent. Detergent suction tube not prop- Check connection. erly connected to the machine. Detergent is too thick. Dilute detergent, for best re- sults use Kärcher detergent. Filter on detergent suction tube Run warm water through filter is clogged.
