Summary of Contents for PMT EVO 2.0 EW

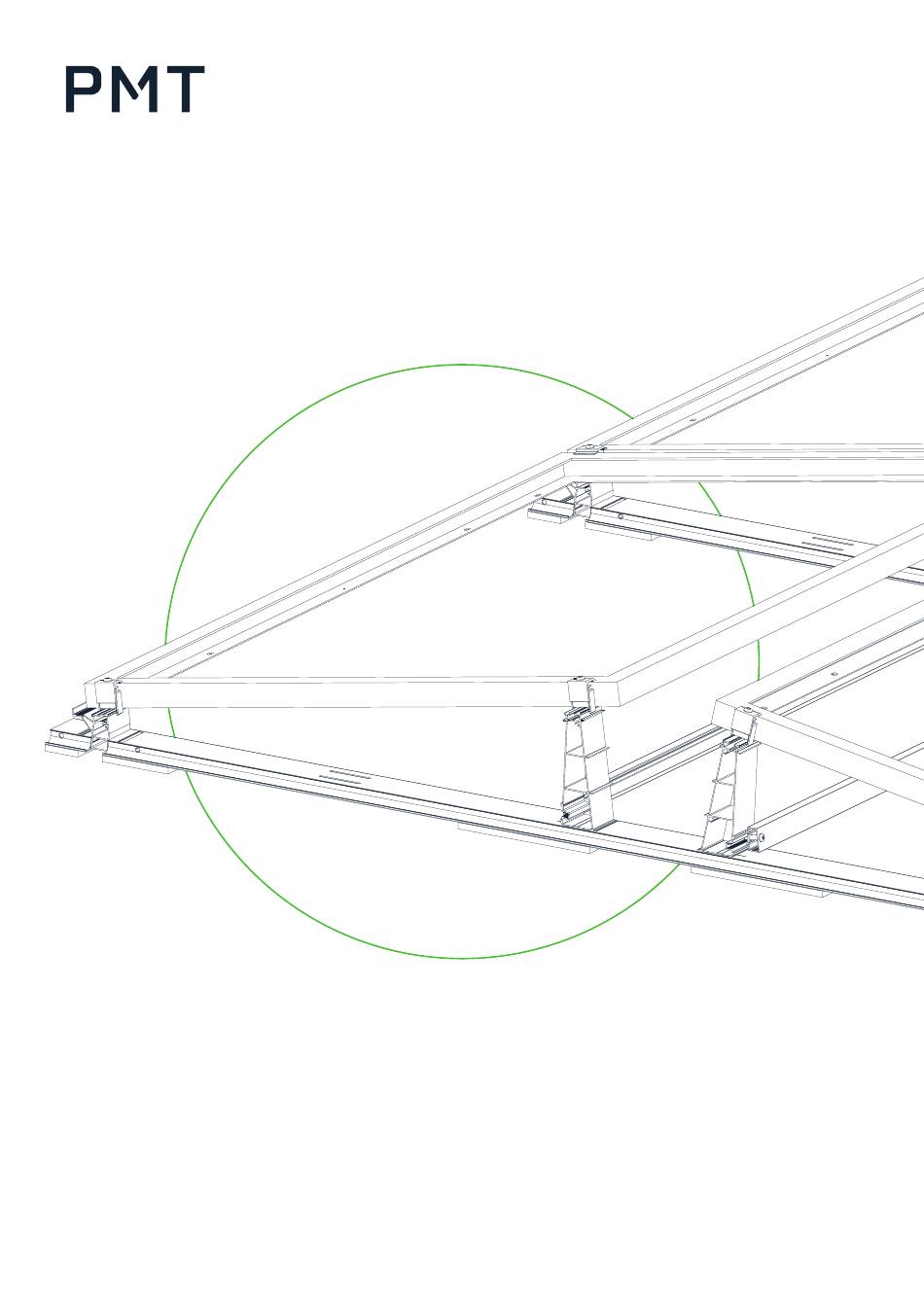

- Page 1 EVO 2.0 EW A S S E M B LY I N S T R U C T I O N S O N LY F I V E S T E P S T O T H E C O M P L E T E S Y S T E M...
-
Page 2: General Safety Instructions
In the event installation and upgrading using components of noncompliance, PMT reserves the right to that have not been supplied by us, we accept no exclude liability. liability for resulting defects and damages and warranty is rendered void in this instance. - Page 3 Components Edge profile Cross and ballast strut, Screw M8 x 30 Main profile Cross strut conector Base Ballast stone Main profile connector Middle and end clamp Tower PMT EVO 2.0 EW...
-
Page 4: Required Tools
Required Tools Tape measure Chalk line Torque wrench with attachment Distance gauge SW 5 mm allen key socket PMT EVO 2.0 EW... - Page 5 Set up the rows of main profiles with the spacing specified in the planning documents. Use the supplied spacing gauge between the insides of the main profiles. Adjustment: Module length – 95 mm CLICK! Attention! Check the latching connection for proper fitting. PMT EVO 2.0 EW...
- Page 6 Place and mount Tower CLICK! CORRECT! CLICK! INCORRECT! PMT EVO 2.0 EW...
- Page 7 Secure cross and ballast strut to cross strut connector Minimum 15 mm M8x30 10 Nm PMT EVO 2.0 EW...
- Page 8 Ballast stones on the double cross struts: Mount cross - and ballast struts as described in Step 3 on both tower sides. Place the stones evenly distributed on the the braces. PMT EVO 2.0 EW...
- Page 9 Assembly on the Tower CORRECT! Mount middle and end clamps screw on the modules 10 Nm INCORRECT! Middle clamp Minimum 20 mm Assembly on the Base 10 Nm CORRECT! End clamp CLICK! INCORRECT! DONE! PMT EVO 2.0 EW...
-
Page 10: Service Hotline
Service-Hotline +49 9225 9550 0 We are happy to advise you. Premium Mounting Technologies GmbH & Co. KG Industriestr. 25 D-95346 Stadtsteinach T +49 9225 9550 0 F +49 9225 9550 999 info@pmt.solutions www.pmt.solutions...
