- Page 1 PRODUCT MANUAL INCLINE ALARM SHUTDOWN SYSTEM 35 DEGREE DETECT Part No. 1800...
- Page 2 RCT provides the document to you on an “as is” basis. RCT is not required to provide any updates to this version of the document. RCT may make any change, amendment or modification to the contents in this document without notice to you.
-
Page 3: Table Of Contents
Contents General Safety Warnings Personal Safety Machine Product Product Overview Features and Functions Operation and Use Override Operation Installation Guide Wiring Connections Diagrams External Wiring for Energised-to-Stop Machines (195n) Calibration Service Information Service Schedule Service Procedure Override Test Parts List Technical Specifications Compliance and Standards... -
Page 4: General Safety Warnings
Ensure electrical connections are made as per RCT’s recommendations. Test circuits prior to connecting power to any component. ■ The equipment contains no user serviceable parts inside. Return the unit to RCT for repairs. ■ Retain product and installation instructions for future use. -
Page 5: Product Overview

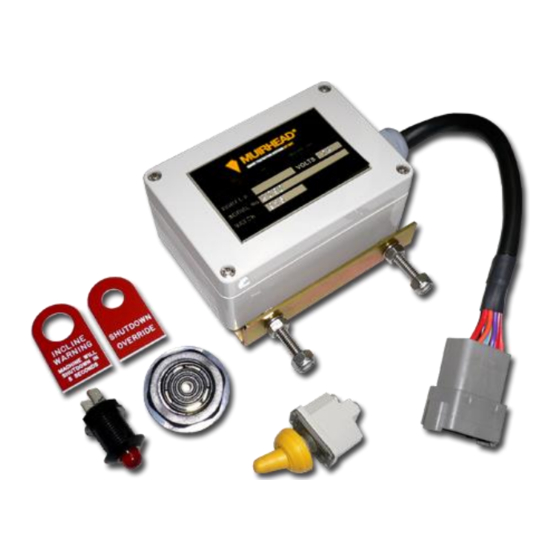

Product Overview ® Figure 1 Muirhead Incline Alarm Shutdown 35-Degree Detect Controller ® The Muirhead Incline Alarm Shutdown 35 Degree Detect controller, part number 1801, is a safety device to alert operators that the machine they are controlling has reached a preset angle that may be unsafe for continued operation. -
Page 6: Operation And Use
Operation and Use This product has been designed to warn mobile machinery operators that their machine is operating on a dangerous incline. If the machine exceeds the maximum allowable incline (set to approximately 35 degrees ± 10 degrees in all directions) the operator will be alerted via audible and visual warning for a preset time. This warning period is switch selectable between 5, 6, 15, and 25 seconds. -
Page 7: Diagrams
Diagrams External Wiring for Energised-to-Stop Machines (195n) Figure 2 Drawing 195n – External wiring for energized-to-stop machines 7 | 12 M0085.docx | Rev 2.2 | Modified on 5/12/2018 | © Remote Control Technologies Pty Ltd... -
Page 8: Calibration
Calibration The shutdown delay time settings can be adjusted by using dip switches on the printed circuit board. The following table shows the settings. Time 25 seconds 15 seconds 6 seconds 5 seconds Factory setting Service Information Service Schedule The manufacturer recommends that the following service procedure should be performed at each machine’s scheduled service interval. -
Page 9: Parts List
Parts List Quantity Part No. Description Included Parts Suggested Parts 1801 Control unit 1520 Override switch 3267 Override switch cover 1723 Warning alarm 9393 Warning LED 6896 Shutdown override label 9419 Incline warning label 0821 Blue spade terminals 0822 Yellow spade terminals 0824 4.2 mm eyelet terminal 0826... -
Page 10: Glossary
Multi-Function Unit Percentage Mega Hertz (million(s) cycles per second) Warranty Please see the RCT standard warranty, available on our website - www.rct-global.com. 10 | 12 M0085.docx | Rev 2.2 | Modified on 5/12/2018 | © Remote Control Technologies Pty Ltd... -
Page 11: Revision History
Revision History Date Details of change 16/08/2004 Initial document draft and approval 27/11/2015 Updated the following sections: - Operation and Use - Calibration - Service Information 13/06/2016 Updated Overview and Parts List sections. Updated drawing 195n Updated manual format and added Table of Figures and Revision History 05/12/2018 sections. - Page 12 Discover more: www.rct-global.com sales@rct-global.com AUSTRALIA: +61 (0) 8 9353 6577 AFRICA: +27 (0) 83 292 4246 CANADA: +1 705 590 4001 RUSSIA / CIS: +7 (910) 411 11-74 SOUTH AMERICA: +56 3 5229 9409 USA: +1 801 938 9214...
