- Page 1 MODEL MOWER OWNER’S & PARTS MANUAL 2010 Edition For additional information, please see us at www.badboymowers.com Bad Boy, Inc. 102 Industrial Drive Batesville, Arkansas 72501 (870) 698-0090 PAGE 1...
- Page 2 TABLE OF CONTENTS Basic Information ................... Section 1 (pages 3, 4) Bad Boy Safety Guidelines ................Section 2 (pages 5, 6) Operation ....................... Section 3 (pages 6, 7) Maintenance ......................Section 4 (page 7) Storage and Transportation ................. Section 5 (page 8) Adjustments ....................

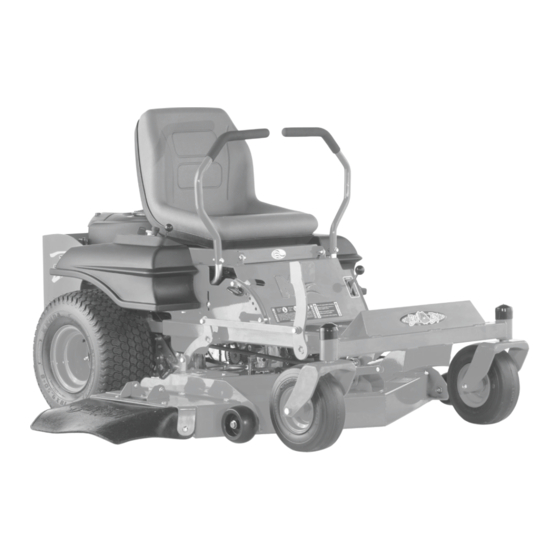

- Page 3 This manual applies to the following equipment: Bad Boy MZ Series MZ 42˝ 21 hp Briggs MZ 48˝ 26 hp Briggs ALL INFORMATION IN THIS MANUAL MAY NOT APPLY TO YOUR MOWER! PAGE 3...
-
Page 4: Basic Information
Lightning, Pup, AOS, Diesel model serial numbers are found on the SIN plate, located underneath the floor panel. ZT and MZ model serial numbers are found on the SIN plate underneath seat. The serial numbers are necessary on the warranty registration form. Also, these numbers can assist you in the ordering of new parts when replacements become necessary. -
Page 5: Mower Operation
SECTION 2: MOWER OPERATION Never allow untrained people to operate this machine. It is the owner’s responsibility to get training and see to it that anyone who has permission to use your machine receives the proper training. Do not mow around people. The factory discharge chute is designed to deflect debris downward, but it could be possible for debris to be thrown in a way that can cause damage to people or property. - Page 6 2.23 Safety warning decals are located on the mower and should always be observed and followed. 2.24 Never operate the mower with the discharge chute open. 2.25 Prevent Fires—Remove grass and debris from engine compartment and muffler area, before and after operating machine, especially after mowing or mulching in dry conditions. 2.26 Do not store machine near open flame or source of ignition, such as a water heater or furnace.
-
Page 7: Mower Maintenance
The machine could lose traction on a decline or tip backwards on an incline. 3.14 Once you become comfortable with your Bad Boy Mower you will notice your overall mowing time will decrease. -
Page 8: Mower Storage
6.10 DO NOT OVER ADJUST – CABLE BREAKAGE MAY OCCUR. DRIVE ARM ADJUSTMENT 6.11 Due to the sensitive nature of drive arm adjustments visit an Authorized Bad Boy Dealer and they’ll be happy to help you with this. PAGE 8... -
Page 9: Troubleshooting
STANDARD HYDRAULIC/ OIL/FILTER SERVICING PROCEDURE 6.12 On all Bad Boy ZT and MZ Models, the hydraulic oil filters need to be initially changed when the mower has reached 50 hours of usage. Each subsequent changing of the hydraulic oil and filters needs to occur every 250 hours or once a year. The required hydraulic oil is 20W50 motor oil On all Bad Boy commercial models, the hydraulic oil and filters need to be initially changed when mower has reached 50 hours of usage. - Page 10 7.11 A: Maintenance, mowing conditions, temperature, and hours of operations play a huge role in the life of a mower. However, Bad Boy Mowers are without a doubt the strongest, most durable zero-turn mower available. With proper care, your Bad Boy will deliver many years of reliability, productivity, and comfort.
- Page 11 8.3 Choke Control—A cable is linked to manually operate the engine choke. When the lever is in the down position, the choke is in the off (run) position. When the lever is pulled up, the choke is in the on (start) position. Do not operate the machine in the on (start) position. The choke lever is behind the throttle control.
- Page 12 By pulling the arms out the mower can be put in a neutral position. Return the arms to the “forward position for normal operation. 9.5 Your Bad Boy Mower Weighs: MZ SERIES: 585—602 lbs *** Weights fluctuate with the addition of accessories.
- Page 13 10.2 Oil Pressure Light—NOT ON ZT or MZ MODELS—This light comes on upon placing the ignition switch in the RUN position and stays lit until the engine is running and a safe oil pressure is built up.
-
Page 14: Greasing The Bearings
SECTION 11: MOWER BLADE MAINTENANCE 11.1 Check mower blades after each use. This is essential for maintaining well-groomed turf. Keep the blades sharp. If a dull blade is used for cutting, the grass will tear rather than cut. This could damage the grass leaving a brown frayed top on the grass within a few hours. A dull blade will also require more power from the engine. - Page 15 PARTS MANUAL FOR YOUR MZ Model Zero Turn Mower PAGE 15...
- Page 16 PAGE 16...
- Page 17 PAGE 17...
- Page 18 PAGE 18...
- Page 19 PAGE 19...
- Page 20 PAGE 20...
- Page 21 PAGE 21...
- Page 22 PAGE 22...
- Page 23 PAGE 23...
- Page 24 PAGE 24...
- Page 25 PAGE 25...
- Page 26 PAGE 26...
- Page 27 PAGE 27...
- Page 28 PAGE 28...
- Page 29 PAGE 29...
- Page 30 PAGE 30...
- Page 31 Bad Boy, Inc. 102 Industrial Drive Batesville, AR 72501 1.866.622.3269 www.badboymowers.com Technical Support: James Russell ......................Extension 6638 Bill Hurst (bill@badboymowers.com) ............... Extension 6617 Brad Covington ......................Extension 6648 Warranty: Dustin Tissiere (dustin@badboymowers.com) ............Extension 6613 Bill Hurst (bill@badboymowers.com) ............... Extension 6617 Parts: Brad Foree (brad@badboymowers.com) ..............Extension 6637...
- Page 32 For additional information, please see us at www.badboymowers.com Bad Boy, Inc. 102 Industrial Drive Batesville, Arkansas 72501 (870) 698-0090 PAGE 32...
