Summary of Contents for ANTEK Green Energy AIR MAGNA 200

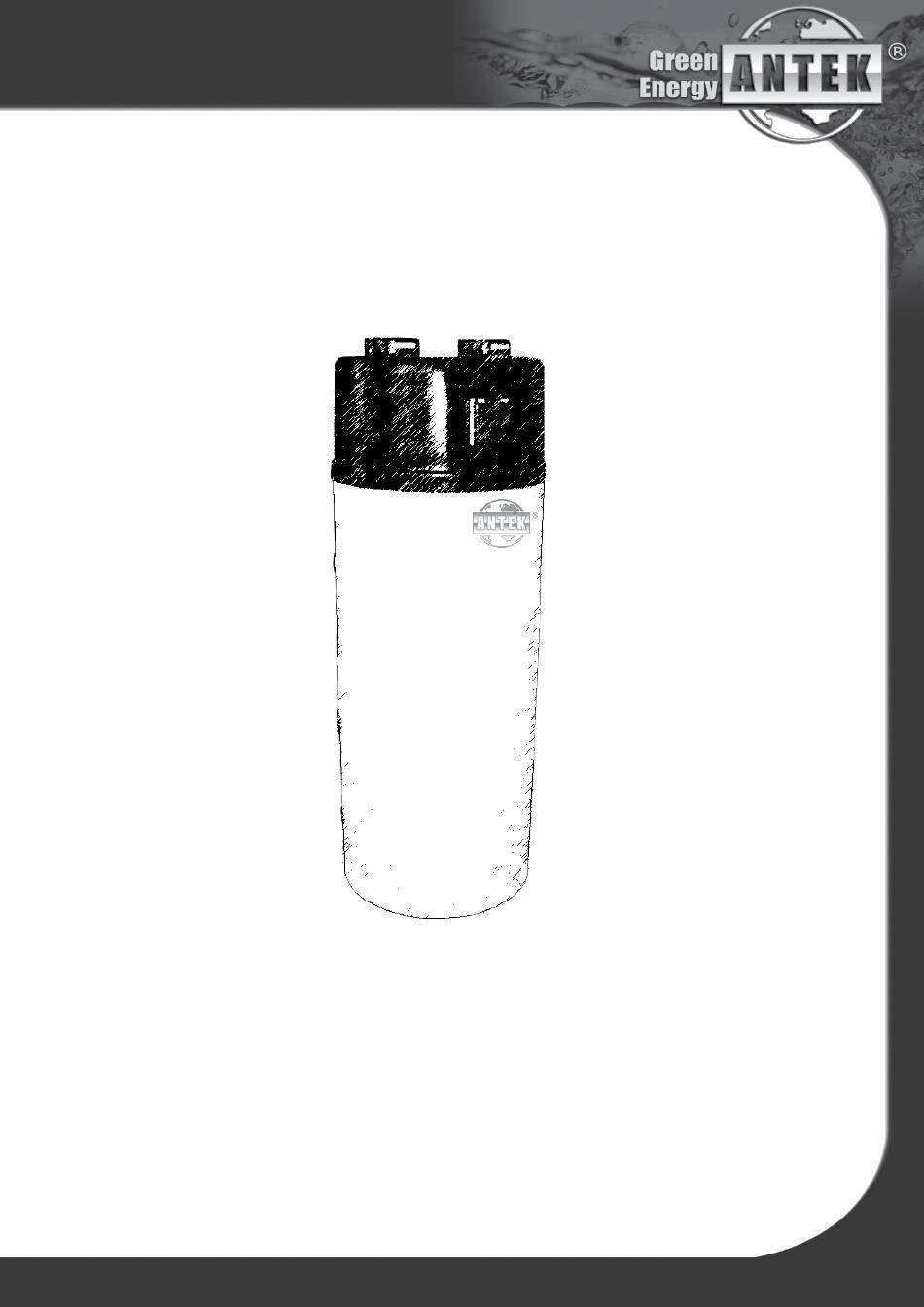

- Page 1 AIR MAGNA 200 INSTALLATION AND MAINTENANCE INSTRUCTIONS...
- Page 2 AIR MAGNA 200 GREEN ENERGY SYSTEMS The 6 essential points Control the delivery: before any handling, to check the state of the heat pump after having removed the packing of protection. Any degradation related to transport will have to be announced on the form of transport and by Letter Registered AR under 48 hours to the conveyor.
-
Page 3: Table Of Contents
Contents 1. Security consigny 2. Description of the heat pump 2-1 Outside 2-2 Inside 2-3 Dimentional and technical caracteristics 3. Fitting and putting into service of the heat pump 3-1 Rules of establishment 3-2 Hydraulic connections 3-3 Electric connections 3-4 Running of reversible heat pump 3-5 Description of the screen of display and control 4. -
Page 4: Security Consigny
AIR MAGNA 200 GREEN ENERGY SYSTEMS 1-Security consigny Any wrong handling can cause an important risk being being able to result in death Attention Any wrong handling can cause serious damage to the user and the machine Avertissement TO NOT DO... - Page 5 CAUTION Do not climb on the unit or try to move it when Do not climb on the unit or try to move it when installed. installed. Never introduce a stick, your finger or others in Important: Well clean the plug the air inlet/outlet.
-
Page 6: Description Of The Heat Pump
AIR MAGNA 200 GREEN ENERGY SYSTEMS 2- Description of the heat pump 2-1 Outside Power Plug Control pannel Air lnIet Air Outlet Temperature Sensor Drainage hole Cold Water Inlet Hot Water Outlet Service valve solar coil inlet * solar coil outlet *... -
Page 7: Inside
2-2 Inside Control panel cover Gas returning pipe Drainage Pipe Power plug Exhaust pipe Rubber Cover Clip of Power Cable Filter Electrical heater * Auxilliary capillary Plastic Base Capillary Water tank Defrost sensor Motor Capacitor Assistant unit of air outlet Compressor capacitor Fan motor Compressor... -
Page 8: Dimentional And Technical Caracteristics
AIR MAGNA 200 GREEN ENERGY SYSTEMS 2-3 Dimentional and technical caracteristics ArtNo AM200-1,AM200-2 AM200-3 Model Code 120/150/200 Ratin Healing Capacity (kW) 2.68 3.40 Ratin Heating Power Input (kW) 0.85 1.09 Heating Current (A) Refrigerant (g) ( R410A) Compressor Quantity Fan Quantity... -
Page 9: Fitting And Putting Into Service Of The Heat Pump
3- Fitting and putting into service of the heat pump 3-1 Rules of establishment Ma measures define the place of the appliance. it is essential to respect them: Electric and hydraulic connections must be carried out according to national wiring regulation. • The appliance must be installed outside • The appliance must be put on its antivibratory studs, regulated with horizontal and on a massive base (concrete stone or steel frame);... -
Page 10: Hydraulic Connections
AIR MAGNA 200 GREEN ENERGY SYSTEMS 3-2 Hydraulic connections Refer the diagram below: 1. Connect the mouth for hot- water- in to the water tank with PP-R pipe, with other metal pipe. Pay attention to heat preservation if use metal pipe. - Page 11 Many system-design options for architects Option A: • Installation in the heating room. • Hot water heating from room air. • Optional use: cooling of the food storage or wire cellar. cooling of the room of your choice. Option B: • Installation in the laundry washing room.
-
Page 12: Electric Connections
AIR MAGNA 200 GREEN ENERGY SYSTEMS 3-3 Electric connections CAUTION: before connecting the appliance, make sure that the supply power line in disconnected from the network. Characteristies of the general power supply: • mode of neutral TT and TN.S; the circuit of heat pump must be connected to an earthing circuit Connections: • The electric Installation must be carried out by a professional qualified (like an electrician) -
Page 13: Running Of Reversible Heat Pump
3-4 Running of reversible heat pump By using the free energy contained in the ambient air, the heat pump enables to heat the water of the water in a very economic way. Your heat pump is a heat machine that can transfer the heat from a low temperature place (ambient air) to a higher temperature place. -
Page 14: Description Of The Screen Of Display And Control
AIR MAGNA 200 GREEN ENERGY SYSTEMS 3-5 Description of the screen of display and control 1. With water tank assistant electical heater Two figures on the left: current temperature of the water tank Or two figures on the right: desired temperature... -
Page 15: Use In Standard Mode
4- Us in standard mode Starting Operation Press “ “ button, and when the unit receives the signal, it gives out two“ beep “tones, the operation is on and the heat pump water heater stars operation. lf the interval shorter than 3 minutes from last shut down to the present switch-on, the compressor only restarts after 3 minutes to protect the system. - Page 16 AIR MAGNA 200 GREEN ENERGY SYSTEMS Adjustment of the defrosting 1-Press on “ “ or ” “ for 3 seconds , you can see (for example) 1 . -7 The first number is the symbol of the item; and the second value is the setting value of the current item.
-
Page 17: Instruction For The Fitter
5- Instruction for the fitter The fitter has to read the following notice and explain the instructions to the user. 5-1 Devices of control and safety The beet pump is equipped with: 2 control devices: • A defrost temperature probe located on the evaporator, starts the defrost sequence. • A thermal probe located on the exchanger, ensures the cut of the heat pump when the temperature of the water reaches the temperature instructed The meaning of code name:... -
Page 18: The Defaults Messages And What To Do
AIR MAGNA 200 GREEN ENERGY SYSTEMS 5-4 The defaults messages and what to do Failure code: E1: sensor for T1 (water temperature) failure F2: sensor for T2 (ambient temperature) failure E3: sensor for T3 (exhaust temperature from compressor) failure E4: sensor for T4 (coil temperature in condenser) failure E5: Compressor stops three times in 24 hours because the current is too high. -
Page 19: The Three Electric Heaters
7 - The three electric heaters 1. Condenser electric heater * Working conditions: During the compressor running: A . the heater start in defrosting period, to Speed up defrosting, to reduce defrosting time; B .When ambient temperature is less than 2°C, the heater start, and it stop when ambient temperature is more than 4°C. -
Page 20: Gas Flow Diagram
AIR MAGNA 200 GREEN ENERGY SYSTEMS 8- Gas FIow Diagram HEATING: Four way Exchanger valve 2 Capillary 2 Capillary 1 Four way valve 1 Water Outlet Water tank Water Inlet Compressor COOLING: Four way Exchanger valve 2 Capillary 2 Capillary 1... -
Page 21: Wiring Diagram
9- Wiring Diagram Without Water Tank Electrical Heater With Water Tank Electrical Heater... -
Page 22: Problems / Solutions
AIR MAGNA 200 GREEN ENERGY SYSTEMS 10- Problems / solutions The difficulties met the most often can be solved by reading the table below. If nothing corresponds to the list, or if the solutions applied do not solve the problem, refer to the notice or contact your retailer. - Page 23 Notice:...
- Page 24 ANTEK Green Energy Systems A DIVISION OF ANTEK INDUSTRIAL GROUP Office: Boerhaavegasse 8A A- 1030 Wien Office and Warehouse: Donaulände 11 A-2403 Regelsbrunn Tel: +43 (0) 1 | 89 04 04 4 Fax: +43 (0) 1 | 89 04 04 41 5 E-Mail: www.info@antek.at...
