Peak Pressure Indicator
This publication may not be reproduced by any means whatsoever or passed on to any third parties.
8018
HEINZMANN
Engine & Turbine Management
Safety Systems
CPM 500
Electronic

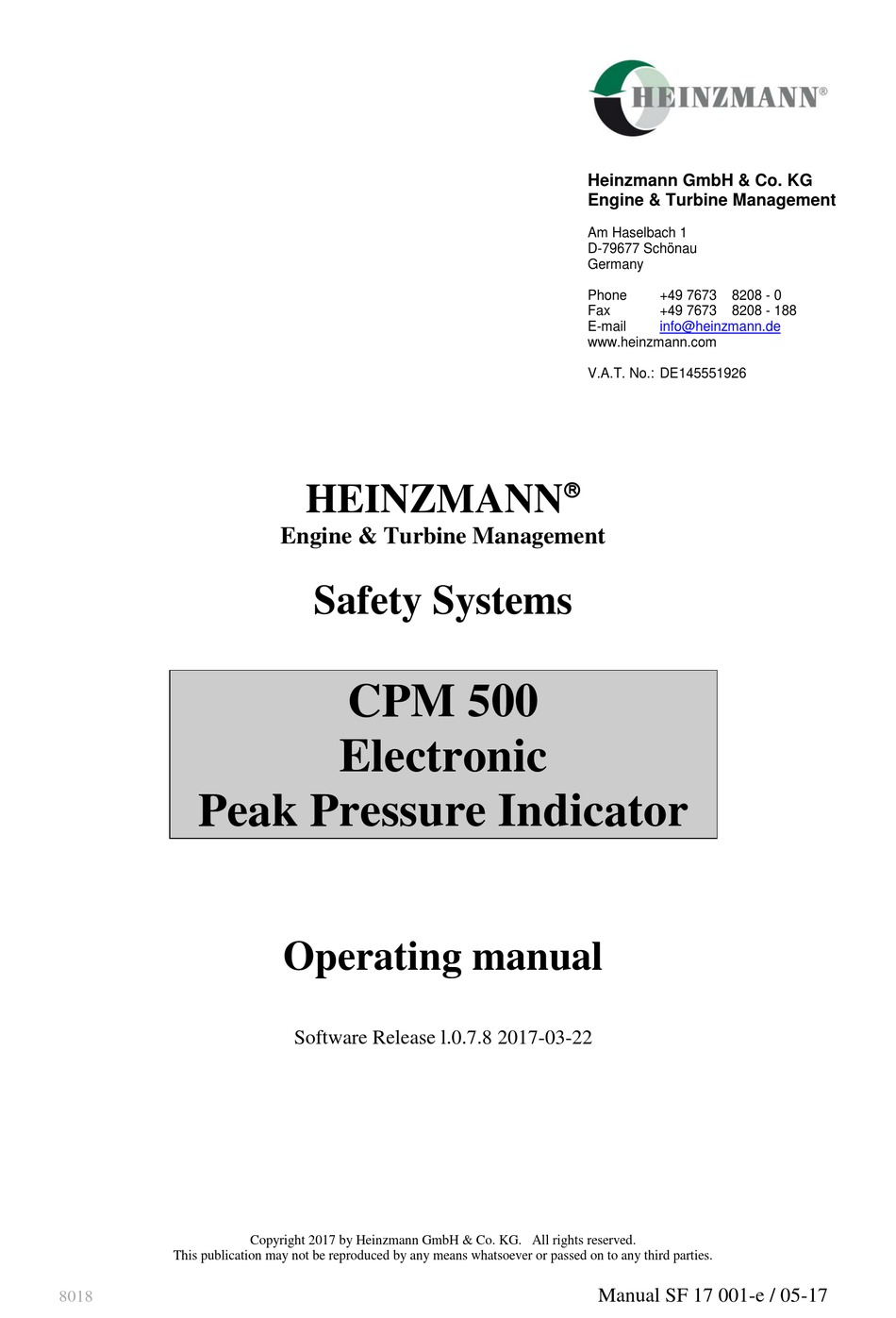

Operating manual
Software Release l.0.7.8 2017-03-22
Copyright 2017 by Heinzmann GmbH & Co. KG. All rights reserved.
Heinzmann GmbH & Co. KG
Engine & Turbine Management
Am Haselbach 1
D-79677 Schönau
Germany
Phone
+49 7673
Fax
+49 7673
E-mail
info@heinzmann.de
www.heinzmann.com
V.A.T. No.: DE145551926
Manual SF 17 001-e / 05-17
8208 - 0
8208 - 188

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Triton CPM 500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Heinzmann Triton CPM 500

  • Page 1 Operating manual Software Release l.0.7.8 2017-03-22 Copyright 2017 by Heinzmann GmbH & Co. KG. All rights reserved. This publication may not be reproduced by any means whatsoever or passed on to any third parties. Manual SF 17 001-e / 05-17...

  • Page 2: Table Of Contents

    Contents Content Scope of supply ________________________________________________________ 4 Important information __________________________________________________ 5 Use of the operator manual __________________________________________________ 5 Description ___________________________________________________________ 6 Introduction ______________________________________________________________ 6 Measure functions _________________________________________________________ 6 Functional description ______________________________________________________ 6 Operation _____________________________________________________________ 7 Operator push buttons _____________________________________________________ 7 Operating functions ________________________________________________________ 8 Installation of visualisation- and USB driver software ____________________________ 9 Select COM port of PC _____________________________________________________ 9...
  • Page 3 Contents 5.7.1.3 Indication of all cylinder pressure (all) versus crank angle __________________________ 28 Screen page “Pcomp Balance” ____________________________________________________ 29 5.7.2 Screen page “IMEP” ____________________________________________________________ 29 5.7.3 Screen page “IMEP balance” _____________________________________________________ 30 5.7.4 Screen page “Engine data” _______________________________________________________ 30 5.7.5 Screen page “Engine report”...

  • Page 4: Scope Of Supply

    1 Scope of supply Scope of supply Fig.1: Instrument case with all components CPM 500 Electronic Peak Pressure Indicator...

  • Page 5: Important Information

    We strongly recommend you to read the complete manual before using the equipment. If you already have experience with HEINZMANN systems you may only read the relevant chapters for the required information. It was our intention to structure this manual in a clear layout, to enable you to get easy and instant access to the information you are looking for.

  • Page 6: Description

    3 Description Description 3.1 Introduction The electronic indicator CPM 500 is a handy, battery powered, portable device to measure and evaluate cylinder pressure on diesel engines at speed up to 1500 RPM. The CPM 500 collects 10 consecutive pressure measure- ments (cycles) and calculates peak pressure and engine speed.

  • Page 7: Operation

    4 Operation Operation 4.1 Operator push buttons Arrow up ““ Start measurement Arrow down ““ Read measurement Selection of On/Off 2- or 4-stroke engine Fig. 2: Push buttons Remarks: After switching “On“, the CPM 500 automatically starts in 2-stroke mode. For converting to initial 4- stroke mode, the user must connect the CPM 500 via USB cable to a powered up PC.

  • Page 8: Operating Functions

    4 Operation 4.2 Operating functions Function Key board Display Notes push button Switch On/Off Basic settings will be dis- played after switching on: Cyl:1 = cylinder no.1 2 stroke = 2 stroke engine 4 stroke = 4 stroke engine Pmax in bar ; RPM: speed Push key “2/4“...

  • Page 9: Installation Of Visualisation- And Usb Driver Software

    4 Operation 4.3 Installation of visualisation- and USB driver software The scope of supply includes the HEINZMANN visualisation software on CD-ROM for displaying and analysing the measured data in numeric and graphic format. Hardware requirements IBM PC Pentium or 100 % compatible, USB port...

  • Page 10: Charge Battery

    4 Operation 4.5 Charge battery The CPM 500 has a re-chargeable battery. The battery charging will start automatically after the CPM 500 unit has been connected via USB cable from USB port to PC (fig. 4,5,6,7) port Fig. 4: USB-port of CPM 500 Note: At first usage please connect CPM 500 via USB cable to PC.

  • Page 11: Change Battery

    4 Operation 4.6 Change battery Note: Please only use re-chargeable battery E-block type “ANSMANN 250 mAh NiMH” For changing the re-chargeable battery the battery cover on the back side of CPM 500 must be opened (fig.9,10,11). Do not change battery during charging process while CPM 500 is connect via USB cable to PC. Fig.8: Battery cover Fig.9: Re-chargeable E-block battery type:Ansmann + Pol...

  • Page 12: Measuring With Cpm 500

    4 Operation 4.8 Measuring with CPM 500  Charge battery Charging time: min. 2 hours  Start measurements on the engine 2-and 4 stroke application Open indicator cock and close. Install sensor with adaptor at cylinder no.1 and open indicator cock Press “On”...

  • Page 13: Visualisation Software Release 1.0.7.8

    5 Visualisation software release 1.0.7.8 Visualisation software release 1.0.7.8 5.1 Main tool bar buttons Load new measurement data from EPM-XP Open stored measurement data set Save all data to ASCII file Print screen page Print all screen pages Cross On function Program exit Delete measurements at EPM-XP Selection of “Motored curve “...
  • Page 14 5 Visualisation software release 1.0.7.8 Functions for power calc. function. Only visible with Dongle 620-66-002-00 Selection window of cylinder Derivative curve p/alpha, p/v diagram Indication Pmax 10 cycles Indication of Pcomp 10 cycles (only on two strokes) Close and open reference file Save a reference file Selection of engine type Select files (*.ext format)

  • Page 15: Load Measured Data From Cpm 500 To Pc

    5 Visualisation software release 1.0.7.8 5.2 Load measured data from CPM 500 to PC At first visualisation software must be started. CPM 500 must be connected via USB cable to PC Press “New” to load measurement data from CPM 500 to PC The software opens a window to name the file for storing on PC Remark: The format of data files are *.ext.

  • Page 16: Monitoring Of Combustion Data

    5 Visualisation software release 1.0.7.8 5.4 Monitoring of combustion data 5.4.1 Screen page “Cylinder pressure curve” Indication of pressure curves of Indication of Indication of Indication of measured cylinder 1…n. Engine Report Pmax diagram Pmax Balancing (n = measured cylinder; max:20) Remark field Field „Engine data“...

  • Page 17: Cross On Function

    5 Visualisation software release 1.0.7.8 Zoom-function Zoom function on: Hold left mouse button pushed down and draw across the curve from top left down to right bottom corner. Zoom function off: Hold left mouse button pushed down and draw across the curve from right bottom up to top left corner.

  • Page 18: Save To Ascii

    5 Visualisation software release 1.0.7.8 5.4.1.3 Save to ASCII Press “ASCII-File” to save all measurement data to Excel (*.csv) files. The software opened a window to store data to (*.csv) files. 5.4.1.4 Optimize function for application on two-strokes IMES algorithm for automatic Pcomp position calculation on two-strokes can be influenced by some noises on the pressure signal.
  • Page 19 5 Visualisation software release 1.0.7.8 Check lowest position of derivative curve Select „Derivative curve“ Derivative curve Lowest point of derivative curve is before TDC! 3. Shift curve into optimum pos. of Pcomp by pressing button “Optimize”. All incorrect curves are shifted automatically into optimum position of Pcomp.

  • Page 20: Save Shift

    5 Visualisation software release 1.0.7.8 All curves shifted into optimum Pcomp position 5.4.1.5 Save Shift After shifting curves the operator has the possibility to save shifted data as *.ext file under new name. CPM 500 Electronic Peak Pressure Indicator...

  • Page 21: Automatic Pcomp Calculation On Four-Strokes

    5 Visualisation software release 1.0.7.8 5.4.1.6 Automatic Pcomp calculation on four-strokes During the first opening of measurement data file (*.ext) the Pmax value is centered at TDC (0°CA). For Pcomp calculation on 4-stroke calculation the operator should press “Optimize” button. Press “Optimize“...

  • Page 22: Additional Functions

    5 Visualisation software release 1.0.7.8 Click on “Motored curve“ for display Click on “Derivative curve” for display 5.4.1.7 Additional functions 5.4.1.7.1 Save shift After automatic Pcomp calculation the operator has the possibility to save shifted data as *.ext file a under new file name.

  • Page 23: Screen Page "Pmax Diagram

    5 Visualisation software release 1.0.7.8 Shifted curve into reference curve 5.4.2 Screen page “Pmax diagram” Pmax- and Pcomp values will be displayed. 5.4.3 Screen page “Engine report” CPM 500 Electronic Peak Pressure Indicator...

  • Page 24: Screen Page "Pmax Balance

    5 Visualisation software release 1.0.7.8 5.4.4 Screen page “Pmax balance” 5.4.5 Screen page “Remarks” The user can write important remarks into this field and save it. 5.4.6 Screen page “Engine data” Manual input of scavenge air pressure in 0.1 steps from 0.1 …6.0 bar.

  • Page 25: Open *.Csv Files With Excel

    5 Visualisation software release 1.0.7.8 5.6 Open *.csv files with Excel Start Excel program and open selected *.csv file ( Microsoft Office Excel Comma Separated Values File) Mark measurement data of cylinder Select diagram type Curves can be copied to own report Reihe2 Reihe3 Reihe4...

  • Page 26: 620-66-002-00 Ipower- And Imep Calculation

    5 Visualisation software release 1.0.7.8 5.7 620-66-002-00 IPOWER- and IMEP calculation On two stroke applications the software calculates IPOWER and IMEP automatically. Please check optimum of Pcomp position (according to chapter 5.4.1.4), because it influences the accuracy of IPOWER and IMEP calculation.
  • Page 27 5 Visualisation software release 1.0.7.8 Selection of: - Derivative curve - single - all cylinder - PV single -PV all - Pmax or Pcomp 10 cycles Remark: For power calculation it is necessary to enter specific engine parameter (bore, stroke and conrod length in mm) at screen page “Engine data”...

  • Page 28: Indication Of Cylinder Pressure (Single) Versus Volume

    5 Visualisation software release 1.0.7.8 5.7.1.2 Indication of cylinder pressure (single) versus volume 5.7.1.3 Indication of all cylinder pressure (all) versus crank angle CPM 500 Electronic Peak Pressure Indicator...

  • Page 29: Screen Page "Pcomp Balance

    5 Visualisation software release 1.0.7.8 5.7.2 Screen page “Pcomp Balance” Remark: On 4-stroke engine applications Pcomp Balance will not be displayed! 5.7.3 Screen page “IMEP” CPM 500 Electronic Peak Pressure Indicator...

  • Page 30: Screen Page "Imep Balance

    5 Visualisation software release 1.0.7.8 5.7.4 Screen page “IMEP balance” 5.7.5 Screen page “Engine data” CPM 500 Electronic Peak Pressure Indicator...

  • Page 31: Screen Page "Engine Report

    5 Visualisation software release 1.0.7.8 Please enter: Shipname, Engine type and Engine no. For power calculation it is necessary to enter specific engine parameter (bore, stroke and conrod length in mm). Important specific engine data from MAN B&W are stored in the program (Open Engine selection). For correct values of bore- stroke and con-rod length please see also our list of specific engine data (see Appendix 1).
  • Page 32 5 Visualisation software release 1.0.7.8 Selection of engine type Input of indicated engine power and selection deviation in %. Default value 100 % Selection of values Selection of cylinder Information available by mouse click Information of about time of measurement data CPM 500 Electronic Peak Pressure Indicator...

  • Page 33: Accuracy Check

    6 Accuracy check Accuracy check The CPM 500 is adjusted at HEINZMANN workshop at different pressure values (0…300 bar)- and temperature values (50°C- 200°C). The values are described at calibration certificate (see fig.13). A calibration certificate will be delivered with each CPM 500 unit.

  • Page 34: Connection Of Cpm 500 To Pressure Calibrator

    6 Accuracy check 6.1 Connection of CPM 500 to pressure calibrator Connect CPM 500 unit with thompson adaptor to pressure calibrator (fig.14). Please check possible leakage at adaptor by generating pressure. Fig.14: Connection of CPM 500 to pressure calibrator Note: The pictured pressure calibrator is an example to generate pressure. At your workshop you can use your standard pressure calibrator.

  • Page 35: Generate Pressure At Pressure Calibrator

    6 Accuracy check 6.2 Generate pressure at pressure calibrator We emphasize to check CPM 500 at most frequently measured Pmax-value on engine. For example pressure values at 0 bar and between 100 bar – and 200 bar. 0 bar Fig.15:Example for indication of static pressure by Fig.16: Example for indication of static pressure value generating pressure at pressure calibrator at CPM 500 display...

  • Page 36: Example Of Displayed Cpm 500 Values During Pressure Check

    CPM 500 is +/- 2.5 bar. By increasing pressure difference we emphasize to send CPM 500 unit to HEINZMANN workshop for new adjustment and calibration. The accuracy of the CPM 500 unit acc. technical data is +/- 0.5% full scale (0…300 bar) between adjusted temperature range of 50°C- 200 °C.

  • Page 37: Cleaning

    7 Cleaning Cleaning 7.1 Periodically cleaning Clean gas channel of thompson adaptor by compressed air periodically (see fig. 20) Fig. 20: Periodically cleaning of gas channel 7.2 Cleaning in case of hard deposit For elimination hard deposit please disconnect sensor from adaptor by using tools with wrench size 19mm and 22 mm (fig.21).

  • Page 38: Cleaning Procedure Of Adaptor

    7 Cleaning 7.3 Cleaning procedure of adaptor Please use a drill with 2.5 mm diameter for to clean gas channel of adaptor (fig. 23 and fig. 24) Fig. 23: Drill 2,5 mm Fig. 24: Drill in case channel for cleaning Clean gas channel of adaptor with a drill 2.5 mm and clean gas channel of cylinder pressure sensor with special tool.

  • Page 39: Basic Check For Fault Finding

    5-10 minutes measuring cell > 300 °C High offset Sensor is defect. Please send CPM 500 unit to HEINZMANN workshop No signal Open indicator cock Engine speed is lower than 10 RPM or Indicator cock is not opened * If battery of standard NiMh 250 mAh type Ansmann can not be charged or available than operator can use for measurements Alkaline battery 9V for a short time.

  • Page 40: Nomenclature

    9 Nomenclature Nomenclature Item Description Engine speed Pmax Mean value of maximum pressure [bar] Cycles Number of working cycles dp/ca Maximum rise of pressure curve [bar/ca] Pcomp Compression pressure [bar] CPM 500 Electronic Peak Pressure Indicator...

  • Page 41: Technical Data

    10 Technical data Technical data 0…300 bar Measuring range Accuracy (CPM 500 incl HTT cylinder pressure sensor) < 0,5 % Full Scale Max. temperature at measuring cell 300 °C Storing capacity 20 measurements / engine Interface Battery E-block re-chargeable type ANSMANN 250 mAh NiMh Dimension 180 x 24 x 52...

  • Page 42: Thomson Adapter

    11 Thomson Adapter Thomson Adapter CPM 500 Electronic Peak Pressure Indicator...
  • Page 43 11 Thomson Adapter Appendix 1. The Con-rod length is seldom in the engine manual. While this data is mostly correct, no responsibility is held for errors. Engine type Bore in mm Stroke in mm Con-rod in mm MAN B&W 2-stroke L35MC 1050 1260...
  • Page 44 11 Thomson Adapter Engine type Bore in mm Stroke in mm Con-rod in mm MAN B&W 2-stroke L80GB 1950 2928 K90GB 2180 3280 K90GFCA 1800 2670 K90MC 2550 3505 K98ME 2660 3220 S90ME-C 3188 3270 Wartsilä Sulzer 2-stroke RTA48T-D/-B 2000 1860 RT-flex50-D/-B 2050...
  • Page 45 11 Thomson Adapter Wartsilä Sulzer 2-stroke RTA76 2200 3250 RTA84 2400 2760 RTA84M 2900 2480 RTA84T 3150 3300 RTA84C 2400 2460 RTA96C 2500 2880 RT96flex 2500 2880 Mitsubishi 2-Stroke UEC37LA 1250 UEC43LS II 1500 1600 UEC45LA 1350 1619 UEC52LS 1850 2159 UEC52LA 1600...
  • Page 46 11 Thomson Adapter Daihatsu DK 20 Yanmar N21-AL EY18ALW CPM 500 Electronic Peak Pressure Indicator...
