Q
UICK REFERENCE
TPMS D
D
RIVER
The driver display can be mounted on any surface inside the vehicle using the display holder.
1. Ensure the driver display is installed in the driver line of sight.
2. Ensure the display does not impede the driver line of sight or vision.
3. Ensure the display is not installed upside-down.
4. Do not place the display directly at a ventilation outlet or in places where it can limit driver operation
of the vehicle.
5. Always check with the driver for a suitable position for driver display.
6.
Ensure the surface is clean and free from grease before adhering the mounting base.
7. Pull the protective film away from the adhesive surface on the mounting base.
8. Place the mounting base with the adhesive point on the clean surface and press down. Ensure that
the connecting piece of the mounting base is facing you.
Trelleborg Wheel Systems
I
ISPLAY
NSTALLATION

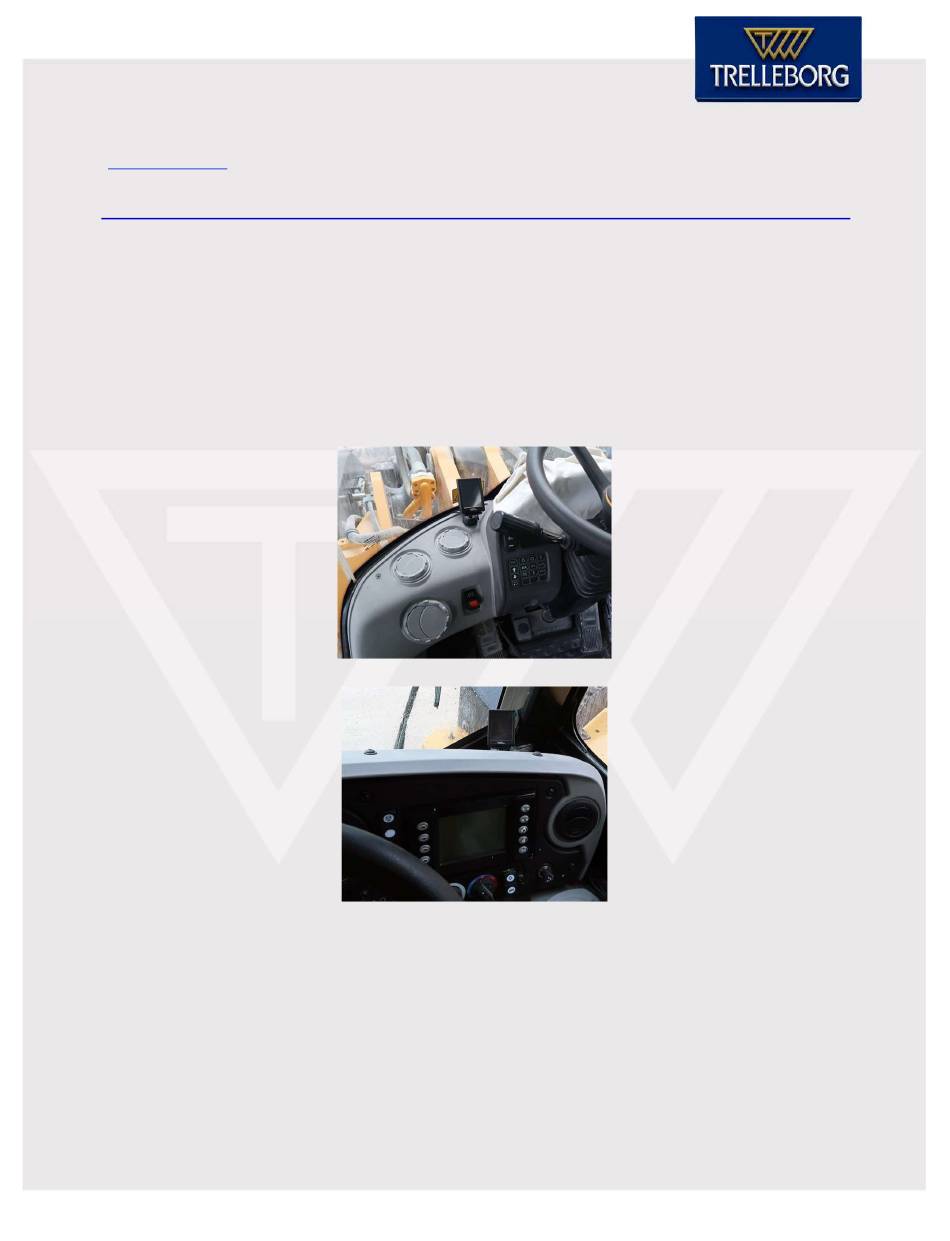

Example of display's position in Volvo wheel loader.
Example of display's position in Caterpillar dump truck.
M
ANUAL
Page 1 of 3
Advertisement
Table of Contents
Summary of Contents for Trelleborg TPMS
- Page 1 UICK REFERENCE TPMS D RIVER ISPLAY NSTALLATION ANUAL The driver display can be mounted on any surface inside the vehicle using the display holder. 1. Ensure the driver display is installed in the driver line of sight. 2. Ensure the display does not impede the driver line of sight or vision.
- Page 2 12. Press the two wings on the side of the display holder together to disconnect the display. 13. Guide the grooves of the driver display out of the lugs of the display holder after the upper part of the display pops out. Trelleborg Wheel Systems Page 2 of 3...
- Page 3 15. Connect the cable of the display holder to the display combi cable (Y-cable) using the securing clip. 16. Ensure that the clip/lug connection is closed securely. Trelleborg Wheel Systems Page 3 of 3...
