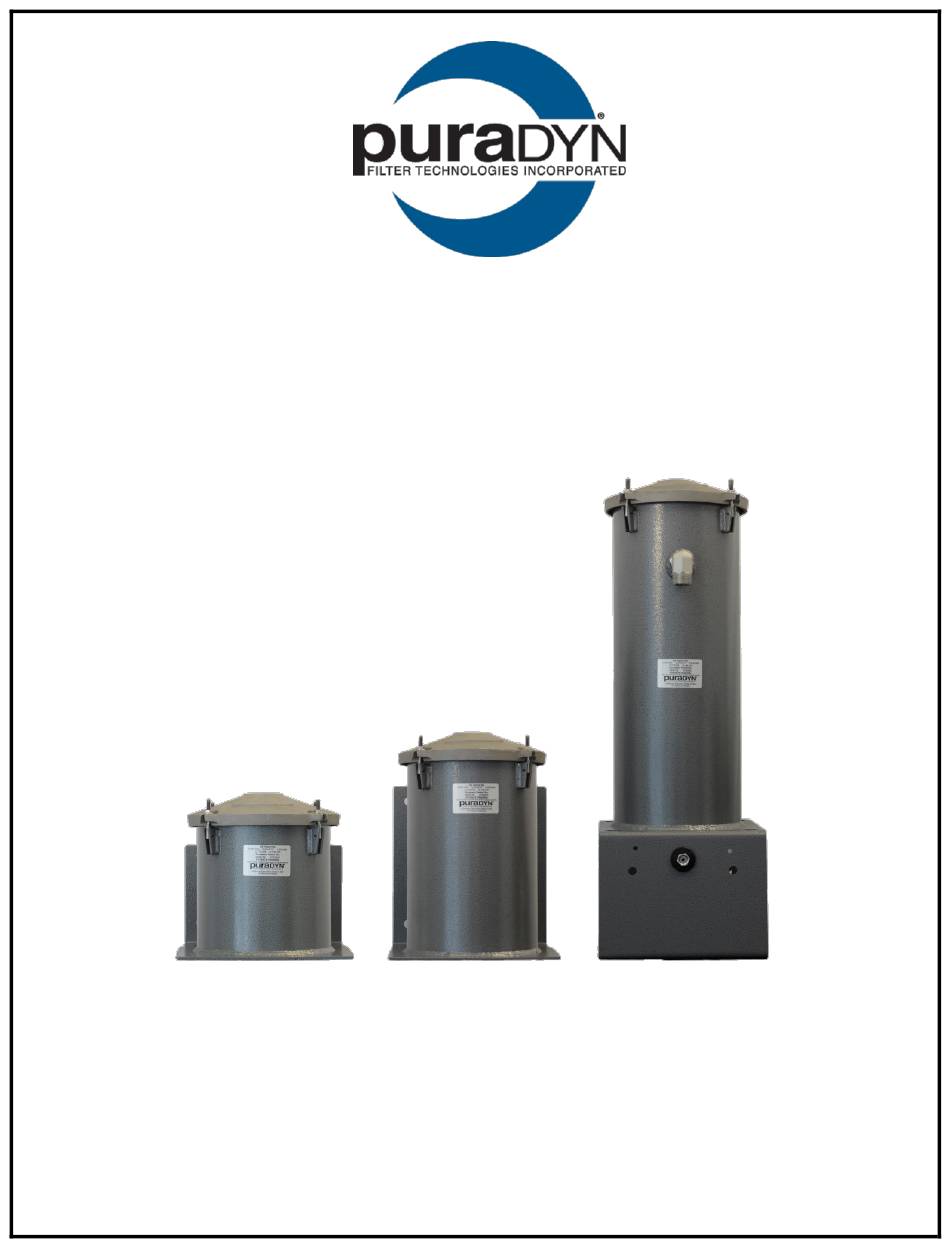

- Page 1 STANDARD INSTALLATION MANUAL pura DYN Bypass Oil Filtration Systems (prev. MTS40) (prev. MTS60) (prev. MTS240) 19-00134_(M25-M85)Standard Installation Manual_Rev4.docx...
-
Page 2: Table Of Contents
Questions & Answers ......................17 Maintenance: ........................19 Filter Element Service Requirements ................20 ® Required Tools and Items for puraDYN System Installation .......... 21 PRODUCT LIMITED WARRANTY ..................22 PRODUCT LIMITED LIABILITY GUARANTEE ..............23 OIL ANALYSIS AND Optimal SERVICE SCHEDULE - RECORDING TEMPLATE .... 24 REGISTER YOUR PRODUCT FOR WARRANTY COVERAGE .......... -
Page 3: Overview
If the oil analysis confirms Note: Use of the oil is still safe to use, there is no need to change it. ® anything other than a genuine pura Filter Element voids the ® pura Product Warranty. Page 3 of 25 19-00134_(M25-M85)Standard Installation Manual_Rev4.Docx... -
Page 4: Sequence ( I ) - Installation Steps Overview
- Installation Steps Overview 1. Check parts list against parts received. 2. Call Puradyn toll-free (in North America) at 1-866-787-2396 or +1 561-547-9499 if any parts are missing or damaged. 3. Read this installation manual to get familiar with the installation process. -
Page 5: System Mounting Requirements
Select thick gage mounting frame location, so the weight of the system doesn’t cause metal fatigue or damage. Keep a safe distance from hot exhaust system components. CAUTION! Avoid high-vibration mounting locations, which can cause the bolts to loosen during operation. Page 5 of 25 19-00134_(M25-M85)Standard Installation Manual_Rev4.Docx... -
Page 6: Mounting Instructions
CAUTION: NOT RECOMMENDED to drill new holes (or weld) into equipment frame rails without first checking with the Original Equipment Manufacturer for approval. Puradyn recommends always try to use existing holes in the frame rail or use of secure clamping devices to mount the system. -
Page 7: Sequence ( Ii ) - Install Oil Supply (Pressure) Line
As long as the oil pressure is under 65 psi, you can install the standard metering jet. If the pressure is above 65 psi, please contact Puradyn technical staff for applicability (please also review metering jet assembly drawing for maintenance procedures). -
Page 8: Install Fittings To Pressure Hose
Puradyn Filter Technologies Incorporated – it is sometimes custom made in specific kits where length of hose has been pre-determined Specifications Use 3/16”I.D., 3000 psi fully braided hose rated for hydraulic oil (Puradyn part# 08- 00003 or Weatherhead # H06904 or Aeroquip # FC350-4 or equivalent). -
Page 9: Routing And Connecting Pressure Hose
Secure the pressure hose with supplied tie wraps to avoid moving or hot parts. ® NOTE: The pura System will not affect engine oil pressure. Page 9 of 25 19-00134_(M25-M85)Standard Installation Manual_Rev4.Docx... -
Page 10: Sequence ( Iii ) - Install Oil Return (Gravity Flow) Line
The Return hose is not included in the standard model, but can be supplied by your dealer, hydraulic parts store, most auto parts stores, and Puradyn Filter Technologies Incorporated – it is sometimes custom made in specific kits where length of hose has been pre-determined. -
Page 11: Unit Return Fitting, Determine Oil Return Location & Hose Routing
Once a Return location is selected, make sure that you have the correct Banjo fitting to attach to the oil pan. If your Banjo fitting size is not listed on web-site, please call Technical Support toll-free (in North America) at 1-866-PURADYN (866-787-2396) or +1 561-547-9499 for assistance. - Page 12 After (pura Bypass Oil Filtration System) installation completed, ® please perform the following System Start-up to ensure the puraDYN System is working properly: 1. Fill equipment with oil type and quantity as specified by OEM. 2. Start the engine, check for leaks.
-
Page 13: Sampling Oil Procedures
Note: After the pura System is installed and start-up validated, please complete Registration Card for warranty coverage and return to Puradyn within 30 days to be in effect. Registration is also available on our website: www.puradyn.com/. Page 13 of 25... -
Page 14: Oil Analysis Data Interpretation
These data must be monitored to fully evaluate the lubrication system. analysis will provide a “picture” and / or warning, if necessary, of any existing or potential problems. Note: Oil analysis is required in order to maintain Puradyn’s warranty ® and ensure your pura System filtered oil meets engine manufacturer’s oil specifications. -
Page 15: Oil Analysis And Service Schedules
Oil Analysis and Service Schedules Replace the puraDYN filter element and perform oil analysis at the oil change intervals recommended by your equipment's Original Engine Manufacturer (OEM). As long as the oil analysis confirms that the oil is suitable for continued use, the oil does not need to be changed. -
Page 16: Troubleshooting
Clogged metering jet Clean jet thoroughly NOTE: If you experience any problem with your system not covered in the above trouble shooting guide, please call Puradyn Tech Support, toll-free, (in North America) at 1-866-787-2396 or +1 561-547-9499. Page 16 of 25... -
Page 17: Questions & Answers
System be used on other equipment besides engines? ® A. Yes. The pura System can be used on many types of hydraulic equipment and compressors as well as most engines that do not use a pressurized sump. Page 17 of 25 19-00134_(M25-M85)Standard Installation Manual_Rev4.Docx... - Page 18 Consumables Not Covered include O-rings, Gaskets and Filter Elements from normal wear”. Please call Puradyn for more details. ® Q. Should I change my existing oil when fitting a pura System to my truck, car, or other equipment? A.
-
Page 19: Maintenance
2) Remove the screen from the supply port (use caution to avoid damaging port threads). 3) Using a Hex Drive remove the metering jet. 4) Reinstall in reverse order from Step 3. Bottom of Housing Unit Page 19 of 25 19-00134_(M25-M85)Standard Installation Manual_Rev4.Docx... -
Page 20: Filter Element Service Requirements
HEAD is securely in place). 8. Rotate the four studs into position to tighten. 9. Tighten the nuts securely (5–8 ft-lbs./torque) using a diagonal (star) pattern as indicated on the Lid. Page 20 of 25 19-00134_(M25-M85)Standard Installation Manual_Rev4.Docx... -
Page 21: Required Tools And Items For Puradyn System Installation
Oil pressure gauge (to verify oil pressure is below 110 psi) Compressed air to blow out pressure hose upon assembling fittings Safety eye protectors (shop type) Protective gloves to handle hot-oil Allen wrenches (U.S. standard sizes) Page 21 of 25 19-00134_(M25-M85)Standard Installation Manual_Rev4.Docx... -
Page 22: Product Limited Warranty
Puradyn, at its option and expense will (i) repair the subject product by your return of the product to Puradyn, (ii) replace the subject product by having the replacement sent to your location, or (iii) refund the purchase price for the product as identified in your proof of purchase. -
Page 23: Product Limited Liability Guarantee
Additionally, within five calendar days following the discovery of such damage, the customer must give written notice to. Puradyn Filter Technologies Incorporated, 2017 High Ridge Road, Boynton Beach, Florida 33426, and allow a service representative of PFTI to (a) examine the damaged engine on which the pura is installed;... -
Page 24: Oil Analysis And Optimal Service Schedule - Recording Template
Change Change Full Flow Filter Date Date Date Date Lab Results will Oil Change Oil Change Oil Change Oil Change indicate New Oil No Change No Change No Change No Change recommendation NOTES Page 24 of 25 19-00134_(M25-M85)Standard Installation Manual_Rev4.Docx... -
Page 25: Register Your Product For Warranty Coverage
Puradyn Filter Technologies Incorporated 2017 High Ridge Road Boynton Beach, Florida 33426 (T) +1 561 547 9499 Toll Free (in N.A.): 1 866-PURADYN (787 2396) (F) +1 561 547 8629 https://www.puradyn.com Protect Your Investment! REGISTER YOUR PRODUCT FOR WARRANTY COVERAGE Online at www.puradyn.com...
