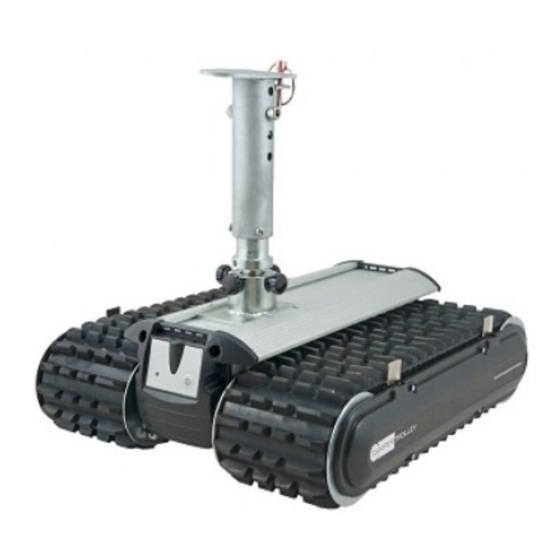

CAMPER TROLLEY (EN)
Model 2500 and Model 1500
Congratulations on the purchase of your new Camper Trolley, and thank you for choosing a product from
Technology
.
It is important that you read this manual thoroughly before using your Camper Trolley. Unauthorized use or maintenance
may result in voidance of the guarantee.
Charge the battery completely before first use!
The Lithium battery installed in this machine has only been charged to part of its capacity (as freight
regulations prescribe). It is vital that you charge the battery to its full capacity before operating the
machine to ensure high performance and long life. Charging for the first time may take 6-8 hours (see
recharging instructions).
Always recharge fully after use until the LED light turns green!
Recharge Periodically!
If the Camper Trolley goes unused for more than two months, it is highly recommended to inspect and
charge the battery until the LED on the charger changes from red to green, in order to maintain maximum
battery life and performance.
Do not store the Camper Trolley in direct sunlight or at high temperatures. High temperatures may drain
the battery quickly.
Failure to follow these instructions will damage the battery and void the battery's warranty!
Batteries: Charging and changing
Battery for Camper Trolley
1. To charge the Camper Trolley battery, connect the charger to the Camper Trolley by placing the
charging plug in the outlet on the back end cover.
2. The battery charger displays a constant red light while charging is in progress. Completion of battery
charging is indicated by a constant green light.
WARNING NOTICE FOR BATTERY
Charging
Outlet
Battery Charger
Charging
Mover-
Battery Charger
Fully Charged
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Mover-Technology CAMPER TROLLEY CT2500
- Page 1 CAMPER TROLLEY (EN) Model 2500 and Model 1500 Mover- Congratulations on the purchase of your new Camper Trolley, and thank you for choosing a product from Technology It is important that you read this manual thoroughly before using your Camper Trolley. Unauthorized use or maintenance may result in voidance of the guarantee.
-
Page 2: Technical Data
Changing the remote control battery Loosen the 4 screws on the back of the remote control and remove the panel. Replace the old battery with a new one of the same type. Remember to protect the environment when disposing of batteries – do not dispose of them with ordinary household waste. -
Page 3: Ec Declaration Of Conformity
Mover-Technology ApS Dagmarsgade 17, DK-6760 Ribe declares that the products Camper Trolley CT1500 and Camper Trolley CT2500 have been manufactured in conformity with the provisions of the following EC directives · 98/37/EC – The Machinery Directive · 99/5/EC – The R&TTE Directive ·... - Page 4 Reference to standards (or parts hereof) applied in connection with this Declaration of Conformity: harmonized standards: EN 953: 2003 Safety of Machinery - Guards – General requirements for the design and construction of fixed and movable guards EN 954-1:2003 Safety of Machinery. Safety-related parts of control systems. Part 1: General principles for design EN 1037:1998 Safety of Machinery –...
- Page 5 Before Use: Preparing the Camper Trolley Checking the status Unpack the Camper Trolley and check that the Camper Trolley is clean and not broken Make sure the Camper Trolley battery is charged according to instructions Mounting the suspension fitting – standard bracket REGIONAL VARIANTS Some countries and makes of caravan may require a special bracket version.
- Page 6 Once the suspension fitting is adjusted and fastened to the side members, tighten the clamp bolt into the side of the inner mounting tube. Mounting of Camper Trolley When mounting the Camper Trolley on the suspension fitting, adjust the height of the suspension fitting using the nose/jockey wheel.
- Page 7 Activating and Pairing the Camper Trolley with the remote control The Camper Trolley comes pre-paired with the remote control. Turn on the Camper Trolley by simply pressing the Start/Stop button for maximum 1-2 seconds. Turn on the remote control by pushing the forward button () once. The Camper Trolley is now ready to use.
- Page 8 Deactivating the Camper Trolley The Camper Trolley shuts off automatically after 3 minutes if the remote control is not activated within that period. If you do not want to wait 3 minutes until the Camper Trolley shuts off automatically, press the start/stop button to disconnect the power manually on the Camper Trolley.
